Makita AN610H Zeichnungen und Teile

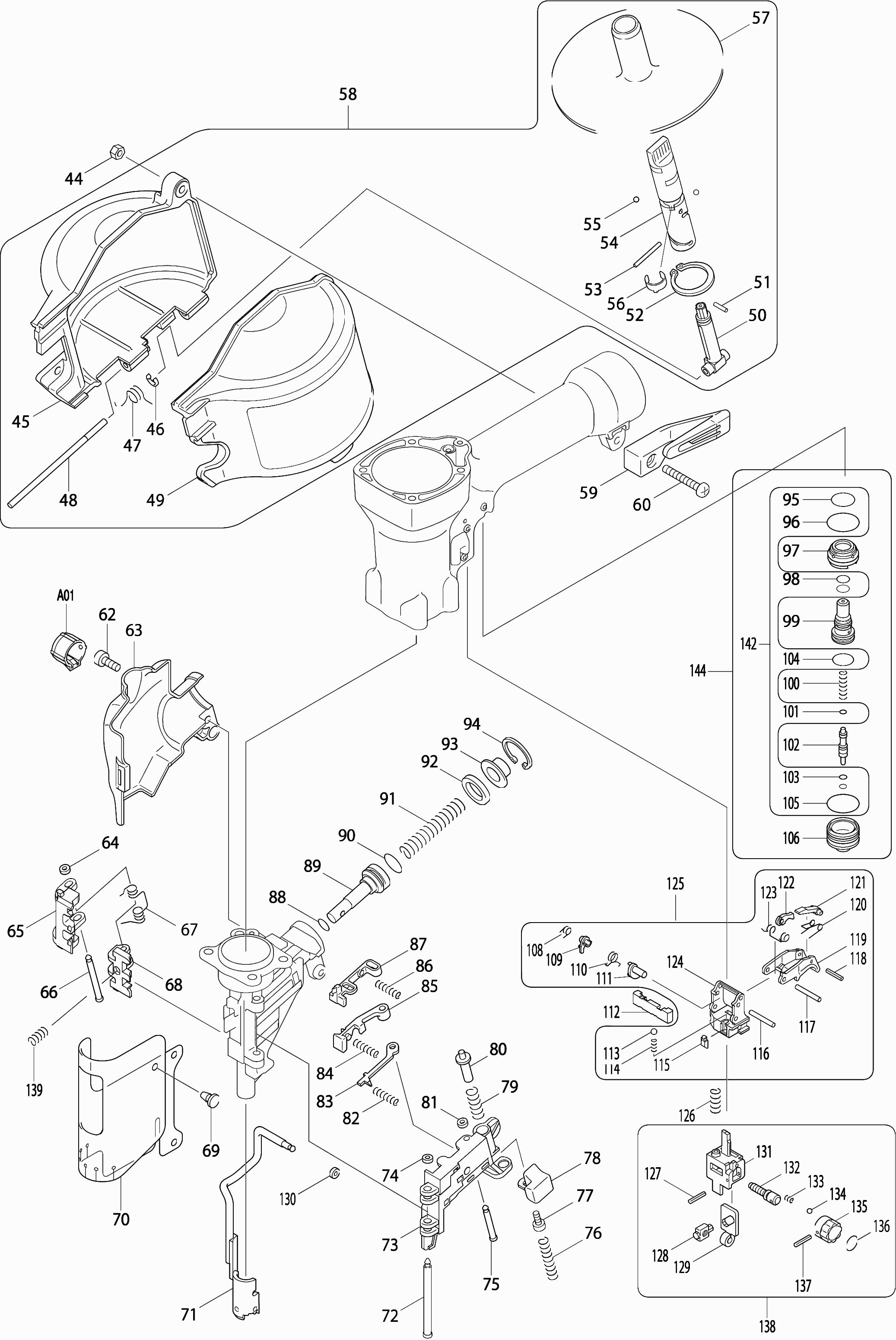

Auf dem Typenschild sollte die Typenbezeichnung AN610H stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt.Zeichnungen der MAKITA AN610H
Teileliste der Makita AN610H
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Inbusbout M5X12 | ||||
| 001 | 922212-4 | Inbusbout M5X12 | € 1.00 | |
| Platte ring 5 | ||||
| 002 | 267343-5 | Platte ring 5 | € 1.00 | |
| Uitlaatkap | ||||
| 003 | 419734-8 | Uitlaatkap | € 4.14 | |
| Filter | ||||
| 004 | 413103-5 | Filter | € 10.96 | |
| Afdichting, deksel- | ||||
| 005 | 419735-6 | Afdichting, deksel- | € 3.27 | |
| Inbusbout 5x35 | ||||
| 006 | 922257-2 | Inbusbout 5x35 | € 1.00 | |
| Bovendeksel | ||||
| 007 | 318109-7 | Bovendeksel | € 86.52 | |
| Drukveer 4 | ||||
| 008 | 233484-9 | Drukveer 4 | € 1.23 | |
| O-ring 5 | ||||
| 009 | 213021-5 | O-ring 5 | € 1.00 | |
| O-ring 50 | ||||
| 010 | 213604-1 | O-ring 50 | € 1.74 | |
| O-ring 30 | ||||
| 011 | 213423-5 | O-ring 30 | € 1.00 | |
| Hoofdklep | ||||
| 012 | 419736-4 | Hoofdklep | € 29.28 | |
| O-ring 42 | ||||
| 013 | 213558-2 | O-ring 42 | € 1.00 | |
| Stootkussen achter | ||||
| 014 | 421983-5 | Stootkussen achter | € 16.31 | |
| O-ring 22,5 | ||||
| 015 | 213967-5 | O-ring 22,5 | € 6.68 | |
| Slagpen set | ||||
| 016 | 135235-5 | Slagpen set | € 153.07 | |
| Slagpen | ||||
| 017 | 168500-7 | Slagpen | € 153.07 | |
| Sluitring 26 | ||||
| 018 | 267342-7 | Sluitring 26 | € 1.00 | |
| Klepstoel | ||||
| 019 | 421981-9 | Klepstoel | € 9.66 | |
| Zylinder | ||||
| 020 | 331740-2 | Zylinder | € 34.87 | |
| O-ring 40 | ||||
| 021 | 213509-5 | O-ring 40 | € 1.00 | |
| O-ring 34 | ||||
| 022 | 213475-6 | O-ring 34 | € 1.00 | |
| Cilinder geleider | ||||
| 023 | 324742-5 | Cilinder geleider | € 32.08 | |
| Stootkussen voor | ||||
| 024 | 421982-7 | Stootkussen voor | € 13.94 | |
| O-ring 38 | ||||
| 025 | 213528-1 | O-ring 38 | € 1.02 | |
| Pakking, bovendeksel- | ||||
| 026 | 162246-7 | Pakking, bovendeksel- | € 7.55 | |
| Label "makita" | ||||
| 027 | 819321-7 | Label "makita" | € 2.83 | |
| Label "makita" | ||||
| 029 | 819322-5 | Label "makita" | € 2.83 | |
| Spannstift | ||||
| 031 | 951078-5 | Spannstift | € 1.00 | |
| Spannstift | ||||
| 032 | 951078-5 | Spannstift | € 1.00 | |
| Spanstift 3-30 | ||||
| 033 | 258029-2 | Spanstift 3-30 | € 1.00 | |
| Borgpen 3x20mm | ||||
| 034 | 951069-6 | Borgpen 3x20mm | € 1.00 | |
| Indicatie label | ||||
| 036 | 816919-1 | Indicatie label | € 2.83 | |
| Machinehuis | ||||
| 036 | 188604-9 | Machinehuis | € 259.55 | |
| O-ring 4 | ||||
| 037 | 213970-6 | O-ring 4 | € 1.00 | |
| Slagpengeleider | ||||
| 038 | 310250-2 | Slagpengeleider | € 153.07 | |
| Inbusbout M6X20 Lf1000 | ||||
| 039 | 922332-4 | Inbusbout M6X20 Lf1000 | € 1.00 | |
| O-ring 36 | ||||
| 040 | 213506-1 | O-ring 36 | € 1.23 | |
| Inlaatdeksel | ||||
| 041 | 318108-9 | Inlaatdeksel | € 20.10 | |
| Kappe | ||||
| 042 | 286280-4 | Kappe | € 1.02 | |
| Insteeknippel Orion | ||||
| 043 | 243105-5 | Insteeknippel Orion | € 16.31 | |
| Moer M5-8 | ||||
| 044 | 264008-0 | Moer M5-8 | € 1.00 | |
| Magazin Zsb | ||||
| 045 | 419737-2 | Magazin Zsb | € 13.94 | |
| Stopring E-3 | ||||
| 046 | 259042-3 | Stopring E-3 | € 1.00 | |
| Torsieveer 8 | ||||
| 047 | 233504-9 | Torsieveer 8 | € 1.23 | |
| Pen 4 | ||||
| 048 | 256773-5 | Pen 4 | € 2.47 | |
| Label, tbv magazijn An610h | ||||
| 049 | 808231-3 | Label, tbv magazijn An610h | € 18.17 | |
| Deksel tbv magazijn compleet | ||||
| 049 | 158936-8 | Deksel tbv magazijn compleet | € 29.28 | |
| As, afstel- | ||||
| 050 | 419747-9 | As, afstel- | € 1.45 | |
| Pen 2,5 | ||||
| 051 | 268166-4 | Pen 2,5 | € 1.00 | |
| Borgring S-25 | ||||
| 052 | 961105-0 | Borgring S-25 | € 1.00 | |
| Pen 2,5 | ||||
| 053 | 268167-2 | Pen 2,5 | € 1.00 | |
| Verstelhuls | ||||
| 054 | 419746-1 | Verstelhuls | € 2.83 | |
| Stalen kogel 3.5 | ||||
| 055 | 216040-0 | Stalen kogel 3.5 | € 1.00 | |
| Blattfeder | ||||
| 056 | 232233-1 | Blattfeder | € 1.00 | |
| Wisselplaat | ||||
| 057 | 419745-3 | Wisselplaat | € 2.11 | |
| Magazijn compleet | ||||
| 058 | 135233-9 | Magazijn compleet | € 57.90 | |
| Haken | ||||
| 059 | 419739-8 | Haken | € 4.14 | |
| Schroef 5x36 | ||||
| 060 | 911258-5 | Schroef 5x36 | € 1.00 | |
| Inbusbout M5X12 | ||||
| 062 | 922212-4 | Inbusbout M5X12 | € 1.00 | |
| Abdeckung | ||||
| 063 | 450828-0 | Abdeckung | € 3.70 | |
| Urethaan ring 3 | ||||
| 064 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Aanvoerklauw f | ||||
| 065 | 310046-1 | Aanvoerklauw f | € 24.09 | |
| Pen 4 | ||||
| 066 | 268027-8 | Pen 4 | € 2.11 | |
| Torsieveer 6 | ||||
| 067 | 231632-4 | Torsieveer 6 | € 2.47 | |
| Aanvoerklauw r | ||||
| 068 | 310186-5 | Aanvoerklauw r | € 20.10 | |
| Rubber pen 9,5 | ||||
| 069 | 421418-6 | Rubber pen 9,5 | € 1.00 | |
| Abdeckhaube | ||||
| 070 | 413127-1 | Abdeckhaube | € 5.30 | |
| Contactarm | ||||
| 071 | 165542-2 | Contactarm | € 50.58 | |
| Pen 5 | ||||
| 072 | 268025-2 | Pen 5 | € 2.83 | |
| Tuer | ||||
| 073 | 310182-3 | Tuer | € 34.87 | |
| Urethaan ring 3 | ||||
| 074 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Pin 4 | ||||
| 075 | 268024-4 | Pin 4 | € 1.74 | |
| Drukveer 5 | ||||
| 076 | 233204-1 | Drukveer 5 | € 1.00 | |
| Zeskantbout M5x10 | ||||
| 077 | 266167-6 | Zeskantbout M5x10 | € 1.00 | |
| Blokkeerhandel | ||||
| 078 | 310050-0 | Blokkeerhandel | € 12.34 | |
| Drukveer 6 | ||||
| 079 | 233201-7 | Drukveer 6 | € 1.00 | |
| Sperrbolzen | ||||
| 080 | 323713-9 | Sperrbolzen | € 2.11 | |
| Urethaan ring 3 | ||||
| 081 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Drukveer 4 | ||||
| 082 | 233101-1 | Drukveer 4 | € 1.00 | |
| Borgklauw | ||||
| 083 | 345758-7 | Borgklauw | € 4.65 | |
| Drukveer 4 | ||||
| 084 | 233101-1 | Drukveer 4 | € 1.00 | |
| Nagelhouder | ||||
| 085 | 310179-2 | Nagelhouder | € 7.55 | |
| Drukveer 4 | ||||
| 086 | 233101-1 | Drukveer 4 | € 1.00 | |
| Arm | ||||
| 087 | 310184-9 | Arm | € 6.68 | |
| O-ring 9 | ||||
| 088 | 213054-0 | O-ring 9 | € 1.00 | |
| Kolben | ||||
| 089 | 324962-1 | Kolben | € 6.68 | |
| O-ring 14 | ||||
| 090 | 213154-6 | O-ring 14 | € 1.00 | |
| Drukveer 9 | ||||
| 091 | 233198-0 | Drukveer 9 | € 1.00 | |
| Rubber ring 16 | ||||
| 092 | 262075-9 | Rubber ring 16 | € 1.00 | |
| Schotelring M5 | ||||
| 093 | 344452-8 | Schotelring M5 | € 3.27 | |
| Nicht bestellbar | ||||
| 094 | 962103-7 | Nicht bestellbar | ||
| O-ring 15 | ||||
| 095 | 213233-0 | O-ring 15 | € 1.00 | |
| O-ring 18 | ||||
| 096 | 213275-4 | O-ring 18 | € 1.00 | |
| Schakelklepgeleiding | ||||
| 097 | 419732-2 | Schakelklepgeleiding | € 32.08 | |
| O-ring 7 | ||||
| 098 | 213968-3 | O-ring 7 | € 1.74 | |
| Regelklep | ||||
| 099 | 419733-0 | Regelklep | € 34.87 | |
| Drukveer 4 | ||||
| 100 | 233485-7 | Drukveer 4 | € 1.45 | |
| O-ring 3 | ||||
| 101 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 3 | ||||
| 101A | 213044-3 | O-ring 3 | € 1.00 | |
| Schakelklepsteel | ||||
| 102 | 324743-3 | Schakelklepsteel | € 5.30 | |
| Nicht bestellbar | ||||
| 102A | 326189-9 | Nicht bestellbar | ||
| O-ring 3 | ||||
| 103 | 213979-8 | O-ring 3 | € 1.45 | |
| O-ring 3 | ||||
| 103A | 213640-7 | O-ring 3 | € 2.11 | |
| O-ring 12,5 | ||||
| 104 | 213185-5 | O-ring 12,5 | € 1.00 | |
| O-ring 18 | ||||
| 105 | 213275-4 | O-ring 18 | € 1.00 | |
| Schakelklephuis | ||||
| 106 | 331741-0 | Schakelklephuis | € 10.96 | |
| Torsieveer 5 | ||||
| 108 | 233501-5 | Torsieveer 5 | € 1.00 | |
| Distanzscheibe | ||||
| 109 | 310199-6 | Distanzscheibe | € 5.30 | |
| Nicht bestellbar | ||||
| 110 | 233502-3 | Nicht bestellbar | ||
| Ontgrendelpal | ||||
| 111 | 310310-0 | Ontgrendelpal | € 5.30 | |
| Schaltstange | ||||
| 112 | 310293-4 | Schaltstange | € 10.96 | |
| Stalen kogel 4 | ||||
| 113 | 216024-8 | Stalen kogel 4 | € 1.00 | |
| Drukveer 2 | ||||
| 114 | 233490-4 | Drukveer 2 | € 1.00 | |
| Afdekplaat tbv startveer | ||||
| 115 | 419743-7 | Afdekplaat tbv startveer | € 1.00 | |
| Pen 3 | ||||
| 116 | 268168-0 | Pen 3 | € 1.00 | |
| Pen 3 | ||||
| 117 | 268168-0 | Pen 3 | € 1.00 | |
| Spanstift 2-12 | ||||
| 118 | 951007-8 | Spanstift 2-12 | € 1.00 | |
| Schakelknop | ||||
| 119 | 310294-2 | Schakelknop | € 20.10 | |
| Torsieveer 4 | ||||
| 120 | 231699-2 | Torsieveer 4 | € 1.00 | |
| Hebel | ||||
| 121 | 310196-2 | Hebel | € 5.30 | |
| Hebel | ||||
| 122 | 310198-8 | Hebel | € 5.30 | |
| Torsieveer 4 | ||||
| 123 | 233503-1 | Torsieveer 4 | € 2.11 | |
| Schakel montageplaat | ||||
| 124 | 419844-1 | Schakel montageplaat | € 4.14 | |
| Schakelknop | ||||
| 125 | 135231-3 | Schakelknop | € 50.58 | |
| Drukveer 6 | ||||
| 126 | 233489-9 | Drukveer 6 | € 1.00 | |
| Spanstift 2-14 | ||||
| 127 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Stelelement | ||||
| 128 | 310201-5 | Stelelement | € 4.65 | |
| Adjusting Plate | ||||
| 129 | 345775-7 | Adjusting Plate | € 2.11 | |
| Urethaan ring 3 | ||||
| 130 | 262120-0 | Urethaan ring 3 | € 1.00 | |
| Stelboek (boven) | ||||
| 131 | 310234-0 | Stelboek (boven) | € 24.09 | |
| As, afsteller- | ||||
| 132 | 324745-9 | As, afsteller- | € 1.74 | |
| Drukveer 2 | ||||
| 133 | 233491-2 | Drukveer 2 | € 1.00 | |
| Stalen kogel 2.3 | ||||
| 134 | 216031-1 | Stalen kogel 2.3 | € 1.00 | |
| Afsteller compleet | ||||
| 135 | 158747-1 | Afsteller compleet | € 1.23 | |
| Spanstift 2-14 | ||||
| 137 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Stelblok compleet | ||||
| 138 | 135232-1 | Stelblok compleet | € 37.67 | |
| Drukveer 3 | ||||
| 139 | 233081-1 | Drukveer 3 | € 1.00 | |
| Cilinder houder | ||||
| 140 | 331739-7 | Cilinder houder | € 8.57 | |
| Revisieset An450/610/620 | ||||
| 141 | 194735-4 | Revisieset An450/610/620 | € 32.08 | |
| Naamplaat "an610h" | ||||
| 143 | 866116-9 | Naamplaat "an610h" | € 2.83 | |
| Schakelklep cmpl. | ||||
| 144 | 135598-9 | Schakelklep cmpl. | € 66.55 | |
