Makita AN711H Zeichnungen und Teile
Genaue Typennummer:
AN711H
AN711H

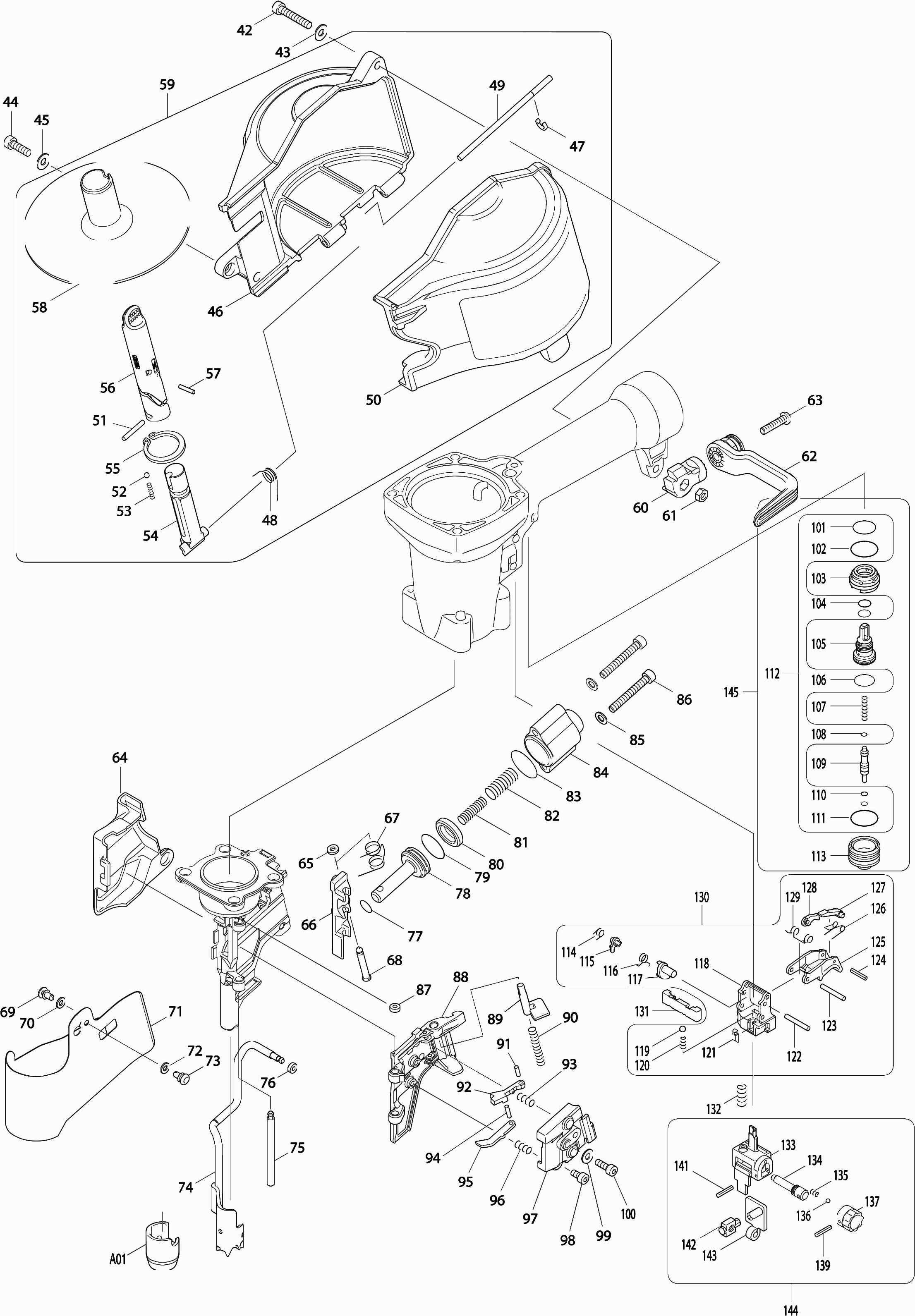

Zeichnungen der MAKITA AN711H
Teileliste der MAKITA AN711H
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Imbusbout M6x30 | ||||
| 001 | 265566-9 | Imbusbout M6x30 | € 0.96 | |
| Bovendeksel compleet | ||||
| 002 | 158219-6 | Bovendeksel compleet | € 72.73 | |
| Filter | ||||
| 003 | 413112-4 | Filter | € 15.64 | |
| Drukveer 4 | ||||
| 004 | 233484-9 | Drukveer 4 | € 1.18 | |
| O-ring 60 | ||||
| 005 | 213668-5 | O-ring 60 | € 0.96 | |
| O-ring 50 | ||||
| 006 | 213612-2 | O-ring 50 | € 0.96 | |
| Hoofdklep | ||||
| 007 | 419842-5 | Hoofdklep | € 30.75 | |
| O-ring 53 | ||||
| 008 | 213657-0 | O-ring 53 | € 0.96 | |
| Stootkussen achter | ||||
| 009 | 424012-3 | Stootkussen achter | € 15.64 | |
| Hoofdklep geleider | ||||
| 010 | 331764-8 | Hoofdklep geleider | € 17.42 | |
| O-ring 67 | ||||
| 011 | 213720-9 | O-ring 67 | € 1.67 | |
| O-ring 26 | ||||
| 012 | 213982-9 | O-ring 26 | € 3.97 | |
| Slagpen | ||||
| 013 | 168439-4 | Slagpen | € 177.36 | |
| Klepstoel | ||||
| 014 | 424013-1 | Klepstoel | € 11.83 | |
| Cilinder houder | ||||
| 015 | 331759-1 | Cilinder houder | € 11.83 | |
| Zylinder | ||||
| 016 | 331763-0 | Zylinder | € 63.80 | |
| O-ring 53 | ||||
| 017 | 213657-0 | O-ring 53 | € 0.96 | |
| O-ring 39 | ||||
| 018 | 213531-2 | O-ring 39 | € 0.96 | |
| Pakking, bovendeksel- | ||||
| 019 | 162254-8 | Pakking, bovendeksel- | € 7.24 | |
| O-Ring 6 An250/Bo3711 | ||||
| 020 | 213045-1 | O-Ring 6 An250/Bo3711 | € 0.96 | |
| Naamplaat "an711h" | ||||
| 021 | 866122-4 | Naamplaat "an711h" | € 2.71 | |
| Revisieset An911h | ||||
| 022 | 194737-0 | Revisieset An911h | € 33.43 | |
| Label "makita" | ||||
| 023 | 819324-1 | Label "makita" | € 8.21 | |
| Label "makita" | ||||
| 025 | 819323-3 | Label "makita" | € 8.21 | |
| Machinehuis | ||||
| 026 | 188603-1 | Machinehuis | € 162.05 | |
| Indicatie label | ||||
| 026 | 816919-1 | Indicatie label | € 2.71 | |
| Cilinder geleider | ||||
| 027 | 331758-3 | Cilinder geleider | € 9.26 | |
| Stootkussen voor | ||||
| 028 | 424011-5 | Stootkussen voor | € 21.11 | |
| O-ring 44 | ||||
| 029 | 213554-0 | O-ring 44 | € 1.39 | |
| O-ring 4 | ||||
| 030 | 213023-1 | O-ring 4 | € 0.96 | |
| Slagpengeleider | ||||
| 031 | 310224-3 | Slagpengeleider | € 376.42 | |
| Inbusschroef m8x30 | ||||
| 032 | 265565-1 | Inbusschroef m8x30 | € 1.18 | |
| Inlaatfilter | ||||
| 033 | 413105-1 | Inlaatfilter | € 2.71 | |
| O-ring 36 | ||||
| 034 | 213506-1 | O-ring 36 | € 1.18 | |
| Inlaatdeksel | ||||
| 035 | 318108-9 | Inlaatdeksel | € 19.27 | |
| Kappe | ||||
| 036 | 286280-4 | Kappe | € 0.97 | |
| Insteeknippel Orion | ||||
| 037 | 243105-5 | Insteeknippel Orion | € 15.64 | |
| Borgpen 3x20mm | ||||
| 038 | 951069-6 | Borgpen 3x20mm | € 0.96 | |
| Spannstift | ||||
| 039 | 951078-5 | Spannstift | € 0.96 | |
| Spannstift | ||||
| 040 | 951078-5 | Spannstift | € 0.96 | |
| Spannstift | ||||
| 041 | 951078-5 | Spannstift | € 0.96 | |
| Inbusbout 5x28 | ||||
| 042 | 265570-8 | Inbusbout 5x28 | € 0.96 | |
| Platte ring 5 | ||||
| 043 | 267343-5 | Platte ring 5 | € 0.96 | |
| Inbusbout m5x16 | ||||
| 044 | 265563-5 | Inbusbout m5x16 | € 0.96 | |
| Platte ring 5 | ||||
| 045 | 267343-5 | Platte ring 5 | € 0.96 | |
| Magazin Zsb | ||||
| 046 | 419853-0 | Magazin Zsb | € 11.83 | |
| Stopring E-3 | ||||
| 047 | 259042-3 | Stopring E-3 | € 0.96 | |
| Torsieveer 7 | ||||
| 048 | 233505-7 | Torsieveer 7 | € 3.13 | |
| Pen 4 | ||||
| 049 | 256773-5 | Pen 4 | € 2.37 | |
| Deksel tbv magazijn compleet | ||||
| 050 | 158920-3 | Deksel tbv magazijn compleet | € 25.39 | |
| Pen 3 | ||||
| 051 | 268181-8 | Pen 3 | € 0.96 | |
| Stalen kogel 3.5 | ||||
| 052 | 216040-0 | Stalen kogel 3.5 | € 0.96 | |
| Drukveer 2 | ||||
| 053 | 233492-0 | Drukveer 2 | € 0.96 | |
| As, afstel- | ||||
| 054 | 419863-7 | As, afstel- | € 1.18 | |
| Borgring S-25 | ||||
| 055 | 961105-0 | Borgring S-25 | € 0.96 | |
| Verstelhuls | ||||
| 056 | 419864-5 | Verstelhuls | € 1.67 | |
| Pen 2,5 | ||||
| 057 | 268169-8 | Pen 2,5 | € 0.96 | |
| Wisselplaat | ||||
| 058 | 419851-4 | Wisselplaat | € 4.45 | |
| Magazijn compleet | ||||
| 059 | 135255-9 | Magazijn compleet | € 55.51 | |
| Haakaansluiting | ||||
| 060 | 162255-6 | Haakaansluiting | € 3.13 | |
| Zeskant moer M5 | ||||
| 061 | 931202-6 | Zeskant moer M5 | € 0.96 | |
| Haken | ||||
| 062 | 168499-6 | Haken | € 7.24 | |
| Schraube | ||||
| 063 | 265176-2 | Schraube | € 0.96 | |
| Abdeckung | ||||
| 064 | 419852-2 | Abdeckung | € 7.24 | |
| Urethaan ring 4 | ||||
| 065 | 262130-7 | Urethaan ring 4 | € 0.96 | |
| Aanvoerklauw | ||||
| 066 | 310231-6 | Aanvoerklauw | € 33.43 | |
| Torsieveer 9 | ||||
| 067 | 233515-4 | Torsieveer 9 | € 2.02 | |
| Pen 4,5 | ||||
| 068 | 268180-0 | Pen 4,5 | € 1.18 | |
| Niete | ||||
| 069 | 255174-4 | Niete | € 0.97 | |
| Sluitring 4 | ||||
| 070 | 941052-1 | Sluitring 4 | € 0.96 | |
| Abdeckhaube | ||||
| 071 | 413113-2 | Abdeckhaube | € 6.40 | |
| Sluitring 4 | ||||
| 072 | 941052-1 | Sluitring 4 | € 0.96 | |
| Niete | ||||
| 073 | 255174-4 | Niete | € 0.97 | |
| Contactarm | ||||
| 074 | 165462-0 | Contactarm | € 45.04 | |
| Pen 5 | ||||
| 075 | 268179-5 | Pen 5 | € 1.18 | |
| Urethaan ring 3 | ||||
| 076 | 262120-0 | Urethaan ring 3 | € 0.96 | |
| O-ring 9 | ||||
| 077 | 213054-0 | O-ring 9 | € 0.96 | |
| Kolben | ||||
| 078 | 324766-1 | Kolben | € 6.40 | |
| O-ring 14 | ||||
| 079 | 213154-6 | O-ring 14 | € 0.96 | |
| Rubber ring 13 | ||||
| 080 | 262129-2 | Rubber ring 13 | € 0.97 | |
| Drukveer 6 | ||||
| 081 | 234007-6 | Drukveer 6 | € 2.02 | |
| Drukveer 9 | ||||
| 082 | 234008-4 | Drukveer 9 | € 1.67 | |
| O-ring 22,4 | ||||
| 083 | 213008-7 | O-ring 22,4 | € 0.97 | |
| Zylinder | ||||
| 084 | 419840-9 | Zylinder | € 1.18 | |
| Sluitring 5 | ||||
| 085 | 267345-1 | Sluitring 5 | € 0.97 | |
| Nicht mehr lieferbar | ||||
| 086 | 265562-7 | Nicht mehr lieferbar | ||
| Urethaan ring 3 | ||||
| 087 | 262120-0 | Urethaan ring 3 | € 0.96 | |
| Tuer | ||||
| 088 | 310317-6 | Tuer | € 112.29 | |
| Blokkeerhandel | ||||
| 089 | 310233-2 | Blokkeerhandel | € 13.85 | |
| Drukveer 5 | ||||
| 090 | 233486-5 | Drukveer 5 | € 1.18 | |
| Pen 2,5 | ||||
| 091 | 268177-9 | Pen 2,5 | € 0.96 | |
| Nagelhouder | ||||
| 092 | 310451-2 | Nagelhouder | € 13.36 | |
| Drukveer 4 | ||||
| 093 | 234009-2 | Drukveer 4 | € 1.67 | |
| Pen 2,5 | ||||
| 094 | 268177-9 | Pen 2,5 | € 0.96 | |
| Borgklauw | ||||
| 095 | 345802-0 | Borgklauw | € 0.97 | |
| Drukveer 5 | ||||
| 096 | 234010-7 | Drukveer 5 | € 0.97 | |
| Deurkap | ||||
| 097 | 419861-1 | Deurkap | € 2.02 | |
| Nicht mehr lieferbar | ||||
| 098 | 922107-1 | Nicht mehr lieferbar | ||
| Sluitring 4 | ||||
| 099 | 941051-3 | Sluitring 4 | € 0.96 | |
| Inbusbout M4x14 | ||||
| 100 | 922122-5 | Inbusbout M4x14 | € 0.96 | |
| O-ring 15 | ||||
| 101 | 213233-0 | O-ring 15 | € 0.96 | |
| O-ring 18 | ||||
| 102 | 213275-4 | O-ring 18 | € 0.96 | |
| Schakelklepgeleiding | ||||
| 103 | 419841-7 | Schakelklepgeleiding | € 28.07 | |
| O-ring 7 | ||||
| 104 | 213968-3 | O-ring 7 | € 1.67 | |
| Regelklep | ||||
| 105 | 419958-6 | Regelklep | € 30.75 | |
| O-ring 12,5 | ||||
| 106 | 213185-5 | O-ring 12,5 | € 0.96 | |
| Drukveer 3 | ||||
| 107 | 234187-8 | Drukveer 3 | € 4.45 | |
| O-ring 3 | ||||
| 108 | 213034-6 | O-ring 3 | € 0.96 | |
| O-ring 3 | ||||
| 108A | 213044-3 | O-ring 3 | € 0.96 | |
| Schakelklepsteel | ||||
| 109 | 324743-3 | Schakelklepsteel | € 5.08 | |
| Nicht mehr lieferbar | ||||
| 109A | 326189-9 | Nicht mehr lieferbar | ||
| O-ring 3 | ||||
| 110 | 213979-8 | O-ring 3 | € 1.39 | |
| O-ring 3 | ||||
| 110A | 213640-7 | O-ring 3 | € 2.02 | |
| O-ring 18 | ||||
| 111 | 213275-4 | O-ring 18 | € 0.96 | |
| Revisieset An911h | ||||
| 112 | 194737-0 | Revisieset An911h | € 33.43 | |
| Schakelklephuis | ||||
| 113 | 331741-0 | Schakelklephuis | € 10.51 | |
| Torsieveer 5 | ||||
| 114 | 233501-5 | Torsieveer 5 | € 0.96 | |
| Distanzscheibe | ||||
| 115 | 310199-6 | Distanzscheibe | € 5.08 | |
| Nicht mehr lieferbar | ||||
| 116 | 233502-3 | Nicht mehr lieferbar | ||
| Ontgrendelpal | ||||
| 117 | 310310-0 | Ontgrendelpal | € 5.08 | |
| Schakel montageplaat | ||||
| 118 | 419844-1 | Schakel montageplaat | € 3.97 | |
| Stalen kogel 4 | ||||
| 119 | 216024-8 | Stalen kogel 4 | € 0.96 | |
| Drukveer 2 | ||||
| 120 | 233490-4 | Drukveer 2 | € 0.96 | |
| Afdekplaat tbv startveer | ||||
| 121 | 419743-7 | Afdekplaat tbv startveer | € 0.96 | |
| Pen 3 | ||||
| 122 | 268168-0 | Pen 3 | € 0.96 | |
| Pen 3 | ||||
| 123 | 268168-0 | Pen 3 | € 0.96 | |
| Spanstift 2-12 | ||||
| 124 | 951007-8 | Spanstift 2-12 | € 0.96 | |
| Schakelknop | ||||
| 125 | 310294-2 | Schakelknop | € 19.27 | |
| Torsieveer 4 | ||||
| 126 | 231699-2 | Torsieveer 4 | € 0.96 | |
| Hebel | ||||
| 127 | 310196-2 | Hebel | € 5.08 | |
| Hebel | ||||
| 128 | 310198-8 | Hebel | € 5.08 | |
| Torsieveer 4 | ||||
| 129 | 233503-1 | Torsieveer 4 | € 2.02 | |
| Nicht mehr lieferbar | ||||
| 130 | 135231-3 | Nicht mehr lieferbar | ||
| Schaltstange | ||||
| 131 | 310293-4 | Schaltstange | € 10.51 | |
| Drukveer 6 | ||||
| 132 | 233489-9 | Drukveer 6 | € 0.96 | |
| Stelblok (boven) | ||||
| 133 | 310227-7 | Stelblok (boven) | € 13.85 | |
| As, afsteller- | ||||
| 134 | 324767-9 | As, afsteller- | € 1.67 | |
| Drukveer 2 | ||||
| 135 | 233491-2 | Drukveer 2 | € 0.96 | |
| Stalen kogel 2.3 | ||||
| 136 | 216031-1 | Stalen kogel 2.3 | € 0.96 | |
| Afsteller compleet | ||||
| 137 | 158747-1 | Afsteller compleet | € 1.18 | |
| Spanstift 2-14 | ||||
| 139 | 951010-9 | Spanstift 2-14 | € 0.96 | |
| Spanstift 2-14 | ||||
| 141 | 951010-9 | Spanstift 2-14 | € 0.96 | |
| Stelelement | ||||
| 142 | 310201-5 | Stelelement | € 5.71 | |
| Klemmplatte | ||||
| 143 | 345801-2 | Klemmplatte | € 2.02 | |
| Afsteller set | ||||
| 144 | 135228-2 | Afsteller set | € 28.07 | |
| Schakelklep cmpl. | ||||
| 145 | 135682-0 | Schakelklep cmpl. | € 63.80 | |
