Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita AR410HR'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

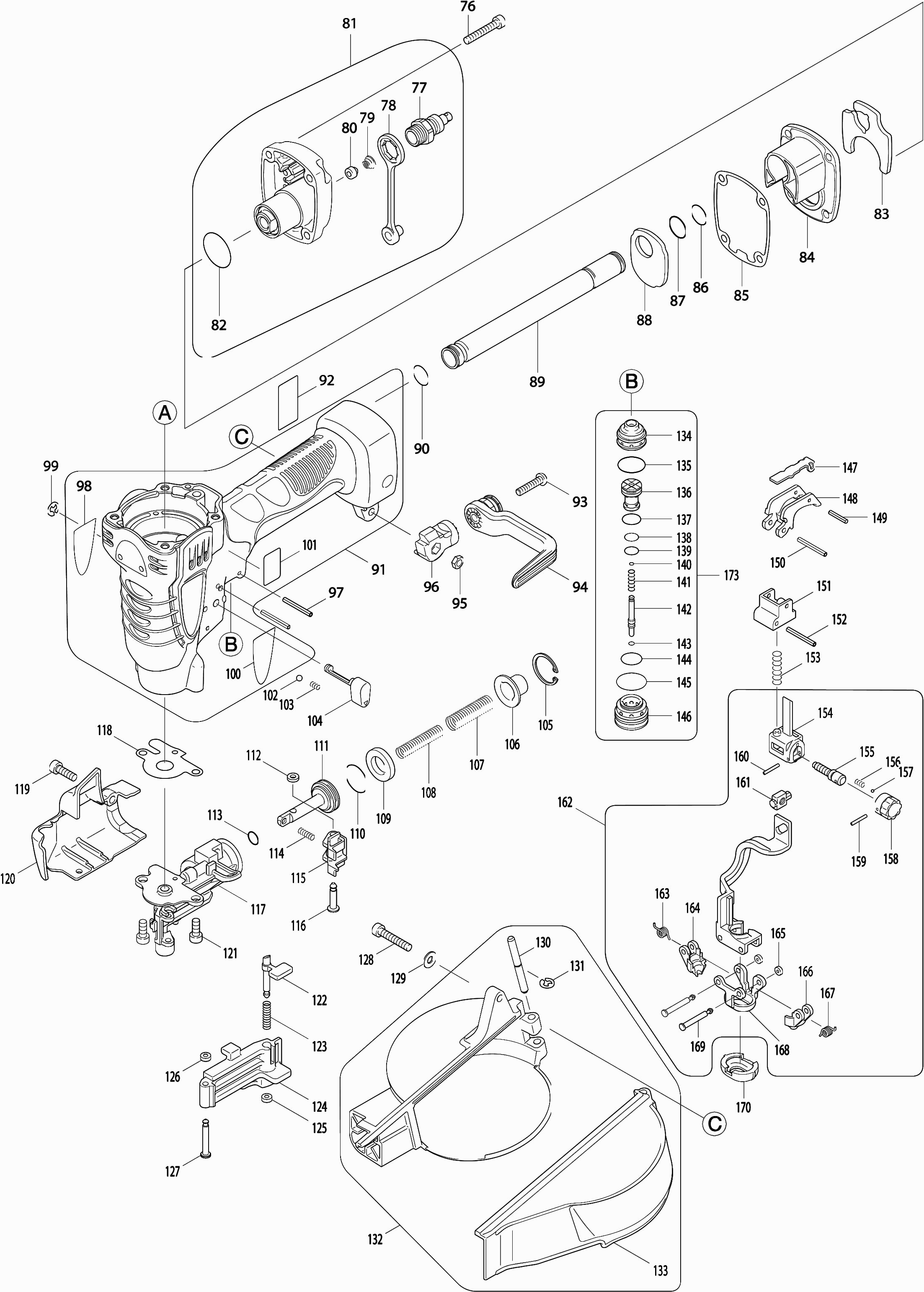

Zeichnungen der Makita AR410HR
Teileliste der Makita AR410HR
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Innensechskantschraube m5x80 | ||||
| 001 | 266431-5 | 2.40 | 2.86 | |
| Indikatoretikett | ||||
| 002 | 816897-5 | 2.40 | 2.86 | |
| Sechskant-Knopfkopfschraube M4x8 | ||||
| 003 | 266430-7 | 4.80 | 5.71 | |
| Knopf | ||||
| 004 | 450334-5 | 2.40 | 2.86 | |
| Oberdeckel | ||||
| 005 | 318233-6 | 48.40 | 57.60 | |
| Konische Druckfeder 10-15 | ||||
| 006 | 233962-9 | 3.60 | 4.28 | |
| O-Ring 6 An250/Bo3711 | ||||
| 007 | 213045-1 | 1.00 | 1.19 | |
| Schaltventil | ||||
| 008 | 162263-7 | 9.60 | 11.42 | |
| Flache Unterlegscheibe 19 | ||||
| 009 | 267365-5 | 1.20 | 1.43 | |
| Stoßdämpfer hinten | ||||
| 010 | 424149-6 | 13.20 | 15.71 | |
| O-Ring 22 | ||||
| 011 | 213373-4 | 1.20 | 1.43 | |
| Unterlegscheibe | ||||
| 012 | 424072-5 | 8.40 | 10.00 | |
| Druckfeder 4 | ||||
| 013 | 234079-1 | 1.00 | 1.19 | |
| O-Ring 54 | ||||
| 014 | 213496-8 | 2.40 | 2.86 | |
| Zylinderhalter | ||||
| 015 | 331851-3 | 23.10 | 27.49 | |
| O-Ring 47 | ||||
| 016 | 213145-7 | 4.80 | 5.71 | |
| O-Ring 40 | ||||
| 017 | 213143-1 | 3.60 | 4.28 | |
| HAUPTVENTIL | ||||
| 018 | 450306-0 | 19.80 | 23.56 | |
| O-Ring 45 | ||||
| 019 | 213144-9 | 2.40 | 2.86 | |
| Gummiring 16 | ||||
| 020 | 262146-2 | 7.20 | 8.57 | |
| O-Ring 17 | ||||
| 021 | 213265-7 | 1.00 | 1.19 | |
| O-Ring 18 | ||||
| 022 | 213275-4 | 1.00 | 1.19 | |
| Gummiring 16 | ||||
| 023 | 262145-4 | 7.20 | 8.57 | |
| Kolbenkappe | ||||
| 024 | 324951-6 | 15.40 | 18.33 | |
| Stoßdämpfer hinten | ||||
| 025 | 424151-9 | 9.60 | 11.42 | |
| O-Ring 11 | ||||
| 026 | 213140-7 | 4.80 | 5.71 | |
| SCHROEFBIT PH2 AR410HR | ||||
| 027 | 195873-5 | 62.00 | 73.78 | |
| Urethanring | ||||
| 027A | 424168-2 | 8.40 | 10.00 | |
| Hauptkolben | ||||
| 028 | 325592-1 | 81.40 | 96.87 | |
| Stift 3 | ||||
| 029 | 268227-0 | 4.80 | 5.71 | |
| O-Ring 7 | ||||
| 030 | 213026-5 | 1.00 | 1.19 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 031 | 162260-3 | -1.00 | -1.19 | |
| Abstandhalter 'Oberdeckel' | ||||
| 032 | 318859-4 | 50.60 | 60.21 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 033 | 162260-3 | -1.00 | -1.19 | |
| Dichtung, Zylinder | ||||
| 034 | 424073-3 | 10.80 | 12.85 | |
| Außenzylinder | ||||
| 035 | 450304-4 | 18.70 | 22.25 | |
| O-Ring 54 | ||||
| 036 | 213496-8 | 2.40 | 2.86 | |
| O-Ring 31,5 | ||||
| 037 | 213497-6 | 1.20 | 1.43 | |
| Verteiler | ||||
| 038 | 450303-6 | 18.70 | 22.25 | |
| O-Ring 45 | ||||
| 039 | 213495-0 | 1.20 | 1.43 | |
| O-Ring 45 | ||||
| 040 | 213495-0 | 1.20 | 1.43 | |
| Gummiring 23 | ||||
| 041 | 262140-4 | 2.40 | 2.86 | |
| O-Ring 25 | ||||
| 042 | 213987-9 | 1.00 | 1.19 | |
| Zylinder | ||||
| 043 | 331845-8 | 55.00 | 65.45 | |
| O-Ring 30 | ||||
| 044 | 213989-5 | 1.00 | 1.19 | |
| Stoßring | ||||
| 045 | 424171-3 | 18.70 | 22.25 | |
| Führung für Puffer | ||||
| 046 | 324949-3 | 26.40 | 31.42 | |
| O-Ring 12,5 | ||||
| 047 | 213185-5 | 1.20 | 1.43 | |
| Stoßfänger vorne, komplett | ||||
| 048 | 135211-9 | 48.40 | 57.60 | |
| O-Ring 12 | ||||
| 050 | 213118-0 | 1.00 | 1.19 | |
| O-Ring 45 | ||||
| 051 | 213495-0 | 1.20 | 1.43 | |
| Äußerer Verteiler | ||||
| 052 | 450302-8 | 10.80 | 12.85 | |
| O-Ring 31,5 Ar410/An510H A | ||||
| 053 | 213990-0 | 1.00 | 1.19 | |
| O-Ring 17 | ||||
| 054 | 213261-5 | 2.40 | 2.86 | |
| Innere Verteiler | ||||
| 055 | 450301-0 | 14.30 | 17.02 | |
| O-Ring 16 | ||||
| 056 | 213223-3 | 1.00 | 1.19 | |
| Kugellager 689zz | ||||
| 057 | 211099-2 | 7.20 | 8.57 | |
| Zylinderdeckel "oben" | ||||
| 058 | 450300-2 | 28.60 | 34.03 | |
| O-Ring 9 | ||||
| 059 | 213062-1 | 1.00 | 1.19 | |
| Drehkern | ||||
| 060 | 324855-2 | 118.80 | 141.37 | |
| Flügel | ||||
| 061 | 413117-4 | 10.80 | 12.85 | |
| Sprengring 2,5-5 | ||||
| 062 | 258024-2 | 1.00 | 1.19 | |
| Komplette Trommel | ||||
| 063 | 135193-5 | 155.10 | 184.57 | |
| Sprengring 2,5-5 | ||||
| 064 | 258024-2 | 1.00 | 1.19 | |
| O-Ring 9 | ||||
| 065 | 213062-1 | 1.00 | 1.19 | |
| Zylinderdeckel, unten | ||||
| 066 | 450299-1 | 28.60 | 34.03 | |
| O-Ring 35 | ||||
| 067 | 213991-8 | 1.00 | 1.19 | |
| Kugellager 689zz | ||||
| 068 | 211099-2 | 7.20 | 8.57 | |
| Komplette Luftmotor-Einheit | ||||
| 069 | 135194-3 | 376.20 | 447.68 | |
| Unterlegscheibe 15 Btw200 | ||||
| 070 | 267215-4 | 1.20 | 1.43 | |
| Zahnrad 21 | ||||
| 071 | 227186-7 | 2.40 | 2.86 | |
| Getriebe 10 | ||||
| 072 | 227187-5 | 1.20 | 1.43 | |
| Zahnrad 44 | ||||
| 073 | 227185-9 | 20.90 | 24.87 | |
| Kompletter Getriebeträger | ||||
| 074 | 158512-8 | 15.40 | 18.33 | |
| Kugellager 6001llu | ||||
| 075 | 211138-8 | 4.80 | 5.71 | |
| Innensechskantschraube M5x30 | ||||
| 076 | 922252-2 | 1.00 | 1.19 | |
| Stecker (1) | ||||
| 077 | 243106-3 | 12.10 | 14.40 | |
| Abdeckung 9 | ||||
| 078 | 286281-2 | 2.40 | 2.86 | |
| Druckfeder 5-10 | ||||
| 079 | 233961-1 | 3.60 | 4.28 | |
| Dichtung | ||||
| 080 | 424075-9 | 6.00 | 7.14 | |
| Ansaugabdeckung komplett | ||||
| 081 | 135190-1 | 88.00 | 104.72 | |
| O-Ring 25 | ||||
| 082 | 213987-9 | 1.00 | 1.19 | |
| Filter | ||||
| 083 | 413119-0 | 11.00 | 13.09 | |
| Abstandshalter für Einlassabdeckung | ||||
| 084 | 450311-7 | 4.80 | 5.71 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 085 | 162261-1 | -1.00 | -1.19 | |
| O-Ring 14 | ||||
| 086 | 213162-7 | 1.00 | 1.19 | |
| O-Ring 14 | ||||
| 087 | 213154-6 | 1.00 | 1.19 | |
| Einlassfilter | ||||
| 088 | 413124-7 | 4.80 | 5.71 | |
| Stahl 13 | ||||
| 089 | 331803-4 | 9.60 | 11.42 | |
| O-Ring 14 | ||||
| 090 | 213162-7 | 1.00 | 1.19 | |
| Gehäuse | ||||
| 091 | 188677-2 | 155.10 | 184.57 | |
| Typenschild "ar410hr" | ||||
| 092 | 866088-8 | 3.60 | 4.28 | |
| Schraube | ||||
| 093 | 265176-2 | 1.20 | 1.43 | |
| Haken | ||||
| 094 | 419843-3 | 3.60 | 4.28 | |
| Sechskantmutter M5 | ||||
| 095 | 931202-6 | 1.00 | 1.19 | |
| Hakenverbindung | ||||
| 096 | 162255-6 | 3.60 | 4.28 | |
| Verriegelungsstift 3-28 | ||||
| 097 | 951075-1 | 1.00 | 1.19 | |
| Etikett "makita" | ||||
| 098 | 819330-6 | 6.00 | 7.14 | |
| Sprengring E-4 | ||||
| 099 | 961011-9 | 1.00 | 1.19 | |
| Etikett "makita" | ||||
| 100 | 819331-4 | 6.00 | 7.14 | |
| Indikatoretikett | ||||
| 101 | 816918-3 | 2.40 | 2.86 | |
| Stahlkugel 4 | ||||
| 102 | 216008-6 | 1.00 | 1.19 | |
| Druckfeder 3 An935 A | ||||
| 103 | 232417-1 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 104 | 162189-3 | 7.20 | 8.57 | |
| Seeger-Ring R24 | ||||
| 105 | 962113-4 | 1.00 | 1.19 | |
| Cup Ring | ||||
| 106 | 345781-2 | 2.40 | 2.86 | |
| Druckfeder 10 | ||||
| 107 | 234046-6 | 4.80 | 5.71 | |
| Druckfeder 9 | ||||
| 108 | 234045-8 | 4.80 | 5.71 | |
| Gummiring 14 | ||||
| 109 | 262123-4 | 2.40 | 2.86 | |
| O-Ring 19 | ||||
| 110 | 213971-4 | 2.40 | 2.86 | |
| Kolben | ||||
| 111 | 324854-4 | 9.60 | 11.42 | |
| Urethanring 4 | ||||
| 112 | 262130-7 | 1.20 | 1.43 | |
| O-Ring 8 | ||||
| 113 | 213007-9 | 1.00 | 1.19 | |
| Druckfeder 3 | ||||
| 114 | 234042-4 | 2.40 | 2.86 | |
| Vorschubklaue | ||||
| 115 | 310246-3 | 11.00 | 13.09 | |
| Stift 4,5 | ||||
| 116 | 268193-1 | 3.60 | 4.28 | |
| Vollständiger Stanzführer | ||||
| 117 | 158515-2 | 155.10 | 184.57 | |
| Dichtung, Schlagführung- | ||||
| 118 | 162262-9 | 6.00 | 7.14 | |
| Schraube 5X16 JR3051T A | ||||
| 119 | 265C32-4 | 1.00 | 1.19 | |
| Abdeckung | ||||
| 120 | 451254-6 | 3.60 | 4.28 | |
| Inbusschraube M5x12 Mit Flansch | ||||
| 121 | 922212-4 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 122 | 310217-0 | 7.20 | 8.57 | |
| Druckfeder 5 | ||||
| 123 | 234003-4 | 2.40 | 2.86 | |
| Tuer | ||||
| 124 | 419814-0 | 2.40 | 2.86 | |
| Urethanring 3 | ||||
| 125 | 262120-0 | 1.20 | 1.43 | |
| Urethanring 3 | ||||
| 126 | 262120-0 | 1.20 | 1.43 | |
| Stift 4 | ||||
| 127 | 268174-5 | 3.60 | 4.28 | |
| Innensechskantschraube 5x28 | ||||
| 128 | 922246-7 | 1.00 | 1.19 | |
| Flache Unterlegscheibe 5 | ||||
| 129 | 267343-5 | 1.00 | 1.19 | |
| Stift 5 | ||||
| 130 | 256774-3 | 2.40 | 2.86 | |
| Sprengring E-4 | ||||
| 131 | 961011-9 | 1.00 | 1.19 | |
| Magazin komplett | ||||
| 132 | 135259-1 | 40.70 | 48.43 | |
| Magazin komplett | ||||
| 133 | 135259-1 | 40.70 | 48.43 | |
| Label, für Lager Ar410hr | ||||
| 133A | 808205-4 | 16.50 | 19.64 | |
| Wechselventilführung | ||||
| 134 | 450788-6 | 24.20 | 28.80 | |
| O-Ring 18 | ||||
| 135 | 213275-4 | 1.00 | 1.19 | |
| Regelventil | ||||
| 136 | 450310-9 | 13.20 | 15.71 | |
| O-Ring 11 | ||||
| 137 | 213134-2 | 1.00 | 1.19 | |
| O-Ring 8 | ||||
| 138 | 213984-5 | 1.00 | 1.19 | |
| O-Ring 8 | ||||
| 139 | 213985-3 | 2.40 | 2.86 | |
| O-Ring 2 | ||||
| 140 | 213986-1 | 1.00 | 1.19 | |
| Druckfeder 3 | ||||
| 141 | 234081-4 | 1.20 | 1.43 | |
| Schaltventilschaft | ||||
| 142 | 325875-9 | 6.38 | 7.59 | |
| O-Ring 3 | ||||
| 143 | 213034-6 | 1.00 | 1.19 | |
| O-Ring 13,5 | ||||
| 144 | 213187-1 | 1.20 | 1.43 | |
| O-Ring 20 | ||||
| 145 | 213310-8 | 1.20 | 1.43 | |
| Schaltventilgehäuse | ||||
| 146 | 450308-6 | 16.03 | 19.08 | |
| Sperrbolzen | ||||
| 147 | 344265-7 | 1.20 | 1.43 | |
| Schalterknopf | ||||
| 148 | 450344-2 | 4.80 | 5.71 | |
| Spannstift 2,5-16 | ||||
| 149 | 258004-8 | 1.00 | 1.19 | |
| Verriegelungsstift 3-28 | ||||
| 150 | 951075-1 | 1.00 | 1.19 | |
| Halter | ||||
| 151 | 450314-1 | 2.40 | 2.86 | |
| Verriegelungsstift 3-28 | ||||
| 152 | 951075-1 | 1.00 | 1.19 | |
| Druckfeder 6 | ||||
| 153 | 234044-0 | 2.40 | 2.86 | |
| Stopper | ||||
| 154 | 310247-1 | 14.30 | 17.02 | |
| Achse, Regler | ||||
| 155 | 324745-9 | 2.40 | 2.86 | |
| Druckfeder 2 | ||||
| 156 | 233491-2 | 1.20 | 1.43 | |
| Stahlkugel 2.3 | ||||
| 157 | 216031-1 | 1.00 | 1.19 | |
| Kompletter Einsteller | ||||
| 158 | 158747-1 | 1.20 | 1.43 | |
| Spannstift 2-14 | ||||
| 159 | 951010-9 | 1.00 | 1.19 | |
| Spannstift 2-14 | ||||
| 160 | 951010-9 | 1.00 | 1.19 | |
| Stellelement | ||||
| 161 | 310201-5 | 6.00 | 7.14 | |
| Kontaktarm, komplett | ||||
| 162 | 135301-8 | 112.20 | 133.52 | |
| Torsionsfeder 4 | ||||
| 163 | 233511-2 | 2.40 | 2.86 | |
| Backenfutter | ||||
| 164 | 310222-7 | 11.00 | 13.09 | |
| Unterlegscheibe | ||||
| 165 | 261118-4 | 1.00 | 1.19 | |
| Backenfutter | ||||
| 166 | 310221-9 | 11.00 | 13.09 | |
| Torsionsfeder 4 | ||||
| 167 | 233511-2 | 2.40 | 2.86 | |
| Kontaktpunkt | ||||
| 168 | 310220-1 | 10.80 | 12.85 | |
| Stift 3,5 | ||||
| 169 | 268173-7 | 3.60 | 4.28 | |
| Nasengummi | ||||
| 170 | 424005-0 | 2.40 | 2.86 | |
| Überarbeitungskit Ar410hr | ||||
| 171 | 194738-8 | 23.10 | 27.49 | |
| Schaltventil komplett | ||||
| 173 | 135212-7 | 45.10 | 53.67 | |
