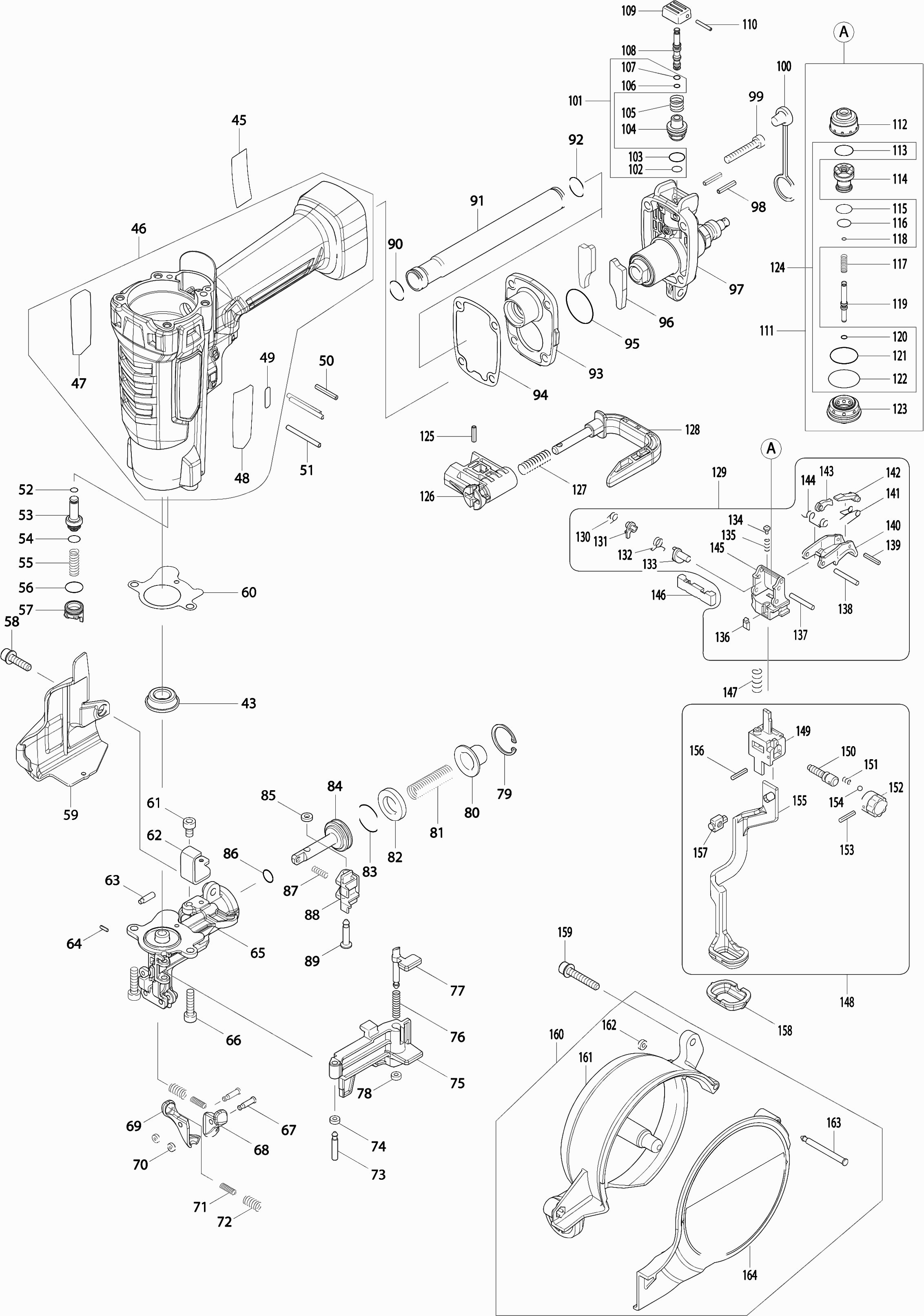

Makita AR411HR Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung AR411HR stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt.Zeichnungen der MAKITA AR411HR
Teileliste der Makita AR411HR
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Nicht bestellbar | ||||
| 001 | 266802-6 | Nicht bestellbar | ||
| Indicatie label | ||||
| 002 | 800L10-7 | Indicatie label | € 2.83 | |
| Bovendeksel | ||||
| 003 | 319389-8 | Bovendeksel | € 32.08 | |
| Verstelknop Ar411Hr | ||||
| 004 | 310531-4 | Verstelknop Ar411Hr | € 10.96 | |
| Verstelknop Basisplaat | ||||
| 005 | 310532-2 | Verstelknop Basisplaat | € 12.34 | |
| Verstelknopplaat | ||||
| 006 | 310530-6 | Verstelknopplaat | € 13.94 | |
| O-Ring 27 | ||||
| 007 | 213699-4 | O-Ring 27 | € 1.00 | |
| Klepstoel Ar411Hr | ||||
| 008 | 424535-1 | Klepstoel Ar411Hr | € 3.70 | |
| Pakking, Bovendeksel Ar411Hr | ||||
| 009 | 162364-1 | Pakking, Bovendeksel Ar411Hr | € 4.65 | |
| O-ring 35 | ||||
| 010 | 213460-9 | O-ring 35 | € 1.23 | |
| D-Ring 34 Ar411Hr | ||||
| 011 | 424536-9 | D-Ring 34 Ar411Hr | € 1.23 | |
| O-ring 23 | ||||
| 012 | 213393-8 | O-ring 23 | € 1.00 | |
| O-ring 9 | ||||
| 013 | 213062-1 | O-ring 9 | € 1.00 | |
| Schakelklep Bus Ar411Hr | ||||
| 014 | 326254-4 | Schakelklep Bus Ar411Hr | € 3.27 | |
| Schakelklep Geleider Ar411Hr | ||||
| 015 | 412133-3 | Schakelklep Geleider Ar411Hr | € 14.45 | |
| O-ring 9 | ||||
| 016 | 213062-1 | O-ring 9 | € 1.00 | |
| O-ring 7 | ||||
| 017 | 213011-8 | O-ring 7 | € 1.00 | |
| O-ring 3 | ||||
| 018 | 213034-6 | O-ring 3 | € 1.00 | |
| Schakelklep Steel Ar411Hr | ||||
| 019 | 326231-6 | Schakelklep Steel Ar411Hr | € 5.30 | |
| Drukveer 4 | ||||
| 020 | 234079-1 | Drukveer 4 | € 1.00 | |
| Afstandhouder "bovendeksel" | ||||
| 021 | 318949-3 | Afstandhouder "bovendeksel" | € 54.17 | |
| Pakking, Bovendeksel- Ar411Hr | ||||
| 022 | 162348-9 | Pakking, Bovendeksel- Ar411Hr | € 2.11 | |
| Drukveer 37 Ar411Hr | ||||
| 023 | 234272-7 | Drukveer 37 Ar411Hr | € 2.83 | |
| Hoofdklep | ||||
| 024 | 326242-1 | Hoofdklep | € 18.17 | |
| O-Ring 41 | ||||
| 025 | 213689-7 | O-Ring 41 | € 1.00 | |
| O-Ring 34 | ||||
| 026 | 213339-4 | O-Ring 34 | € 1.00 | |
| Zuiger Ar411hr | ||||
| 027 | 326241-3 | Zuiger Ar411hr | € 13.94 | |
| Zuiger Bescherming Ar411Hr | ||||
| 028 | 424534-3 | Zuiger Bescherming Ar411Hr | € 3.27 | |
| O-ring 16 | ||||
| 029 | 213223-3 | O-ring 16 | € 1.00 | |
| O-Ring 25 | ||||
| 030 | 213691-0 | O-Ring 25 | € 1.00 | |
| O-Ring 25 | ||||
| 031 | 213777-0 | O-Ring 25 | € 1.00 | |
| Cilinderplaat | ||||
| 032 | 332089-3 | Cilinderplaat | € 10.96 | |
| Cilinderplaat Compleet AR411HR | ||||
| 032 | 126363-7 | Cilinderplaat Compleet AR411HR | € 16.31 | |
| O-ring 38 | ||||
| 033 | 213508-7 | O-ring 38 | € 1.23 | |
| O-ring 42 | ||||
| 034 | 213558-2 | O-ring 42 | € 1.00 | |
| Motorhuis Ar411hr | ||||
| 035 | 332048-7 | Motorhuis Ar411hr | € 20.10 | |
| O-ring 40 | ||||
| 036 | 213509-5 | O-ring 40 | € 1.00 | |
| Cilinder Ar411hr | ||||
| 037 | 332047-9 | Cilinder Ar411hr | € 16.31 | |
| Afdichtingsring Ar411Hr | ||||
| 038 | 424533-5 | Afdichtingsring Ar411Hr | € 8.57 | |
| Stootkussen achter Ar411Hr | ||||
| 039 | 424532-7 | Stootkussen achter Ar411Hr | € 2.11 | |
| Motor, Lucht Compleet Ar411Hr | ||||
| 040 | 141822-0 | Motor, Lucht Compleet Ar411Hr | € 352.72 | |
| O-Ring 29 | ||||
| 041 | 213690-2 | O-Ring 29 | € 1.00 | |
| Schroefbit PH2 | ||||
| 042 | 197776-9 | Schroefbit PH2 | € 29.16 | |
| Stootkussen Voor, Ar411Hr | ||||
| 043 | 424531-9 | Stootkussen Voor, Ar411Hr | € 6.68 | |
| Revisieset Ar411Hr | ||||
| 044 | 196169-7 | Revisieset Ar411Hr | € 6.68 | |
| Typenschild | ||||
| 045 | 851S66-5 | Typenschild | € 2.83 | |
| Behuizing Ar411Hr | ||||
| 046 | 183C37-1 | Behuizing Ar411Hr | € 161.05 | |
| Label Makita logo rechts | ||||
| 047 | 809H40-1 | Label Makita logo rechts | € 4.14 | |
| Label Makita logo links | ||||
| 048 | 809H39-6 | Label Makita logo links | € 4.14 | |
| Label, indicatie Ar411hr | ||||
| 049 | 808D53-5 | Label, indicatie Ar411hr | € 2.83 | |
| Borgpen 3x20mm | ||||
| 050 | 951069-6 | Borgpen 3x20mm | € 1.00 | |
| Spannstift | ||||
| 051 | 951078-5 | Spannstift | € 1.00 | |
| O-Ring 4 | ||||
| 052 | 213770-4 | O-Ring 4 | € 1.00 | |
| Uitlaatklepsteller Ar411Hr | ||||
| 053 | 326238-2 | Uitlaatklepsteller Ar411Hr | € 4.14 | |
| O-ring 6 | ||||
| 054 | 213771-2 | O-ring 6 | € 1.00 | |
| Drukveer 6 Ar411Hr | ||||
| 055 | 234271-9 | Drukveer 6 Ar411Hr | € 1.00 | |
| O-ring 10 | ||||
| 056 | 213070-2 | O-ring 10 | € 1.00 | |
| Uitlaatbus | ||||
| 057 | 454159-9 | Uitlaatbus | € 4.14 | |
| Inbusbout M5X20 | ||||
| 058 | 922234-4 | Inbusbout M5X20 | € 1.00 | |
| Deksel, Contactarm- Ar411Hr | ||||
| 059 | 456358-9 | Deksel, Contactarm- Ar411Hr | € 7.55 | |
| Slagpengeleiderpakking Ar411Hr | ||||
| 060 | 162347-1 | Slagpengeleiderpakking Ar411Hr | € 1.45 | |
| Inbusschroef M5 x 95 mm | ||||
| 061 | 922202-7 | Inbusschroef M5 x 95 mm | € 1.00 | |
| Afstandhouder Ar411Hr | ||||
| 062 | 346645-3 | Afstandhouder Ar411Hr | € 3.27 | |
| Kraagpin | ||||
| 063 | 256547-4 | Kraagpin | € 1.00 | |
| Spanstift 2-8 | ||||
| 064 | 951001-0 | Spanstift 2-8 | € 1.00 | |
| Slagpengeleider Compl Ar411Hr | ||||
| 065 | 141817-3 | Slagpengeleider Compl Ar411Hr | € 185.01 | |
| Inbusbout 5x20 | ||||
| 066 | 922232-8 | Inbusbout 5x20 | € 1.02 | |
| Pin 3,5 | ||||
| 067 | 268291-1 | Pin 3,5 | € 1.00 | |
| Aanslag Links Ar411Hr | ||||
| 068 | 310639-4 | Aanslag Links Ar411Hr | € 20.10 | |
| Aanslag Rechts Ar411Hr | ||||
| 069 | 310640-9 | Aanslag Rechts Ar411Hr | € 20.10 | |
| Unterlegscheibe | ||||
| 070 | 261118-4 | Unterlegscheibe | € 1.00 | |
| Drukveer 3 Ar411Hr | ||||
| 071 | 234267-0 | Drukveer 3 Ar411Hr | € 1.00 | |
| Drukveer 5 Ar411Hr | ||||
| 072 | 234268-8 | Drukveer 5 Ar411Hr | € 1.00 | |
| Pin 4 | ||||
| 073 | 268290-3 | Pin 4 | € 1.00 | |
| Urethaan ring 3 | ||||
| 074 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Tuer | ||||
| 075 | 454162-0 | Tuer | € 2.47 | |
| Drukveer 5 | ||||
| 076 | 234003-4 | Drukveer 5 | € 1.74 | |
| Sperrbolzen | ||||
| 077 | 310217-0 | Sperrbolzen | € 5.95 | |
| Urethaan ring 3 | ||||
| 078 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Seegering R24 | ||||
| 079 | 962113-4 | Seegering R24 | € 1.00 | |
| Cupring | ||||
| 080 | 345781-2 | Cupring | € 1.45 | |
| Drukveer 10 | ||||
| 081 | 234046-6 | Drukveer 10 | € 4.65 | |
| Rubber ring 14 | ||||
| 082 | 262123-4 | Rubber ring 14 | € 2.47 | |
| O-ring 19 | ||||
| 083 | 213971-4 | O-ring 19 | € 1.74 | |
| Nicht bestellbar | ||||
| 084 | 326115-8 | Nicht bestellbar | ||
| Urethaan ring 4 | ||||
| 085 | 262130-7 | Urethaan ring 4 | € 1.00 | |
| O-ring 8 | ||||
| 086 | 213007-9 | O-ring 8 | € 1.00 | |
| Drukveer 3 | ||||
| 087 | 234042-4 | Drukveer 3 | € 1.74 | |
| Aanvoerklauw | ||||
| 088 | 310246-3 | Aanvoerklauw | € 8.57 | |
| Pen 4,5 | ||||
| 089 | 268193-1 | Pen 4,5 | € 2.83 | |
| O-ring 14 | ||||
| 090 | 213162-7 | O-ring 14 | € 1.00 | |
| Rohr | ||||
| 091 | 332050-0 | Rohr | € 9.66 | |
| O-ring 14 | ||||
| 092 | 213162-7 | O-ring 14 | € 1.00 | |
| Afstandhouder tbv inlaatdeksel | ||||
| 093 | 454161-2 | Afstandhouder tbv inlaatdeksel | € 1.45 | |
| Pakking, Inlaatdeksel Ar411Hr | ||||
| 094 | 162350-2 | Pakking, Inlaatdeksel Ar411Hr | € 1.74 | |
| O-ring 25 | ||||
| 095 | 213987-9 | O-ring 25 | € 1.00 | |
| Filter Ar412Hr | ||||
| 096 | 413161-1 | Filter Ar412Hr | € 1.45 | |
| Nicht bestellbar | ||||
| 097 | 141821-2 | Nicht bestellbar | ||
| Spanstift 3-16 | ||||
| 098 | 951063-8 | Spanstift 3-16 | € 1.00 | |
| Inbusbout m5x30 | ||||
| 099 | 922252-2 | Inbusbout m5x30 | € 1.00 | |
| Kap 9 | ||||
| 100 | 286281-2 | Kap 9 | € 1.02 | |
| Revisieset Ar411Hr | ||||
| 101 | 196171-0 | Revisieset Ar411Hr | € 7.55 | |
| O-ring 5,5 | ||||
| 102 | 213545-1 | O-ring 5,5 | € 1.00 | |
| O-ring 10 | ||||
| 103 | 213070-2 | O-ring 10 | € 1.00 | |
| Inlaatklep Geleider AR411HR | ||||
| 104 | 412132-5 | Inlaatklep Geleider AR411HR | € 14.45 | |
| Nicht bestellbar | ||||
| 105 | 231471-2 | Nicht bestellbar | ||
| O-ring 3 | ||||
| 106 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 3 | ||||
| 107 | 213640-7 | O-ring 3 | € 2.11 | |
| Klepsteller AR411HR | ||||
| 108 | 326232-4 | Klepsteller AR411HR | € 4.65 | |
| Schakelaarhandel | ||||
| 109 | 454160-4 | Schakelaarhandel | € 1.02 | |
| Spanstift 2-14 | ||||
| 110 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Schakelklep Cmpl. Ar411Hr | ||||
| 111 | 135542-6 | Schakelklep Cmpl. Ar411Hr | € 50.58 | |
| Schakelklepgeleiding AR411HR | ||||
| 112 | 412131-7 | Schakelklepgeleiding AR411HR | € 16.31 | |
| O-ring 11 | ||||
| 113 | 213134-2 | O-ring 11 | € 1.00 | |
| Regelklep AR411HR | ||||
| 114 | 326240-5 | Regelklep AR411HR | € 9.66 | |
| O-ring 8 | ||||
| 115 | 213984-5 | O-ring 8 | € 1.00 | |
| O-ring 8 | ||||
| 116 | 213985-3 | O-ring 8 | € 1.45 | |
| Drukveer 4 Ar411Hr | ||||
| 117 | 234270-1 | Drukveer 4 Ar411Hr | € 1.74 | |
| O-ring 2 | ||||
| 118 | 213986-1 | O-ring 2 | € 1.00 | |
| Schakelklepsteel Ar411Hr | ||||
| 119 | 326230-8 | Schakelklepsteel Ar411Hr | € 3.27 | |
| O-ring 3 | ||||
| 120 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 18 | ||||
| 121 | 213275-4 | O-ring 18 | € 1.00 | |
| O-ring 20 | ||||
| 122 | 213310-8 | O-ring 20 | € 1.00 | |
| Schakelklephuis Ar411Hr | ||||
| 123 | 326239-0 | Schakelklephuis Ar411Hr | € 13.94 | |
| Revisieset Ar411Hr | ||||
| 124 | 196170-2 | Revisieset Ar411Hr | € 8.57 | |
| Spanstift 3-12 | ||||
| 125 | 951057-3 | Spanstift 3-12 | € 1.00 | |
| Houder tbv draaghaak | ||||
| 126 | 454166-2 | Houder tbv draaghaak | € 2.11 | |
| Drukveer 7 | ||||
| 127 | 233343-7 | Drukveer 7 | € 1.00 | |
| Haken | ||||
| 128 | 161372-9 | Haken | € 2.83 | |
| Schakelknop Compleet Ar411Hr | ||||
| 129 | 135736-3 | Schakelknop Compleet Ar411Hr | € 57.90 | |
| Torsieveer 5 | ||||
| 130 | 233501-5 | Torsieveer 5 | € 1.00 | |
| Distanzscheibe | ||||
| 131 | 310199-6 | Distanzscheibe | € 5.30 | |
| Torsieveer 6 | ||||
| 132 | 233576-4 | Torsieveer 6 | € 2.47 | |
| Ontgrendelpal | ||||
| 133 | 310310-0 | Ontgrendelpal | € 5.30 | |
| Sperrbolzen | ||||
| 134 | 326144-1 | Sperrbolzen | € 1.74 | |
| Drukveer 2 | ||||
| 135 | 233490-4 | Drukveer 2 | € 1.00 | |
| Afdekplaat tbv startveer | ||||
| 136 | 419743-7 | Afdekplaat tbv startveer | € 1.00 | |
| Pen 3 | ||||
| 137 | 268168-0 | Pen 3 | € 1.00 | |
| Pen 3 | ||||
| 138 | 268168-0 | Pen 3 | € 1.00 | |
| Spanstift 2-12 | ||||
| 139 | 951007-8 | Spanstift 2-12 | € 1.00 | |
| Schakelknop Ar411Hr | ||||
| 140 | 310676-8 | Schakelknop Ar411Hr | € 16.31 | |
| Torsieveer 4 | ||||
| 141 | 231699-2 | Torsieveer 4 | € 1.00 | |
| Hebel | ||||
| 142 | 310196-2 | Hebel | € 5.30 | |
| Hebel | ||||
| 143 | 310198-8 | Hebel | € 5.30 | |
| Torsieveer 4 | ||||
| 144 | 233503-1 | Torsieveer 4 | € 2.11 | |
| Schakel montageplaat | ||||
| 145 | 419844-1 | Schakel montageplaat | € 4.14 | |
| Schaltstange | ||||
| 146 | 310293-4 | Schaltstange | € 10.96 | |
| Drukveer 5 Ar411Hr | ||||
| 147 | 234269-6 | Drukveer 5 Ar411Hr | € 4.14 | |
| Contact Arm Compleet Ar411Hr | ||||
| 148 | 135541-8 | Contact Arm Compleet Ar411Hr | € 71.21 | |
| Stelboek (boven) | ||||
| 149 | 310234-0 | Stelboek (boven) | € 24.09 | |
| As, afsteller- | ||||
| 150 | 324745-9 | As, afsteller- | € 1.74 | |
| Drukveer 2 | ||||
| 151 | 233491-2 | Drukveer 2 | € 1.00 | |
| Afsteller compleet | ||||
| 152 | 158747-1 | Afsteller compleet | € 1.23 | |
| Spanstift 2-14 | ||||
| 153 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Stalen kogel 2.3 | ||||
| 154 | 216031-1 | Stalen kogel 2.3 | € 1.00 | |
| Contact Arm AR411HR | ||||
| 155 | 310529-1 | Contact Arm AR411HR | € 34.87 | |
| Spanstift 2-14 | ||||
| 156 | 951010-9 | Spanstift 2-14 | € 1.00 | |
| Stelelement | ||||
| 157 | 310201-5 | Stelelement | € 4.65 | |
| Neusrubber Ar411Hr | ||||
| 158 | 424539-3 | Neusrubber Ar411Hr | € 2.47 | |
| Inbusbout M5X30 | ||||
| 159 | 922254-8 | Inbusbout M5X30 | € 1.00 | |
| Magazijn Cpl AR411HR | ||||
| 160 | 135872-5 | Magazijn Cpl AR411HR | € 22.02 | |
| Magazin Zsb | ||||
| 161 | 454163-8 | Magazin Zsb | € 5.30 | |
| Urethaan ring 3 | ||||
| 162 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Pen 4 | ||||
| 163 | 268027-8 | Pen 4 | € 2.11 | |
| Deksel Magazijn Compl Ar411Hr | ||||
| 164 | 143652-5 | Deksel Magazijn Compl Ar411Hr | € 12.34 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
