Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita BLS713'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

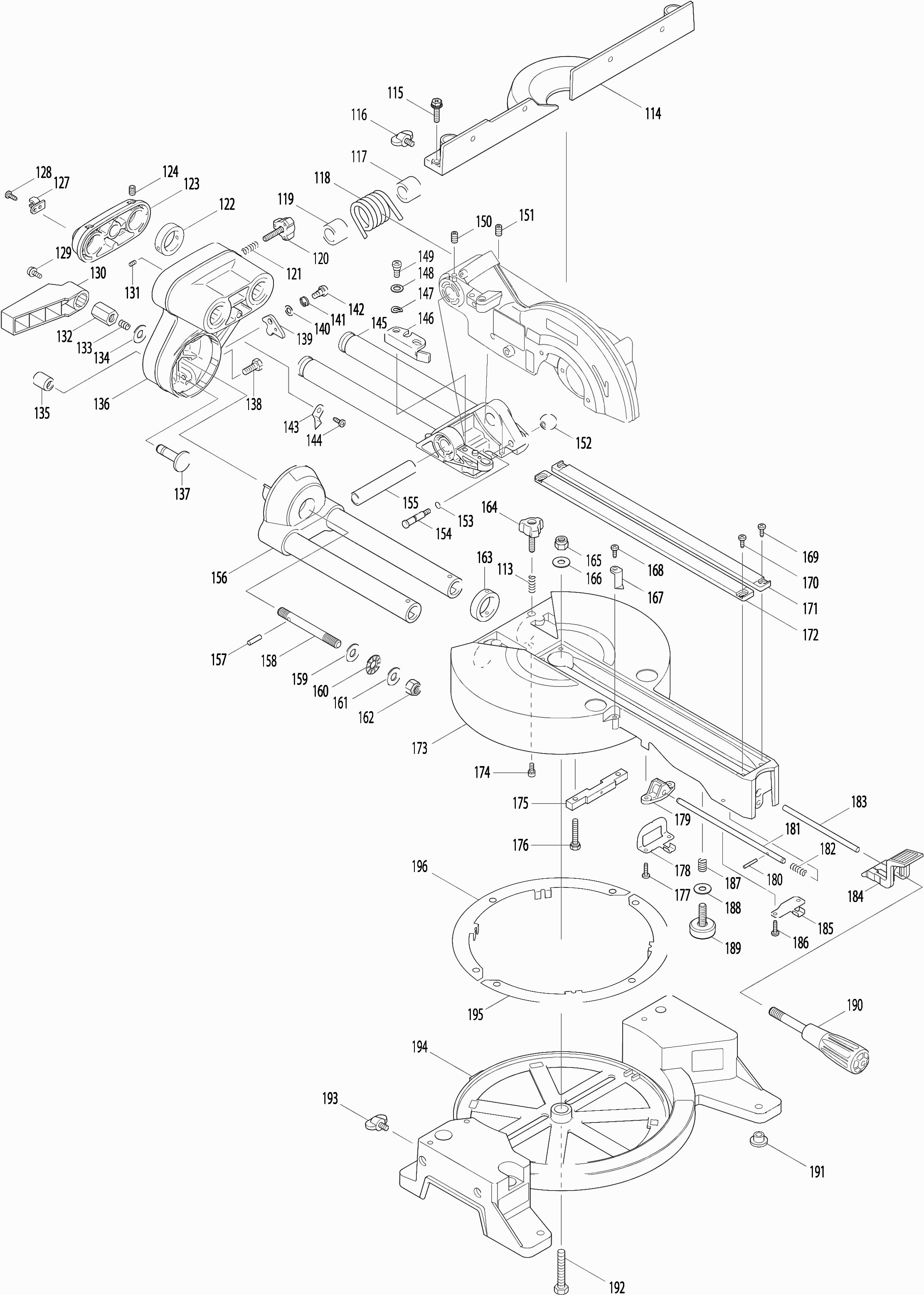

Zeichnungen der Makita BLS713
Teileliste der Makita BLS713
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Achterhandgreep set | ||||
| 001 | 188961-5@141 | 35.99 | 42.83 | |
| Deblokkeerknop | ||||
| 002 | 417113-4@141 | 1.20 | 1.43 | |
| Schroef 5x45 | ||||
| 003 | 911268-2@141 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 004 | 265A48-7@141 | 0.90 | 1.07 | |
| Drukveer 4 | ||||
| 005 | 231026-3@141 | 0.83 | 0.99 | |
| Deblokkkeer Handel Ls800Dw | ||||
| 006 | 416533-9@141 | 1.43 | 1.70 | |
| Pen 5 | ||||
| 007 | 256123-4@141 | 1.43 | 1.70 | |
| Aansluitunit (3 contacten) | ||||
| 008 | 644808-8@141 | 3.65 | 4.34 | |
| Schakelaar 2 contacten | ||||
| 009 | 651956-6@141 | 12.58 | 14.97 | |
| Schakelaarhandel | ||||
| 010 | 452130-7@141 | 3.37 | 4.01 | |
| Tapschroef 4x18 | ||||
| 011 | 265A48-7@141 | 0.90 | 1.07 | |
| Hintere Abdeckung | ||||
| 012 | 416639-3@141 | 5.46 | 6.50 | |
| Typenschild | ||||
| 013 | 868774-7@141 | 2.80 | 3.33 | |
| Kohlekasten Zsb | ||||
| 014 | 643864-5@141 | 3.22 | 3.83 | |
| Kohlekasten Zsb | ||||
| 015 | 643863-7@141 | 3.22 | 3.83 | |
| Koolborstel set Cb-441 | ||||
| 016 | 194435-6@141 | 4.58 | 5.45 | |
| Koolborstelhouderdop | ||||
| 017 | 643941-3@141 | 2.44 | 2.90 | |
| Motorgehäuse | ||||
| 018 | 416909-0@141 | 18.80 | 22.37 | |
| Tapschroef 4x60 | ||||
| 019 | 266209-6@141 | 0.83 | 0.99 | |
| Schroef 5x45 | ||||
| 020 | 911268-2@141 | 0.83 | 0.99 | |
| Achterhandgreep set | ||||
| 021 | 188961-5@141 | 35.99 | 42.83 | |
| Kogellager 627ddw | ||||
| 022 | 210045-2@141 | 3.22 | 3.83 | |
| Magneet houder | ||||
| 023 | 632828-4@141 | 23.75 | 28.26 | |
| Zwischenplatte | ||||
| 024 | 416907-4@141 | 2.44 | 2.90 | |
| Anker | ||||
| 025 | 519269-0@141 | 48.51 | 57.73 | |
| Achsblockierung | ||||
| 026 | 344681-3@141 | 2.93 | 3.49 | |
| Drukveer 5 | ||||
| 027 | 233092-6@141 | 0.83 | 0.99 | |
| Kogellager 6000ddw | ||||
| 028 | 211088-7@141 | 5.22 | 6.21 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 029 | 631999-4@141 | |||
| Inbusbout M6x20 | ||||
| 030 | 265905-3@141 | 0.83 | 0.99 | |
| Sluitring 6 | ||||
| 031 | 253804-1@141 | 0.83 | 0.99 | |
| Ring 16 | ||||
| 032 | 257163-5@141 | 1.24 | 1.48 | |
| Verbindingsplaat | ||||
| 033 | 154643-1@141 | 14.23 | 16.93 | |
| Ring 16 | ||||
| 034 | 257163-5@141 | 1.24 | 1.48 | |
| Verbindingsdeksel | ||||
| 035 | 346330-8@141 | 0.83 | 0.99 | |
| Stopring E-5 | ||||
| 036 | 961018-5@141 | 0.83 | 0.99 | |
| Gummiplatte | ||||
| 037 | 421626-9@141 | 0.83 | 0.99 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 038 | 165414-1@141 | |||
| Schroef 4x10 | ||||
| 039 | 911113-1@141 | 0.83 | 0.99 | |
| O-ring 35 | ||||
| 040 | 213460-9@141 | 1.21 | 1.44 | |
| Stofafzuigadapter afkortzaag | ||||
| 041 | 419277-0@141 | 2.59 | 3.08 | |
| Zeskant bout 6x16 | ||||
| 042 | 265251-4@141 | 0.83 | 0.99 | |
| Kunststof Ring 5 | ||||
| 043 | 262001-8@141 | 1.43 | 1.70 | |
| Vleugelbout m6x43 | ||||
| 044 | 265717-4@141 | 2.05 | 2.44 | |
| Tapschroef M4x12mm Ck | ||||
| 045 | 266026-4@141 | 0.83 | 0.99 | |
| Rubber pen 4 | ||||
| 046 | 263002-9@141 | 0.83 | 0.99 | |
| Rubber pen 6 | ||||
| 046A | 263005-3@141 | 0.83 | 0.99 | |
| Warnschild | ||||
| 046B | 810968-0@141 | 1.43 | 1.70 | |
| Kogellager 607llb | ||||
| 048 | 211021-9@141 | 4.58 | 5.45 | |
| Borgring S-12 | ||||
| 049 | 961052-5@141 | 0.83 | 0.99 | |
| Sluitring 12 | ||||
| 050 | 253813-0@141 | 1.24 | 1.48 | |
| Tandwiel 60 | ||||
| 051 | 226512-7@141 | 11.16 | 13.28 | |
| Ring 12 | ||||
| 052 | 257011-8@141 | 1.21 | 1.44 | |
| O-ring 46 | ||||
| 053 | 213623-7@141 | 0.83 | 0.99 | |
| Lagerhuis | ||||
| 054 | 317193-9@141 | 10.84 | 12.90 | |
| Kogellager 6201dw1 | ||||
| 055 | 211129-9@141 | 7.44 | 8.85 | |
| Stoessel | ||||
| 056 | 323798-5@141 | 11.16 | 13.28 | |
| Lagerborging | ||||
| 057 | 285736-4@141 | 1.72 | 2.05 | |
| Innerer Flansch | ||||
| 058 | 224397-5@141 | 6.58 | 7.83 | |
| Binnenflens 40 | ||||
| 058A | 224370-5@141 | 5.22 | 6.21 | |
| Schroef 5x16 | ||||
| 059 | 911224-2@141 | 0.83 | 0.99 | |
| Ausserer Flansch | ||||
| 060 | 224282-2@141 | 5.88 | 7.00 | |
| Buitenflens 40 | ||||
| 060A | 224275-9@141 | 6.58 | 7.83 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 061 | 265461-3@141 | |||
| Centreerplaat | ||||
| 062 | 345585-2@141 | 2.80 | 3.33 | |
| Afdekplaat kap | ||||
| 063 | 346232-8@141 | 5.88 | 7.00 | |
| Zeskant bout M6 | ||||
| 064 | 265985-9@141 | 1.43 | 1.70 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 065 | 265473-6@141 | |||
| Centreerplaatring | ||||
| 066 | 345589-4@141 | 1.01 | 1.20 | |
| Torsieveer 24 | ||||
| 067 | 231934-8@141 | 2.44 | 2.90 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 068 | 452129-2@141 | |||
| Ring 5 | ||||
| 069 | 267136-0@141 | 1.01 | 1.20 | |
| Zeskant bout 5x16 | ||||
| 070 | 265491-4@141 | 0.83 | 0.99 | |
| Sperrbolzen | ||||
| 080 | 324455-8@141 | 2.08 | 2.48 | |
| Ashouder | ||||
| 081 | 452134-9@141 | 4.58 | 5.45 | |
| Tapschroef Ct4x16 | ||||
| 082 | 266034-5@141 | 0.83 | 0.99 | |
| Drukveer 7 | ||||
| 083 | 231316-4@141 | 0.83 | 0.99 | |
| Stang 8 | ||||
| 084 | 325980-2@141 | 1.72 | 2.05 | |
| Kappe | ||||
| 085 | 421589-9@141 | 0.83 | 0.99 | |
| Deblokkeerhandel | ||||
| 086 | 346320-1@141 | 3.22 | 3.83 | |
| Schroef 4x10 | ||||
| 087 | 911113-1@141 | 0.83 | 0.99 | |
| Blokkerplaat | ||||
| 088 | 346322-7@141 | 1.43 | 1.70 | |
| Schroef 4x10 | ||||
| 089 | 911113-1@141 | 0.83 | 0.99 | |
| Schroef 4x10 | ||||
| 090 | 911114-9@141 | 0.83 | 0.99 | |
| Trekveer 8 | ||||
| 091 | 231690-0@141 | 0.83 | 0.99 | |
| Besch.pl assy (incl A t/m E) A | ||||
| 092 | 135511-7@141 | 5.22 | 6.21 | |
| Schroef 4x10 | ||||
| 093 | 911113-1@141 | 0.83 | 0.99 | |
| Hulphandel | ||||
| 094 | 346321-9@141 | 1.21 | 1.44 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 095 | 253215-0@141 | 0.83 | 0.99 | |
| Drukveer 6 | ||||
| 113 | 231325-3@141 | 0.83 | 0.99 | |
| Achterlineaal | ||||
| 114 | 319193-5@141 | 43.10 | 51.29 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 115 | 265593-6@141 | |||
| Vleugelbout 6x10 | ||||
| 116 | 924306-1@141 | 0.83 | 0.99 | |
| Hülse | ||||
| 117 | 416535-5@141 | 1.21 | 1.44 | |
| Torsieveer 28 | ||||
| 118 | 231638-2@141 | 5.88 | 7.00 | |
| Hülse | ||||
| 119 | 416535-5@141 | 1.21 | 1.44 | |
| Vleugelbout M6x28 | ||||
| 120 | 265790-4@141 | 0.83 | 0.99 | |
| Drukveer 6 | ||||
| 121 | 231325-3@141 | 0.83 | 0.99 | |
| Ring 26 | ||||
| 122 | 257214-4@141 | 7.44 | 8.85 | |
| Geleide arm houder | ||||
| 123 | 318651-8@141 | 10.84 | 12.90 | |
| Inwendig zeskant bout M6x8 | ||||
| 124 | 265894-2@141 | 0.83 | 0.99 | |
| sleutelklem | ||||
| 127 | 416536-3@141 | 1.80 | 2.14 | |
| Trekontlaster | ||||
| 127A | 687045-1@141 | 2.93 | 3.49 | |
| Tapschroef M4x12mm Ck | ||||
| 128 | 266026-4@141 | 0.83 | 0.99 | |
| Schroef 4x10 | ||||
| 129 | 911113-1@141 | 0.83 | 0.99 | |
| Griff | ||||
| 130 | 416006-2@141 | 4.08 | 4.86 | |
| Einstellschraube | ||||
| 131 | 913106-4@141 | 0.83 | 0.99 | |
| Zeskant moer 10x17 | ||||
| 132 | 252144-4@141 | 2.80 | 3.33 | |
| Veer 5 voor lever 100 | ||||
| 133 | 231266-3@141 | 0.83 | 0.99 | |
| Ring 10 | ||||
| 134 | 253024-7@141 | 0.83 | 0.99 | |
| Kap 16 | ||||
| 135 | 286236-7@141 | 0.83 | 0.99 | |
| Arm compleet | ||||
| 136 | 140609-7@141 | 74.76 | 88.96 | |
| Lineair kogell 2560 | ||||
| 136 | 211376-2@141 | 23.75 | 28.26 | |
| Vilten ring 25 | ||||
| 136 | 262077-5@141 | 1.43 | 1.70 | |
| Kappe | ||||
| 136 | 344638-4@141 | 1.06 | 1.26 | |
| Rubber pen 6 | ||||
| 136 | 263005-3@141 | 0.83 | 0.99 | |
| Ontspanstift | ||||
| 137 | 324295-4@141 | 3.83 | 4.56 | |
| Zeskant bout 6x16 | ||||
| 138 | 265251-4@141 | 0.83 | 0.99 | |
| Distanzscheibe | ||||
| 139 | 345299-3@141 | 1.70 | 2.02 | |
| Sluitring 6 | ||||
| 140 | 253726-5@141 | 0.83 | 0.99 | |
| Torsieveer 8 | ||||
| 141 | 231663-3@141 | 0.83 | 0.99 | |
| Schroef Ph L8 | ||||
| 142 | 265113-6@141 | 0.83 | 0.99 | |
| Markeerpunt | ||||
| 143 | 343678-9@141 | 0.83 | 0.99 | |
| Tapschroef M4x12mm Ck | ||||
| 144 | 266026-4@141 | 0.83 | 0.99 | |
| Voorarm cpl | ||||
| 145 | 140608-9@141 | 65.59 | 78.05 | |
| Blokkeerarm | ||||
| 146 | 344643-1@141 | 2.44 | 2.90 | |
| Veerring 20 | ||||
| 147 | 253948-7@141 | 0.83 | 0.99 | |
| Sluitring 8 x 14 x 1mm | ||||
| 148 | 253835-0@141 | 0.83 | 0.99 | |
| Schroef M6 | ||||
| 149 | 251267-5@141 | 0.83 | 0.99 | |
| Zeskant bout 6x10 | ||||
| 150 | 251961-9@141 | 0.83 | 0.99 | |
| Zeskant bout 6x10 | ||||
| 151 | 251961-9@141 | 0.83 | 0.99 | |
| Knop 20 | ||||
| 152 | 271601-3@141 | 0.83 | 0.99 | |
| O-ring 5 | ||||
| 153 | 213021-5@141 | 0.83 | 0.99 | |
| Sperrbolzen | ||||
| 154 | 324183-5@141 | 1.01 | 1.20 | |
| Pijp 16-90 | ||||
| 155 | 331350-5@141 | 5.88 | 7.00 | |
| Armhouder | ||||
| 156 | 140610-2@141 | 57.34 | 68.23 | |
| Schaalverdeling | ||||
| 156 | 816392-5@141 | 2.80 | 3.33 | |
| Pen 5 | ||||
| 157 | 256123-4@141 | 1.43 | 1.70 | |
| Tapeind M10 | ||||
| 158 | 266320-4@141 | 3.37 | 4.01 | |
| Ring 10 | ||||
| 159 | 253024-7@141 | 0.83 | 0.99 | |
| Druknaaldlager 1023 | ||||
| 160 | 216413-7@141 | 2.80 | 3.33 | |
| Ring 10 | ||||
| 161 | 253024-7@141 | 0.83 | 0.99 | |
| Moer M10-17 | ||||
| 162 | 264005-6@141 | 1.43 | 1.70 | |
| Ring 26 | ||||
| 163 | 257214-4@141 | 7.44 | 8.85 | |
| Vleugelbout M6x28 | ||||
| 164 | 265790-4@141 | 0.83 | 0.99 | |
| Borgmoer M8x13 hoog | ||||
| 165 | 252105-4@141 | 0.83 | 0.99 | |
| Sluitring 8 | ||||
| 166 | 253731-2@141 | 0.83 | 0.99 | |
| Indicatieplaat | ||||
| 167 | 416355-7@141 | 2.93 | 3.49 | |
| Tapschroef M4x12mm Ck | ||||
| 168 | 266026-4@141 | 0.83 | 0.99 | |
| Tapschroef M4x12mm Ck | ||||
| 169 | 266026-4@141 | 0.83 | 0.99 | |
| Tapschroef M4x12mm Ck | ||||
| 170 | 266026-4@141 | 0.83 | 0.99 | |
| Inzaagplaat | ||||
| 171 | 419103-3@141 | 3.22 | 3.83 | |
| Inzaagplaat | ||||
| 172 | 419103-3@141 | 3.22 | 3.83 | |
| Draaiplateau | ||||
| 173 | 140614-4@141 | 166.57 | 198.22 | |
| Lineair kogell 2560 | ||||
| 173 | 211376-2@141 | 23.75 | 28.26 | |
| Warnschild | ||||
| 173 | 810495-7@141 | 2.93 | 3.49 | |
| Vilten ring 25 | ||||
| 173 | 262077-5@141 | 1.43 | 1.70 | |
| Kappe | ||||
| 173 | 344638-4@141 | 1.06 | 1.26 | |
| Rubber pen 6 | ||||
| 173 | 263005-3@141 | 0.83 | 0.99 | |
| Warnschild | ||||
| 173 | 817283-3@141 | 0.83 | 0.99 | |
| Inbusbout M4x10 | ||||
| 174 | 922112-8@141 | 0.83 | 0.99 | |
| Vierkant pen | ||||
| 175 | 153580-6@141 | 11.32 | 13.47 | |
| Rubber pen 6 | ||||
| 175 | 263005-3@141 | 0.83 | 0.99 | |
| Zeskant bout 5x30 | ||||
| 176 | 925251-3@141 | 0.83 | 0.99 | |
| Tapschroef Ct4x16 | ||||
| 177 | 266034-5@141 | 0.83 | 0.99 | |
| Blokkeerplaat | ||||
| 178 | 344601-7@141 | 1.27 | 1.51 | |
| Pinhouder | ||||
| 179 | 317616-7@141 | 7.80 | 9.28 | |
| Pen 3 | ||||
| 180 | 256158-5@141 | 0.83 | 0.99 | |
| Blokkeerpin Ls0714 | ||||
| 181 | 324288-1@141 | 2.80 | 3.33 | |
| Drukveer 6 | ||||
| 182 | 231325-3@141 | 0.83 | 0.99 | |
| Stang 6mm | ||||
| 183 | 324289-9@141 | 1.01 | 1.20 | |
| Blokkeerhandel | ||||
| 184 | 416450-3@141 | 2.08 | 2.48 | |
| Blokkeerplaat | ||||
| 185 | 345272-3@141 | 1.21 | 1.44 | |
| Tapschroef Ct4x16 | ||||
| 186 | 266034-5@141 | 0.83 | 0.99 | |
| Drukveer 9 | ||||
| 187 | 231418-6@141 | 0.83 | 0.99 | |
| Sluitring 8 | ||||
| 188 | 253731-2@141 | 0.83 | 0.99 | |
| Stelbout M8x27 | ||||
| 189 | 266432-3@141 | 1.43 | 1.70 | |
| Handvat 32 | ||||
| 190 | 273658-0@141 | 14.23 | 16.93 | |
| Abdeckhaube | ||||
| 191 | 416972-3@141 | 1.02 | 1.21 | |
| Zeskant bout 8x50 | ||||
| 192 | 921472-5@141 | 0.83 | 0.99 | |
| Vleugelbout 6x10 | ||||
| 193 | 924306-1@141 | 0.83 | 0.99 | |
| Schaalverdeling | ||||
| 194 | 816339-9@141 | 7.44 | 8.85 | |
| Warnschild | ||||
| 194A | 810486-8@141 | 2.80 | 3.33 | |
| Voetzool | ||||
| 194B | 140612-8@141 | 102.31 | 121.75 | |
| Gleitplatte | ||||
| 195 | 344646-5@141 | 2.80 | 3.33 | |
| Gleitplatte | ||||
| 196 | 344646-5@141 | 2.80 | 3.33 | |
| Waaier 55 | ||||
| 197 | 241873-4@141 | 2.93 | 3.49 | |
