Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita DLS111'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

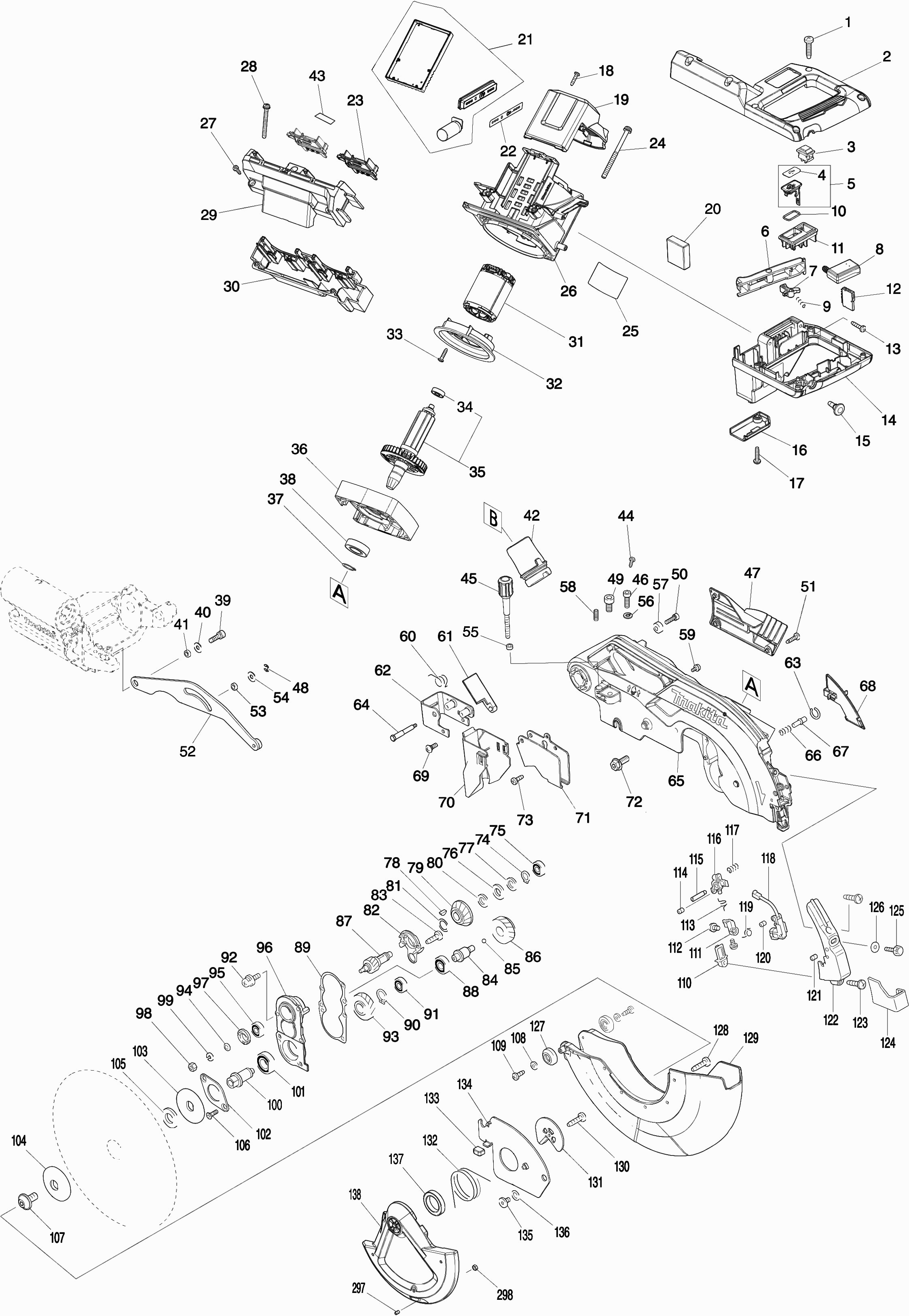

Zeichnungen der Makita DLS111
Teileliste der Makita DLS111
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Gewindebohrer 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.19 | |
| Handgriffset Dls111 | ||||
| 002 | 183H70-3 | 14.30 | 17.02 | |
| Warnschild | ||||
| 002C10 | 810486-8 | 2.40 | 2.86 | |
| Schalteinheit Dls111 | ||||
| 003 | 632L09-2 | 10.80 | 12.85 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 004 | 813T75-8 | |||
| Kappen-Set DSP601/DGA514 P | ||||
| 005A | 183H92-3 | 2.71 | 3.22 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 005B | 183J85-2 | |||
| Schaltergriff Dls111 | ||||
| 006 | 457935-0 | 3.60 | 4.28 | |
| Entsperrtaste | ||||
| 007 | 416356-5 | 2.40 | 2.86 | |
| Schalter C3Xa-1Pspm Dsp600 | ||||
| 008 | 651083-9 | 19.80 | 23.56 | |
| Druckfeder 4 | ||||
| 009 | 231026-3 | 1.00 | 1.19 | |
| O-Ring 18 | ||||
| 010A | 213275-4 | 1.00 | 1.19 | |
| O-Ring 16 | ||||
| 010B | 213218-6 | 1.20 | 1.43 | |
| Schalterabdeckung Dls111 | ||||
| 011 | 458079-9 | 8.40 | 10.00 | |
| Unter Controller Dls111 | ||||
| 012 | 620750-7 | 34.10 | 40.58 | |
| Gewindebohrer 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.19 | |
| Handgriffset Dls111 | ||||
| 014 | 183H70-3 | 14.30 | 17.02 | |
| Warnschild | ||||
| 014C10 | 810486-8 | 2.40 | 2.86 | |
| Kindersicherung | ||||
| 015 | 451037-4 | 1.20 | 1.43 | |
| Kabelschutzhalters | ||||
| 016 | 451000-7 | 1.00 | 1.19 | |
| Gewindebohrer 4x18 | ||||
| 017 | 265A48-7 | 1.00 | 1.19 | |
| Gewindebohrer 4x18 | ||||
| 018 | 265A48-7 | 1.00 | 1.19 | |
| Hintere Abdeckung Dls111 | ||||
| 019 | 457933-4 | 6.00 | 7.14 | |
| Stromkreis Dls111 | ||||
| 020 | 620742-6 | 16.50 | 19.64 | |
| Kontrolleinheit Dls111 | ||||
| 021 | 620728-0 | 161.70 | 192.42 | |
| Indikationsetikett DLS111 | ||||
| 022 | 813T74-0 | 2.40 | 2.86 | |
| Anschlusseinheit | ||||
| 023 | 643874-2 | 3.60 | 4.28 | |
| Schraube M6x80mm | ||||
| 024 | 911948-0 | 1.00 | 1.19 | |
| Namensschild DLS111 | ||||
| 025 | 853T07-3 | 3.60 | 4.28 | |
| Motorgehäuse Dls111 | ||||
| 026 | 457906-7 | 13.20 | 15.71 | |
| Gewindebohrer 4x18 | ||||
| 027 | 265A48-7 | 1.00 | 1.19 | |
| SCHRAUBE 5X50 | ||||
| 028 | 911273-9 | 1.00 | 1.19 | |
| Batteriegehäuse Dls111 | ||||
| 029 | 183H65-6 | 7.20 | 8.57 | |
| Gummistift 6 | ||||
| 029C10 | 263005-3 | 1.00 | 1.19 | |
| Batteriegehäuse Dls111 | ||||
| 030 | 183H65-6 | 7.20 | 8.57 | |
| Gummistift 6 | ||||
| 030C10 | 263005-3 | 1.00 | 1.19 | |
| Anker 2X18V Dls111 | ||||
| 031 | 629282-1 | 48.40 | 57.60 | |
| Zwischenplatte Dls111 | ||||
| 032 | 457934-2 | 3.60 | 4.28 | |
| Gewindebohrer 4x18 | ||||
| 033 | 265A48-7 | 1.00 | 1.19 | |
| Kugellager 607llb | ||||
| 034 | 211021-9 | 4.80 | 5.71 | |
| Anker Dls111 | ||||
| 035 | 519454-5 | 45.10 | 53.67 | |
| Motorhalterung | ||||
| 036 | 319591-3 | 9.60 | 11.42 | |
| Sicherungsring S-17 | ||||
| 037 | 961057-5 | 1.00 | 1.19 | |
| Kugellager 6003ddw | ||||
| 038 | 210301-0 | 6.00 | 7.14 | |
| Innensechskantschraube M6x20 | ||||
| 039 | 265905-3 | 1.20 | 1.43 | |
| Unterlegscheibe 6 | ||||
| 040 | 253804-1 | 1.00 | 1.19 | |
| Unterlegscheibe 16 | ||||
| 041 | 257163-5 | 1.20 | 1.43 | |
| Staubadapter DLS211 | ||||
| 042 | 459250-8 | 2.40 | 2.86 | |
| Seriennummer Etikett DLS111 | ||||
| 043 | 853T14-6 | 2.40 | 2.86 | |
| Gewindeschraube M4x12mm Ck | ||||
| 044 | 266026-4 | 1.00 | 1.19 | |
| Einstellschraube M6x40 | ||||
| 045 | 251554-2 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 046 | 922332-4 | |||
| Etikett "makita" | ||||
| 047 | 457667-9 | 2.40 | 2.86 | |
| Sprengring E-5 | ||||
| 048 | 961018-5 | 1.00 | 1.19 | |
| Innensechskantschraube M8x25 | ||||
| 049 | 251547-9 | 1.00 | 1.19 | |
| Inbusschraube 5x18 | ||||
| 050 | 922226-3 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 051 | 266034-5 | 1.00 | 1.19 | |
| Verbindungsplatte Ls1019L | ||||
| 052 | 144529-7 | 8.40 | 10.00 | |
| Unterlegscheibe 16 | ||||
| 053 | 257163-5 | 1.20 | 1.43 | |
| Unterlegscheibe 6 | ||||
| 054 | 253804-1 | 1.00 | 1.19 | |
| Kunststoffring 5 | ||||
| 055 | 262001-8 | 1.39 | 1.65 | |
| Federscheibe 6 A | ||||
| 056 | 253903-9 | 1.00 | 1.19 | |
| Buchse 6 | ||||
| 057 | 257785-1 | 1.00 | 1.19 | |
| Einstellschraube M6x16 | ||||
| 058 | 266321-2 | 1.00 | 1.19 | |
| Schraube 4X10 | ||||
| 059 | 911114-9 | 1.00 | 1.19 | |
| Torsionsfeder 11 | ||||
| 060 | 232412-1 | 1.00 | 1.19 | |
| Staubführungsplatte | ||||
| 061 | 457764-1 | 1.20 | 1.43 | |
| Montagehalterung | ||||
| 062 | 161647-6 | 4.80 | 5.71 | |
| Sicherungsring 8 | ||||
| 063 | 231928-3 | 1.00 | 1.19 | |
| Met. Schraube M4 | ||||
| 064 | 251544-5 | 1.00 | 1.19 | |
| Sägedeckel Dls111 | ||||
| 065 | 144774-4 | 92.40 | 109.96 | |
| Verbindungsstift | ||||
| 065A | 322316-6 | 2.40 | 2.86 | |
| Gummistift 6 | ||||
| 065C10 | 263005-3 | 1.00 | 1.19 | |
| Warnschild | ||||
| 065C20 | 810064-4 | 2.40 | 2.86 | |
| Laserstrahl-Etikett Ls0714 A | ||||
| 065C30 | 810354-5 | 2.40 | 2.86 | |
| Druckfeder 7 | ||||
| 066 | 231240-1 | 1.00 | 1.19 | |
| Sperrbolzen 6 4110C | ||||
| 067 | 256633-1 | 1.20 | 1.43 | |
| Kabelschutzhalters | ||||
| 068 | 457659-8 | 1.20 | 1.43 | |
| Kreuzkopfschraube 4x11 | ||||
| 069 | 265028-7 | 1.20 | 1.43 | |
| Abschirmkappe | ||||
| 070 | 422155-5 | 2.40 | 2.86 | |
| Führungstafel | ||||
| 071 | 347215-1 | 2.40 | 2.86 | |
| Innensechskantschraube M8x20 | ||||
| 072 | 266283-4 | 1.20 | 1.43 | |
| Schraube 4x12 | ||||
| 073 | 265C54-4 | 1.00 | 1.19 | |
| Sicherungsring S-12 | ||||
| 074 | 961052-5 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 075 | 210005-4 | 4.80 | 5.71 | |
| Gummiring 12mm | ||||
| 076 | 261104-5 | 1.00 | 1.19 | |
| Unterlegscheibe 12 | ||||
| 077 | 253744-3 | 1.00 | 1.19 | |
| Federkeil 4 | ||||
| 078 | 254001-2 | 1.00 | 1.19 | |
| Zahnrad 32 | ||||
| 079 | 227550-2 | 6.00 | 7.14 | |
| Unterlegscheibe 12 | ||||
| 080 | 253744-3 | 1.00 | 1.19 | |
| Dünne Unterlegscheibe 14 | ||||
| 081 | 253313-0 | 1.00 | 1.19 | |
| Dichtung | ||||
| 082 | 451002-3 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 083 | 266026-4 | 1.00 | 1.19 | |
| Getriebewelle | ||||
| 084 | 325643-0 | 3.60 | 4.28 | |
| Stahlkugel 4 | ||||
| 085 | 216024-8 | 1.00 | 1.19 | |
| Getriebe 27 | ||||
| 086 | 227702-5 | 6.00 | 7.14 | |
| Zahnrad 14 | ||||
| 087 | 227701-7 | 6.00 | 7.14 | |
| Kugellager 6000zz | ||||
| 088 | 210067-2 | 1.20 | 1.43 | |
| Dichtung | ||||
| 089 | 442147-8 | 2.40 | 2.86 | |
| Sicherungsring S-15 | ||||
| 090 | 961055-9 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 091 | 210005-4 | 4.80 | 5.71 | |
| Schraube 5x16 | ||||
| 092 | 911224-2 | 1.00 | 1.19 | |
| Zahnrad 28 | ||||
| 093 | 227703-3 | 6.00 | 7.14 | |
| Sicherungsscheibe 5 | ||||
| 094 | 267010-2 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 095 | 210005-4 | 4.80 | 5.71 | |
| Lagergehäuse | ||||
| 096 | 158957-0 | 12.10 | 14.40 | |
| Gummistift 4 | ||||
| 096C10 | 263002-9 | 1.00 | 1.19 | |
| Lagersicherungsring 14-23 | ||||
| 097 | 285847-5 | 4.80 | 5.71 | |
| Sechskantmutter M5 | ||||
| 098 | 931202-6 | 1.00 | 1.19 | |
| Federring 5MM DLS211 | ||||
| 099 | 253427-5 | 1.00 | 1.19 | |
| Stoessel | ||||
| 100 | 325644-8 | 6.00 | 7.14 | |
| Kugellager 6002ddw | ||||
| 101 | 211236-8 | 9.60 | 11.42 | |
| Lagersicherung 51 | ||||
| 102 | 285732-2 | 1.20 | 1.43 | |
| Innere Flansch 53 | ||||
| 103 | 224431-1 | 3.60 | 4.28 | |
| Äußere Flansch 53 | ||||
| 104 | 224432-9 | 3.60 | 4.28 | |
| REDUCEERRING 30X15,88X4MM | ||||
| 105 | 257295-8 | 1.00 | 1.19 | |
| Senkschrauben 5x13 | ||||
| 106 | 265034-2 | 1.00 | 1.19 | |
| Innensechskantbolzen M10x20mm | ||||
| 107 | 266755-9 | 2.40 | 2.86 | |
| 4 Unterlegscheibe | ||||
| 108 | 941051-3 | 1.00 | 1.19 | |
| Schraube 4x12 | ||||
| 109 | 265C54-4 | 1.00 | 1.19 | |
| Linse für Laserlinie | ||||
| 110 | 418104-8 | 2.40 | 2.86 | |
| Montageblock B >0506 | ||||
| 111 | 419378-4 | 3.60 | 4.28 | |
| Schraube 3x6 | ||||
| 112 | 911003-8 | 1.00 | 1.19 | |
| Torsionsfeder 9 Ls0714 | ||||
| 113 | 231664-1 | 1.00 | 1.19 | |
| Inbusschraube 4x6 | ||||
| 114 | 266318-1 | 1.00 | 1.19 | |
| Bürstenschraube M5 | ||||
| 115 | 266306-8 | 2.40 | 2.86 | |
| Montageblock C >0506 | ||||
| 116 | 419379-2 | 4.80 | 5.71 | |
| Druckfeder 6 | ||||
| 117 | 233471-8 | 1.00 | 1.19 | |
| Schaltung für Laser | ||||
| 118 | 638651-5 | 28.60 | 34.03 | |
| Torsionsfeder 9 Ls0714 | ||||
| 119 | 231664-1 | 1.00 | 1.19 | |
| Inbusschraube 4x6 | ||||
| 120 | 266318-1 | 1.00 | 1.19 | |
| Sechskantschraube 5x8 | ||||
| 121 | 266229-0 | 1.00 | 1.19 | |
| Laserschutzkappe | ||||
| 122 | 457660-3 | 2.40 | 2.86 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 123 | 266034-5 | 1.00 | 1.19 | |
| Schutzschild | ||||
| 124 | 457664-5 | 1.00 | 1.19 | |
| Knopfschraube 5x24 | ||||
| 125 | 265753-0 | 2.40 | 2.86 | |
| Sicherungsscheibe 5 | ||||
| 126 | 253807-5 | 1.00 | 1.19 | |
| ROLLER 3157-22 | ||||
| 127 | 424193-3 | 1.00 | 1.19 | |
| Blechschraube 4x14 mm GA9070Y A | ||||
| 128 | 265B74-2 | 1.00 | 1.19 | |
| Blechschraube 4X14 Ga7020 A | ||||
| 128 | 266385-6 | 0.83 | 0.99 | |
| Säge Schutzabdeckung | ||||
| 129 | 457499-4 | 14.30 | 17.02 | |
| Blechschraube 4x14 mm GA9070Y A | ||||
| 130 | 265B74-2 | 1.00 | 1.19 | |
| Blechschraube 4X14 Ga7020 A | ||||
| 130 | 266385-6 | 0.83 | 0.99 | |
| Zentrierplatte | ||||
| 131 | 347213-5 | 2.40 | 2.86 | |
| Torsionsfeder 45 | ||||
| 132 | 231634-0 | 2.40 | 2.86 | |
| Puffer | ||||
| 133 | 424190-9 | 1.00 | 1.19 | |
| Mittelplattengehäuse | ||||
| 134 | 347214-3 | 2.40 | 2.86 | |
| Sechskantschraube M6 | ||||
| 135 | 265985-9 | 2.40 | 2.86 | |
| Federring 10 | ||||
| 136 | 253932-2 | 1.00 | 1.19 | |
| Kugellager 6805ddw | ||||
| 137 | 210168-6 | 2.40 | 2.86 | |
| Schutz | ||||
| 138 | 458437-9 | 6.00 | 7.14 | |
| STOFAFZUIGADAPTERSET | ||||
| 139 | 127427-0 | 15.00 | 17.85 | |
| Gewindebohrer 4x18 | ||||
| 140 | 265A48-7 | 1.00 | 1.19 | |
| Schlauchverbinder A | ||||
| 141 | 413J67-3 | 4.80 | 5.71 | |
| Schlauch | ||||
| 142 | 245041-1 | 10.80 | 12.85 | |
| Huelse | ||||
| 143 | 457672-6 | 1.00 | 1.19 | |
| Stopper | ||||
| 144 | 457673-4 | 1.00 | 1.19 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 147 | 458198-1 | |||
| Schlauchverbinder A | ||||
| 148 | 413J67-3 | 4.80 | 5.71 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 149 | 266034-5 | 1.00 | 1.19 | |
| Buchse 17 | ||||
| 150 | 457665-3 | 1.20 | 1.43 | |
| Torsionsfeder 35 | ||||
| 152 | 233537-4 | 6.00 | 7.14 | |
| Schraube M6 | ||||
| 153 | 251267-5 | 1.00 | 1.19 | |
| Unterlegscheibe 20 | ||||
| 154 | 253948-7 | 1.00 | 1.19 | |
| Unterlegscheibe 8 x 14 x 1mm | ||||
| 155 | 253835-0 | 1.00 | 1.19 | |
| Verriegelungsarm | ||||
| 156 | 347221-6 | 2.40 | 2.86 | |
| Vorarmplatte | ||||
| 157 | 347222-4 | 1.00 | 1.19 | |
| Filzring 30 | ||||
| 158 | 262076-7 | 2.40 | 2.86 | |
| Stange 16 | ||||
| 159 | 326994-4 | 2.40 | 2.86 | |
| Knopf 22 | ||||
| 160 | 271437-0 | 1.00 | 1.19 | |
| Stoppring E-7 | ||||
| 161 | 961013-5 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 162 | 266034-5 | 1.00 | 1.19 | |
| Kompletter Unterarm Ls1019L | ||||
| 163 | 144531-0 | 75.90 | 90.32 | |
| Gummistift 6 | ||||
| 163C10 | 263005-3 | 1.00 | 1.19 | |
| Druckfeder 4 | ||||
| 164 | 231314-8 | 1.00 | 1.19 | |
| Stift 4 | ||||
| 165 | 256364-2 | 1.00 | 1.19 | |
| Druckfeder 10 | ||||
| 166 | 232384-0 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 167 | 326977-4 | 1.20 | 1.43 | |
| Abdeckhaube | ||||
| 168 | 457653-0 | 6.00 | 7.14 | |
| Komplette Halterung Ls1019L | ||||
| 169 | 144658-6 | 11.00 | 13.09 | |
| Anzeigeetikett | ||||
| 169C10 | 812X89-8 | 2.40 | 2.86 | |
| Flachkopfschraube M5 | ||||
| 170 | 265008-3 | 1.20 | 1.43 | |
| Riemenscheibe 17-19.3 | ||||
| 171 | 222191-9 | 6.00 | 7.14 | |
| Kugellager 6900llb | ||||
| 172 | 210057-5 | 3.60 | 4.28 | |
| BORGRING 15 DLS211Z A | ||||
| 173 | 267804-5 | 1.00 | 1.19 | |
| Sicherungsring 15 Hr2230 A | ||||
| 173 | I55213 | 0.83 | 0.99 | |
| Gelenkwelle (a) | ||||
| 174 | 326975-8 | 2.40 | 2.86 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 175 | 210167-8 | |||
| Schraube m8x12 | ||||
| 177 | 913416-9 | 1.00 | 1.19 | |
| Schlüsselklemme | ||||
| 178 | 416536-3 | 2.40 | 2.86 | |
| Gewindeschraube M4x12mm Ck | ||||
| 179 | 266026-4 | 1.00 | 1.19 | |
| Spannstift 4-14 | ||||
| 180 | 951107-4 | 1.00 | 1.19 | |
| Griff 50 B | ||||
| 181 | 273016-0 | 6.00 | 7.14 | |
| Bolzen | ||||
| 182 | 265919-2 | 3.60 | 4.28 | |
| Met. Schraube M6 | ||||
| 183 | 251545-3 | 1.00 | 1.19 | |
| Stopper Pal Ls1019L | ||||
| 184 | 144657-8 | 2.40 | 2.86 | |
| Anzeigeetikett | ||||
| 184C10 | 812X87-2 | 2.40 | 2.86 | |
| Unterlegscheibe 20 | ||||
| 185 | 253948-7 | 1.00 | 1.19 | |
| Unterlegscheibe 8 x 14 x 1mm | ||||
| 186 | 253835-0 | 1.00 | 1.19 | |
| Schraube M6 | ||||
| 187 | 251267-5 | 1.00 | 1.19 | |
| Stift 9-365 | ||||
| 188 | 326987-1 | 2.40 | 2.86 | |
| Sicherungsscheibe 5 | ||||
| 189 | 253194-2 | 1.00 | 1.19 | |
| Bus 5 | ||||
| 190 | 257426-9 | 1.00 | 1.19 | |
| Unterlegscheibe 8 | ||||
| 191 | 253165-9 | 1.00 | 1.19 | |
| Gehäuse 20 | ||||
| 192 | 457666-1 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 193 | 326977-4 | 1.20 | 1.43 | |
| Riemenscheibe 17-87.8 | ||||
| 194 | 222192-7 | 6.00 | 7.14 | |
| Sechskantmutter M10-19 | ||||
| 195 | 326980-5 | 2.40 | 2.86 | |
| Antriebsriemen 15-756 | ||||
| 196 | 225101-5 | 19.80 | 23.56 | |
| Druckfeder 10 | ||||
| 197 | 232384-0 | 1.00 | 1.19 | |
| Unterlegscheibe 10 | ||||
| 198 | 253388-9 | 1.00 | 1.19 | |
| Sechskantmutter M10-17 | ||||
| 199 | 252244-0 | 2.40 | 2.86 | |
| Ring 10 | ||||
| 200 | 253024-7 | 1.00 | 1.19 | |
| Drucknadellager 1023 | ||||
| 202 | 216413-7 | 3.60 | 4.28 | |
| Ring 10 | ||||
| 203 | 253024-7 | 1.00 | 1.19 | |
| Drucknadellager 1023 | ||||
| 204 | 216413-7 | 3.60 | 4.28 | |
| Stoppring E-7 | ||||
| 205 | 961013-5 | 1.00 | 1.19 | |
| Knopf 22 | ||||
| 206 | 271437-0 | 1.00 | 1.19 | |
| Ring 10 | ||||
| 207 | 253024-7 | 1.00 | 1.19 | |
| Kompletter Arm Ls1019L | ||||
| 208 | 144530-2 | 93.50 | 111.26 | |
| Anzeigeetikett | ||||
| 208C10 | 812X88-0 | 2.40 | 2.86 | |
| Innensechskantschraube M8x25 | ||||
| 209 | 251547-9 | 1.00 | 1.19 | |
| Anzeigeetikett R | ||||
| 210 | 457871-0 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 211 | 266026-4 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 212 | 266034-5 | 1.00 | 1.19 | |
| Druckknopf | ||||
| 213 | 415208-7 | 2.40 | 2.86 | |
| Druckfeder 12 | ||||
| 214 | 233031-6 | 1.00 | 1.19 | |
| Staubschienenhalter | ||||
| 215 | 457654-8 | 3.60 | 4.28 | |
| Anzeigeetikett L | ||||
| 216 | 457870-2 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 217 | 266026-4 | 1.00 | 1.19 | |
| Unterlegscheibe 94 | ||||
| 218 | 253389-7 | 1.00 | 1.19 | |
| Staubführung | ||||
| 219 | 422156-3 | 6.00 | 7.14 | |
| Stopper | ||||
| 220 | 319593-9 | 3.60 | 4.28 | |
| Torsionsfeder 14 | ||||
| 221 | 231646-3 | 1.00 | 1.19 | |
| Unterlegscheibe 12 | ||||
| 222 | 253744-3 | 1.00 | 1.19 | |
| Sicherungsring S-12 | ||||
| 223 | 961052-5 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 224 | 266026-4 | 1.00 | 1.19 | |
| Halter | ||||
| 225 | 457668-7 | 1.00 | 1.19 | |
| AANSLAG BOVEN RECHTS | ||||
| 226 | 144650-2 | 13.00 | 15.47 | |
| Warnschild | ||||
| 226C10 | 810503-4 | 2.40 | 2.86 | |
| AANSLAG BOVEN LINKS | ||||
| 227 | 144646-3 | 13.00 | 15.47 | |
| Warnschild | ||||
| 227C10 | 810503-4 | 2.40 | 2.86 | |
| Innensechskantschraube M8X35 Mit Wr | ||||
| 228 | 922458-2 | 1.00 | 1.19 | |
| Flügelschraube 6x10 | ||||
| 229 | 924306-1 | 1.20 | 1.43 | |
| Flügelschraube M6X10mm | ||||
| 229 | 251887-5 | 1.20 | 1.43 | |
| Inbusschraube M10x12 | ||||
| 230 | 251561-5 | 1.00 | 1.19 | |
| Hinterlineal | ||||
| 231 | 319565-4 | 49.50 | 58.90 | |
| Gewindeschraube M4x12mm Ck | ||||
| 232 | 266026-4 | 1.00 | 1.19 | |
| Einsatzplatte | ||||
| 233 | 451013-8 | 3.60 | 4.28 | |
| Sechskantschraube 8x40 | ||||
| 235 | 265442-7 | 1.20 | 1.43 | |
| Unterlegscheibe 8 | ||||
| 236 | 253852-0 | 1.20 | 1.43 | |
| Drucknadellager 1023 | ||||
| 237 | 216413-7 | 3.60 | 4.28 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 239 | 812X86-4 | |||
| Innensechskantschraube M8x25 | ||||
| 240 | 251547-9 | 1.00 | 1.19 | |
| Innensechskantschraube M8x25 | ||||
| 241 | 251547-9 | 1.00 | 1.19 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 243 | 813L22-1 | |||
| Gewindeschraube M4x12mm Ck | ||||
| 244 | 266026-4 | 1.00 | 1.19 | |
| Anzeigeetikett | ||||
| 245 | 457702-3 | 1.00 | 1.19 | |
| SPERRSTIFT 8 | ||||
| 246 | 326970-8 | 1.20 | 1.43 | |
| Druckfeder 6 | ||||
| 247 | 234122-6 | 1.20 | 1.43 | |
| Sperrhebel | ||||
| 249 | 457657-2 | 1.00 | 1.19 | |
| Unterlegscheibe 6 | ||||
| 250 | 253804-1 | 1.00 | 1.19 | |
| Sprengring E-5 | ||||
| 251 | 961018-5 | 1.00 | 1.19 | |
| Drehplatte komplett Ls1019L | ||||
| 252 | 144654-4 | 146.30 | 174.10 | |
| Warnschild | ||||
| 253 | 812X85-6 | 2.40 | 2.86 | |
| Verlängerungsstab | ||||
| 254 | 326973-2 | 2.40 | 2.86 | |
| Kappe | ||||
| 255 | 286039-9 | 1.00 | 1.19 | |
| Zentrierbolzen | ||||
| 256 | 326976-6 | 2.40 | 2.86 | |
| Schraube 4X10 | ||||
| 257 | 911113-1 | 1.00 | 1.19 | |
| Druckfeder 6 | ||||
| 258 | 231325-3 | 1.00 | 1.19 | |
| Drehstopp | ||||
| 259 | 310803-7 | 1.20 | 1.43 | |
| Hebelplatte | ||||
| 260 | 347217-7 | 3.60 | 4.28 | |
| Stift 5 | ||||
| 261 | 256186-0 | 1.20 | 1.43 | |
| Schraube 5X18 | ||||
| 262 | 911230-7 | 1.20 | 1.43 | |
| Anschlag | ||||
| 263 | 347219-3 | 1.20 | 1.43 | |
| Verriegelungsstange | ||||
| 264 | 326971-6 | 1.20 | 1.43 | |
| Sperrhebel | ||||
| 265 | 457656-4 | 2.40 | 2.86 | |
| Haltestift Kompl. C8fs (inkl.pos.nr.44), C8fse In | ||||
| 266 | 326969-3 | 2.40 | 2.86 | |
| Stift 3 | ||||
| 267 | 256158-5 | 1.20 | 1.43 | |
| Druckfeder 6 | ||||
| 268 | 231325-3 | 1.00 | 1.19 | |
| Steuerplatte | ||||
| 269 | 347237-1 | 1.00 | 1.19 | |
| Pinhalter | ||||
| 270 | 319592-1 | 3.60 | 4.28 | |
| Sechskantschraube 5X20 LF1000 A | ||||
| 271 | 265550-4 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 272 | 347216-9 | 2.40 | 2.86 | |
| Stab 6 | ||||
| 274 | 326972-4 | 1.20 | 1.43 | |
| Sprengring E-4 | ||||
| 275 | 961011-9 | 1.00 | 1.19 | |
| Unterlegscheibe 15 | ||||
| 276 | 257425-1 | 1.00 | 1.19 | |
| Sicherungsscheibe 5 | ||||
| 277 | 253194-2 | 1.00 | 1.19 | |
| Sechskantschraube 5X20 LF1000 A | ||||
| 278 | 265550-4 | 1.00 | 1.19 | |
| Schraube 4X10 | ||||
| 279 | 911113-1 | 1.00 | 1.19 | |
| Blockiergriff komplett | ||||
| 280 | 144656-0 | 1.00 | 1.19 | |
| Gummistift 6 | ||||
| 280C10 | 263005-3 | 1.00 | 1.19 | |
| Schraube 3x8 | ||||
| 281 | 911008-8 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 282 | 345272-3 | 1.20 | 1.43 | |
| Griff 50 A | ||||
| 283 | 273015-2 | 6.00 | 7.14 | |
| Gewindeschraube M4x12mm Ck | ||||
| 284 | 266026-4 | 1.00 | 1.19 | |
| Führungsplatte | ||||
| 285 | 457655-6 | 2.40 | 2.86 | |
| Schaalverdeling | ||||
| 286 | 347412-9 | 7.20 | 8.57 | |
| Metallschraube M5 | ||||
| 287 | 251546-1 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 288 | 347218-5 | 3.60 | 4.28 | |
| Schraube M5x16mm | ||||
| 289 | 265786-5 | 1.00 | 1.19 | |
| Fußsohle LS1019/DLS111 A | ||||
| 290 | 310891-4 | 112.20 | 133.52 | |
| Fußkappe | ||||
| 291 | 421845-7 | 1.20 | 1.43 | |
| 4 Unterlegscheibe | ||||
| 292 | 267195-4 | 1.20 | 1.43 | |
| Gewindeschraube M4x12mm Ck | ||||
| 293 | 266026-4 | 1.00 | 1.19 | |
| Halter | ||||
| 294 | 326978-2 | 6.00 | 7.14 | |
| Sprengring E-9 | ||||
| 295 | 961015-1 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 296 | 266026-4 | 1.00 | 1.19 | |
| Inbusschraube 4x6 | ||||
| 297 | 266318-1 | 1.00 | 1.19 | |
| Sechskantmutter M4 | ||||
| 298 | 931102-0 | 1.00 | 1.19 | |
