Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita G4300IS'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

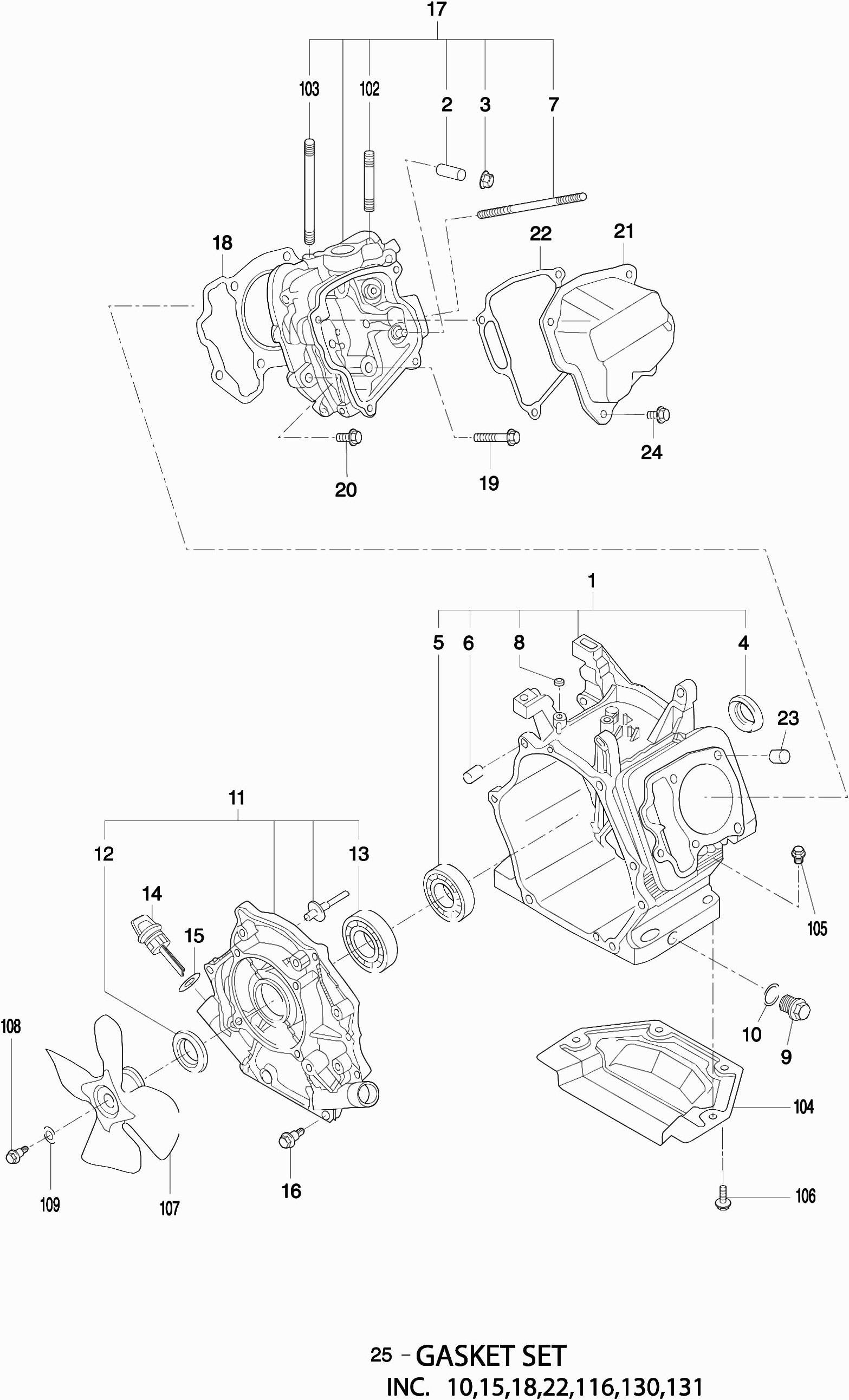

Zeichnungen der Makita G4300IS
Teileliste der Makita G4300IS
Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
Keine Informationen verfügbar, nicht bestellbar | ||||
001-2 | 2791012201 | |||
Ventilführung | ||||
002 | 2371420203 | 33.35 | 39.69 | |
Ventildichtung | ||||
003 | 2771601001 | 4.45 | 5.30 | |
Öldichtung 30X45X7 G4300L | ||||
004 | 0440300160 | 11.84 | 14.09 | |
Kugellager 6206 G4300L * | ||||
005 | 0600300341 | 17.40 | 20.71 | |
Passbuchse 10 10.3X8.5X14 Eg241 * | ||||
006 | 2771501103 | 0.83 | 0.99 | |
Stütze M6X107 G4300L * | ||||
007 | 0105060410 | 3.44 | 4.09 | |
Öldichtung 6X10X2,5 G4300L | ||||
008 | 0440060020 | 5.09 | 6.06 | |
Carterstecker Eg-Reihe | ||||
009 | 0401140030 | 2.48 | 2.95 | |
Dichtung G2400-3500-550 | ||||
010 | 0211140020 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
011-2 | 2791100141 | |||
Öldichtung 30X45X7 G4300L | ||||
012 | 0440300160 | 11.84 | 14.09 | |
Kugellager 6206 G4300L | ||||
013 | 0600300370 | 17.40 | 20.71 | |
Ölmessstab | ||||
014-2 | 2796360130 | 5.70 | 6.78 | |
Dichtung Ölmessstab G6100R A | ||||
015-2 | 0213200050 | 1.99 | 2.37 | |
Flanschbolzen G4300L * | ||||
016 | 0010408350 | 1.39 | 1.65 | |
Zylinderkopf G4300L * | ||||
017 | 2791300501 | 169.36 | 201.54 | |
Zylinderkopfdichtung | ||||
018-1 | 2791500133 | 11.34 | 13.49 | |
Flanschbolzen M8X68 G4300L * | ||||
019 | 0110080240 | 3.54 | 4.21 | |
Flanschbolzen M8X33 G4300L * | ||||
020 | 0110080310 | 2.02 | 2.40 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
021-2 | 2771550311 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
022-2 | 2771600123 | |||
Passbuchse 10 10.3X8.5X14 Eg241 * | ||||
023 | 2771501103 | 0.83 | 0.99 | |
Flanschbolzen G24/35/5500 | ||||
024 | 0110060020 | 1.67 | 1.99 | |
Dichtungsset | ||||
025-2 | 2799900137 | 17.40 | 20.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
026 | 2792070141 | |||
Flanschmutter M18 G4300L * | ||||
027 | 0180180010 | 7.21 | 8.58 | |
Einlegkeil G2400-3500-1R | ||||
028 | 0323030010 | 3.11 | 3.70 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
029-1 | 2792250130 | |||
Pleuelstange Bolzen M7x13.8 | ||||
030 | 2792300103 | 3.97 | 4.72 | |
Kolbenbolzen G4300L * | ||||
031 | 2792330103 | 8.21 | 9.77 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
032-1 | 27923401H3 | |||
Kolben 75 (0,25) G4300L * | ||||
032A | 2792340303 | 38.72 | 46.08 | |
Kolben 75 (0,50) | ||||
032B | 2792340403 | 38.72 | 46.08 | |
Kolbenringsatz 75 (0,25) G4300* | ||||
033A | 2792351217 | 55.67 | 66.25 | |
Kolbenringsatz 75 (0,50) | ||||
033B | 2792351317 | 55.67 | 66.25 | |
Sicherungsring Eg441A | ||||
034 | 0565180010 | 1.00 | 1.19 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
035-4 | 2793160251 | |||
Nockenwellenstift Eg241A A | ||||
036-1 | 2773510101 | 11.84 | 14.09 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
037 | 0240060010 | |||
Stift 4mm G4300L * | ||||
038 | 2773860103 | 1.00 | 1.19 | |
Freilaufhaken G4300L | ||||
039-1 | 2793640113 | 13.83 | 16.46 | |
Sicherungsring 13,8 mm G4300L * | ||||
040 | 2773650103 | 1.20 | 1.43 | |
Rückholfeder | ||||
041-3 | 2773870333 | 1.67 | 1.99 | |
Ventilfeder | ||||
042 | 2793360103 | 3.44 | 4.09 | |
Rückholfeder | ||||
043 | 2693370103 | 5.09 | 6.06 | |
Einlassventil | ||||
044-1 | 27933401H3 | 19.29 | 22.96 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
045-2 | 22E3350103 | |||
Rückschlagventil | ||||
046 | 13210KA031 | 1.39 | 1.65 | |
Nockenwellenkette | ||||
047-1 | 27935602H1 | 30.69 | 36.52 | |
Nockenwellenkette | ||||
048-1 | 20A3691103 | 3.12 | 3.71 | |
Zugfeder | ||||
049 | 2773710103 | 3.12 | 3.71 | |
Stift 6x13x34mm | ||||
050 | 2773690203 | 3.44 | 4.09 | |
Kettenschutz | ||||
051-1 | 20A3691303 | 2.71 | 3.22 | |
Kipphebelstift | ||||
052-1 | 2773500401 | 3.54 | 4.21 | |
Sprengring G28/4300L * | ||||
053 | 0031305000 | 0.83 | 0.99 | |
Ventilwippe | ||||
054 | 2773620100 | 25.36 | 30.18 | |
Wippe | ||||
055 | 2773620200 | 23.04 | 27.42 | |
Einstellschraube M5 G28/4300L * | ||||
056 | 0149050020 | 2.71 | 3.22 | |
Einstellschraube M5 G28/4300L * | ||||
057 | 0149050020 | 2.71 | 3.22 | |
Mutter M5 G28/4300L * | ||||
058 | 0170050030 | 1.00 | 1.19 | |
Mutter M5 G28/4300L * | ||||
059 | 0170050030 | 1.00 | 1.19 | |
Flanschbolzen G24/35/5500 | ||||
060 | 0110060020 | 1.67 | 1.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
061 | 2774860103 | |||
Sprengring G28/4300L * | ||||
062 | 0031305000 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
063 | 2797926111 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
064 | 2797943101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
065 | 2677100203 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
066 | 0011406250 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
067 | 27973105H1 | |||
Zündkerze Br6Hs | ||||
068 | 0650140150 | 10.99 | 13.08 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
069-2 | X655000271 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
070-3 | 2797630161 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
071 | 0011406160 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
072 | 0130060260 | |||
Drahtklemme G4300L * | ||||
073 | 2797550103 | 2.38 | 2.83 | |
Gewindebolzen G3501R | ||||
074 | 0152060050 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
075 | 2797050200 | |||
Komplettes Gehäuse | ||||
076 | 2097055008 | 299.24 | 356.10 | |
Kohlebürste | ||||
077 | 2097055108 | 19.29 | 22.96 | |
Kohlefeder | ||||
078 | 2097054508 | 4.45 | 5.30 | |
Bürstenhalter | ||||
079 | 2097053008 | 63.68 | 75.78 | |
Zwischenplatte | ||||
080 | 2097055208 | 15.65 | 18.62 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
081 | 2097055408 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
082 | 2097052108 | |||
Antriebsrad G3501r A | ||||
083 | 2347055508 | 21.23 | 25.26 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
084 | 2797055008 | |||
Hülse | ||||
085 | 2097051108 | 15.65 | 18.62 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
086 | 2097050518 | |||
Hülse | ||||
087 | 2097051008 | 15.65 | 18.62 | |
Starthebel | ||||
088 | 2097052508 | 17.40 | 20.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
089 | 2797051508 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
090 | 2097055718 | |||
Bolzen | ||||
091 | 2097055808 | 5.09 | 6.06 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
092-1 | 4929970-02 | |||
Bolzen | ||||
093 | 2097055808 | 5.09 | 6.06 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
094 | 1077065208 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
095 | 2117058408 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
096 | 2797651111 | |||
Bolzen | ||||
097 | 2147900701 | 2.38 | 2.83 | |
Flanschbolzen G24/35/5500 | ||||
098 | 0110060020 | 1.67 | 1.99 | |
Unterlegscheibe G3501-5501R | ||||
099 | 0031008000 | 0.83 | 0.99 | |
Mutter G3501R | ||||
100 | 0021708000 | 0.83 | 0.99 | |
Unterlegscheibe G2400-3500-550 | ||||
101 | 0032008000 | 0.83 | 0.99 | |
Auspuffbolzen * | ||||
102 | 0105080290 | 1.39 | 1.65 | |
Bolzen M8X120 G4300L * | ||||
103 | 0105080440 | 7.21 | 8.58 | |
Montageplatte G4300L * | ||||
104 | 33D3500101 | 19.29 | 22.96 | |
Flanschbolzen M8X33 G28/4300L * | ||||
105 | 0110080270 | 1.39 | 1.65 | |
Flanschbolzen M8X12 G28/4300L * | ||||
106 | 0110080150 | 2.38 | 2.83 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
107 | 34J5410101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
108 | 0011410250 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
109 | 0200080080 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
110-2 | 2793041161 | |||
Montageplatte G4300L * | ||||
111 | 33D5260103 | 55.67 | 66.25 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
113 | 0023808000 | |||
Flanschbolzen G4300L * | ||||
114 | 0110080320 | 1.39 | 1.65 | |
Schraubenbolzen G2400-3500-550 * | ||||
115 | 0110060010 | 1.39 | 1.65 | |
Auspuffdichtung | ||||
116 | 2773520113 | 2.38 | 2.83 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
117-1 | 0023808000 | |||
Zwischenflansch G4300L * | ||||
118 | 2793920103 | 3.97 | 4.72 | |
Funkenfängerkappe G4300L * | ||||
119-1 | 2773721003 | 8.27 | 9.84 | |
Schraube Eh561 * | ||||
120 | 0043505160 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
121-1 | 264035-7 | |||
Luftfilter G4300L * | ||||
122-1 | 2793262210 | 117.63 | 139.98 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
123-1 | 2793263518 | |||
Dichtung | ||||
124-1 | 2793265018 | 6.70 | 7.97 | |
Filterabdeckung | ||||
125 | 2793264608 | 41.84 | 49.79 | |
Luftfilterelement | ||||
126 | 2793261208 | 16.35 | 19.46 | |
Mutter M/Niet G28/6100R | ||||
127 | 0023806000 | 1.20 | 1.43 | |
Gummischlauch G2400-3501-350 | ||||
128 | 0851080000 | 13.83 | 16.46 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
129-1 | 2793291013 | |||
Dichtung | ||||
130-1 | 27935902J3 | 1.39 | 1.65 | |
Dichtung | ||||
131-1 | 27935903J3 | 1.20 | 1.43 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
132 | 2793970103 | |||
Halterung G4300L * | ||||
133 | 2793900401 | 10.52 | 12.52 | |
Bolzen Eg241A A | ||||
134-1 | 0010406200 | 1.00 | 1.19 | |
Bolzen G28/32/4300L * | ||||
135 | 0110060150 | 1.39 | 1.65 | |
Schwungradgehäuse G4300L * | ||||
136 | 2795200113 | 154.08 | 183.36 | |
Bolzen M/Unterlegscheibe G4100R | ||||
137 | 0011406300 | 0.83 | 0.99 | |
Passhülse 8X10 G28/3200L * | ||||
139 | 9804008110 | 1.66 | 1.98 | |
Startvorrichtung cpl | ||||
140-4 | 2775040140 | 131.16 | 156.08 | |
Starterfeder G28/3200L * | ||||
141 | 2775040208 | 25.36 | 30.18 | |
Kabelaufroller G28/3200L * | ||||
142 | 2775040308 | 30.69 | 36.52 | |
Starterseil | ||||
143 | 2775040808 | 17.40 | 20.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
144-1 | 2775040918 | |||
Ausrichtungswerkzeug | ||||
145 | 2775040408 | 7.21 | 8.58 | |
Reibungsfeder | ||||
146 | 2775040508 | 17.40 | 20.71 | |
Friktionsteller | ||||
147 | 2775040708 | 8.27 | 9.84 | |
Sicherungsring | ||||
148 | 2775040608 | 10.52 | 12.52 | |
Schraube M6X18 G17/28/3200L * | ||||
149 | 0110060140 | 1.39 | 1.65 | |
Ventilator G4300L * | ||||
150 | 2795411003 | 25.36 | 30.18 | |
Zwischenplatte | ||||
151 | 2795270213 | 19.29 | 22.96 | |
Flanschbolzen G24/35/5500 | ||||
152 | 0110060020 | 1.67 | 1.99 | |
Antriebswelle G28/3200L * | ||||
153 | 2772440103 | 72.58 | 86.37 | |
Schraube M8X27 G28/3200L * | ||||
154 | 0110100110 | 2.02 | 2.40 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
155-2 | 2796233020 | |||
Drosselklappe G4300L * | ||||
156 | 2796253508 | 6.41 | 7.63 | |
Schraube G4300L * | ||||
157 | 2516245008 | 2.02 | 2.40 | |
Starterklappe | ||||
158 | 2796252608 | 5.70 | 6.78 | |
Schraube G4300L * | ||||
159 | 2516245008 | 2.02 | 2.40 | |
Düse G4300L * | ||||
160 | 2796242008 | 11.84 | 14.09 | |
Chokehebel G4300L * | ||||
161 | 2796252108 | 17.40 | 20.71 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
162-1 | 2796253118 | |||
Schraube G4300L * | ||||
163 | 2516245308 | 5.70 | 6.78 | |
Zeiger | ||||
164 | 2796250008 | 25.36 | 30.18 | |
Stift G4300L * | ||||
165 | 2796251508 | 1.39 | 1.65 | |
Schwimmerkammer G4300L * | ||||
166 | 2796255308 | 36.08 | 42.94 | |
Dichtung | ||||
167 | 2516235008 | 2.71 | 3.22 | |
Dichtung G4300L * | ||||
168 | 2796254008 | 7.22 | 8.59 | |
Schwimmer G4300L * | ||||
169 | 2796250508 | 30.69 | 36.52 | |
Hauptgasnadel | ||||
170 | 2796240008 | 10.52 | 12.52 | |
Schraube G4300L * | ||||
171 | 2846245608 | 1.20 | 1.43 | |
Drosselklappenfeder G4300L * | ||||
172 | 2796244708 | 5.09 | 6.06 | |
Schraube G4300L * | ||||
173 | 2796258108 | 11.84 | 14.09 | |
Führungsbuchse G4300L * | ||||
174 | 2796256108 | 3.97 | 4.72 | |
Einstellschraube G4300L * | ||||
175 | 2796235318 | 4.45 | 5.30 | |
Einstellschraubenfeder | ||||
176 | 2796244508 | 3.97 | 4.72 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
177 | 2796256508 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
178-1 | 2796244918 | |||
O-ring | ||||
179 | 2796245208 | 5.09 | 6.06 | |
O-ring | ||||
180 | 2796245108 | 5.09 | 6.06 | |
Gummischlauch G4300L * | ||||
181 | 2796259008 | 2.38 | 2.83 | |
Motor | ||||
182 | 2846258008 | 77.62 | 92.37 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
183-1 | 2846257618 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
184 | 2776259508 | |||
Schraube | ||||
185 | 2846245808 | 1.00 | 1.19 | |
Schraube | ||||
186 | 2846245708 | 1.20 | 1.43 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
187 | 2796260008 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
188-1 | 2846244618 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
189 | 2796257508 | |||
Schraube G4300L * | ||||
190 | 2796258008 | 2.02 | 2.40 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
192 | 34D2105101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
193 | 34D2105108 | |||
Federring Rbc415 | ||||
194 | 0032005000 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
195 | 34D2006101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
196 | 34B2100108 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
197 | 0100100200 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
198 | 0200100160 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
199 | 34B2307101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
200 | 0011406250 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
201-3 | KU51214401 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
202 | 34B5500103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
203-1 | 266494-1 | |||
Schraube | ||||
204 | 34K2090408 | 3.97 | 4.72 | |
Schraube | ||||
205 | 34K2090408 | 3.97 | 4.72 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
206-1 | 34J5730113 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
207-1 | 34B5730213 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
208-1 | 34B5730313 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
209-1 | 34B4810201 | |||
Schraube | ||||
210 | 34K2090508 | 3.97 | 4.72 | |
Kabelbinder | ||||
211 | 34K2090708 | 3.11 | 3.70 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
212 | 34J3000101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
213 | 33B3560201 | |||
Schraubenbolzen G2400-3500-550 * | ||||
214 | 0110060080 | 1.00 | 1.19 | |
Schraube G28/3200L * | ||||
215 | 0140060121 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
216 | 34J5310101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
217 | 34G5900503 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
218 | 34J5300201 | |||
Bolzen M/Unterlegscheibe Eg441A | ||||
219 | 0011408160 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
220 | 34G5900603 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
221-1 | 34G5550111 | |||
Montagegummi L G4300L * | ||||
222 | 32B3021401 | 23.04 | 27.42 | |
Montagegummi R G4300L * | ||||
223 | 32B3021301 | 23.04 | 27.42 | |
Montagegummi R G4300L * | ||||
224 | 32B3020301 | 21.23 | 25.26 | |
Montagegummi L G4300L * | ||||
225 | 32B3020401 | 21.23 | 25.26 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
226 | 0023808000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
227-1 | 34G5520111 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
228 | 34G5600210 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
229 | 34G5610213 | |||
Bolzen M/Unterlegscheibe Eg441A | ||||
230 | 0011408160 | 0.83 | 0.99 | |
Erdungskabel G28/3200L * | ||||
231 | 33B4809101 | 7.21 | 8.58 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
232 | 34B4809101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
233-1 | 34G5521121 | |||
Flanschbolzen G24/35/5500 | ||||
234 | 0110060020 | 1.67 | 1.99 | |
Flanschbolzen G24/35/5500 | ||||
235 | 0110060020 | 1.67 | 1.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
236 | 0031112000 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
237 | 0051030250 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
238 | 33B5800101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
239 | 33B4807211 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
240 | 33D3570103 | |||
Etikett (Erde) G28/3200L * | ||||
241 | 0732002651 | 2.71 | 3.22 | |
Kontakt Slot G3501-5501R A * | ||||
242-1 | 0660000331 | 77.62 | 92.37 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
243-1 | 0660009980 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
244-1 | 33B5000111 | |||
Gewindeschneidschraube G4100R | ||||
245 | 0150040070 | 0.83 | 0.99 | |
Kap G28/3200L * | ||||
246 | 33B4600103 | 5.09 | 6.06 | |
Unterlegscheibe | ||||
247 | 0031004000 | 0.83 | 0.99 | |
Beugel G28/3200L * | ||||
248-1 | 33B4601211 | 11.84 | 14.09 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
249 | 0043606160 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
250 | 33B4710101 | |||
Flanschbolzen G24/35/5500 | ||||
251 | 0110060020 | 1.67 | 1.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
252 | 34B4800201 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
253 | 33B4805201 | |||
Abdichtungsschwamm G28/3200L * | ||||
254 | 34B5731103 | 2.71 | 3.22 | |
Schraube G2400-3500-55* | ||||
255 | 3534990408 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
256-2 | 34D4571470 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
257 | 33B4500901 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
258-1 | 34B4911513 | |||
Durchführung G28/3200L * | ||||
259 | 2277500103 | 1.39 | 1.65 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
260 | 3584062108 | |||
Schraube G2400-5501R | ||||
261 | 0043603120 | 0.83 | 0.99 | |
Mutter G2400R-Etc | ||||
262 | 0021703000 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
263-2 | KU31177041 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
264 | 0131040080 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
265-1 | KU31177041 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
266-2 | 0131040080 | |||
Mutter Rbl250 * | ||||
267-1 | 0021704000 | 0.83 | 0.99 | |
Zündschalter. 3200L *A | ||||
268-1 | 33K4181203 | 11.84 | 14.09 | |
Drehknopf | ||||
269-2 | 33K4201003 | 5.09 | 6.06 | |
Nicht mehr lieferbar, kein Ersatz | ||||
270-1 | 33K4202003 | |||
Nicht mehr lieferbar, kein Ersatz | ||||
271-2 | 33K4203023 | |||
Montageblech | ||||
272-1 | 33B4601501 | 8.27 | 9.84 | |
Schraube M3X16 G28/3200L * | ||||
273-1 | 33K4181408 | 1.00 | 1.19 | |
Gewindeschneidschraube G4100R | ||||
274-1 | 0150040070 | 0.83 | 0.99 | |
Sicherungsschalter Dc 10a | ||||
275-1 | 3524562008 | 23.04 | 27.42 | |
Schraube mit Unterlegscheibe | ||||
276-1 | 31B7901103 | 1.20 | 1.43 | |
Kontaktbolzen (Rot)(+) | ||||
277-1 | 3634570108 | 10.52 | 12.52 | |
Kontaktschraube (schwarz)(-) | ||||
278-1 | 3634570008 | 10.52 | 12.52 | |
Schraube M5X18 G28/3200L * | ||||
279-1 | 3888800103 | 1.20 | 1.43 | |
Federscheibe | ||||
280-1 | 3320005008 | 0.83 | 0.99 | |
Ring | ||||
281-1 | 3534990308 | 0.83 | 0.99 | |
Mutter | ||||
282-1 | 3534990208 | 1.00 | 1.19 | |
Sicherungsring G4100R | ||||
283-1 | 0033005000 | 1.00 | 1.19 | |
Fluegelmutter | ||||
284-1 | 3534990108 | 5.09 | 6.06 | |
Drosselkabel G28/3200L * | ||||
285-1 | 33B4602101 | 12.22 | 14.54 | |
Schraube G28/3200L | ||||
286-1 | 0140060190 | 0.83 | 0.99 | |
Kabelbinder G28/3200L | ||||
287-1 | 0563000020 | 2.02 | 2.40 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
288-1 | 34J9001713 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
289-1 | 34K9211003 | |||
Untere Abdeckkappe G28/3200L * | ||||
290-1 | 33B5010101 | 32.15 | 38.26 | |
Montageplatte G28/3200L * | ||||
291-1 | 33B3550101 | 36.08 | 42.94 | |
Rückdeckel G28/3200L * | ||||
292-1 | 33B5050101 | 33.35 | 39.69 | |
Flanschbolzen M6X18 G28/3200L * | ||||
293-1 | 0110060180 | 1.39 | 1.65 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
294-1 | 0011106250 | |||
Mutter M/Niet G28/6100R | ||||
295-1 | 0023806000 | 1.20 | 1.43 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
296-1 | 34B5731003 | |||
Abdichtungsschwamm G28/3200L * | ||||
297-1 | 34B5731103 | 2.71 | 3.22 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
298-1 | 34J5100201 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
299 | 34J5510103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
300-2 | 34J5110201 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
301-2 | 34J5510103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
302-1 | 34G5530301 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
303-1 | 34G5530401 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
304-1 | 34J5900113 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
305-3 | 34J5900213 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
306-2 | 34G5732103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
307-1 | 33B5621111 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
308-1 | 34J5605101 | |||
Dichtungsgummi G28/3200L * | ||||
309-1 | 33B5700503 | 3.44 | 4.09 | |
Flanschbolzen M6X18 G28/3200L * | ||||
310-2 | 0110060180 | 1.39 | 1.65 | |
Schraubenbolzen G2400-3500-550 * | ||||
311-1 | 0110060080 | 1.00 | 1.19 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
312-1 | 33B5710513 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
313-2 | 33B5710403 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
314-1 | 34J5732103 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
315-1 | 34G5500111 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
316-1 | 34G5500201 | |||
Schraube & Unterlegscheibe G1700I | ||||
317-1 | 0043506100 | 0.83 | 0.99 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
318-1 | 34J9101713 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
319-1 | 34J9201713 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
320-1 | 33B9713213 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
321-1 | 34J9610613 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
322-1 | 0732005390 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
323-1 | 34K9211003 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
324-1 | 33D5610101 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
325-1 | 33D5610201 | |||
Schraubenbolzen G2400-3500-550 * | ||||
326-1 | 0110060010 | 1.39 | 1.65 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
327-1 | 33B5700303 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
328-1 | 33B5700403 | |||
Keine Informationen verfügbar, nicht bestellbar | ||||
329-1 | 34J5720103 | |||
Tank G4300L # | ||||
330-1 | 33D6010211 | 200.10 | 238.12 | |
Tankkappe G2800R | ||||
331-1 | 0430590011 | 36.05 | 42.90 | |
Benzinfilter Eg-Serie | ||||
332-1 | 0641540011 | 11.84 | 14.09 | |
Benzinmessgerät G2800L | ||||
333-1 | 0648001500 | 38.75 | 46.11 | |
Benzinhahn G2800L | ||||
334-1 | 0642010300 | 30.69 | 36.52 | |
Benzinhahnfilter G2800L | ||||
335-1 | 0642009320 | 2.36 | 2.81 | |
Dichtung für Benz. Kr. G4100R | ||||
336-1 | 0642006410 | 1.39 | 1.65 | |
Benzin Sichtglas G4100R | ||||
337-1 | 0642007810 | 4.67 | 5.56 | |
Schraube für Benz. Kr. G4100R * | ||||
338-1 | 0642004790 | 1.00 | 1.19 | |
Flanschbolzen G24/35/5500 | ||||
339-1 | 0110060020 | 1.67 | 1.99 | |
Kraftstoffschlauch G3500/01/5501 * | ||||
340-1 | 0851060000 | 25.36 | 30.18 | |
Gummischlauch G4300L * | ||||
341-1 | 0851070040 | 4.44 | 5.28 | |
Hitzeschild G2800L * | ||||
342-1 | 2511730203 | 10.52 | 12.52 | |
Schlauchschelle 11Mm P | ||||
343-1 | 0561110020 | 1.20 | 1.43 | |
Schlauchschelle 13Mm | ||||
344-1 | 0561130010 | 1.00 | 1.19 | |
Bolzen Eg241A | ||||
345-1 | 0110060220 | 2.38 | 2.83 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
346 | 34G5733103 | |||
Gummi ring (tank) | ||||
346-1 | 3913900013 | 3.54 | 4.21 | |
Keine Informationen verfügbar, nicht bestellbar | ||||
347 | 34G5733203 | |||
Gefahrenetikett G2800L * | ||||
347-1 | 33B9710213 | 8.27 | 9.84 |
