Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita HR3011FC'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

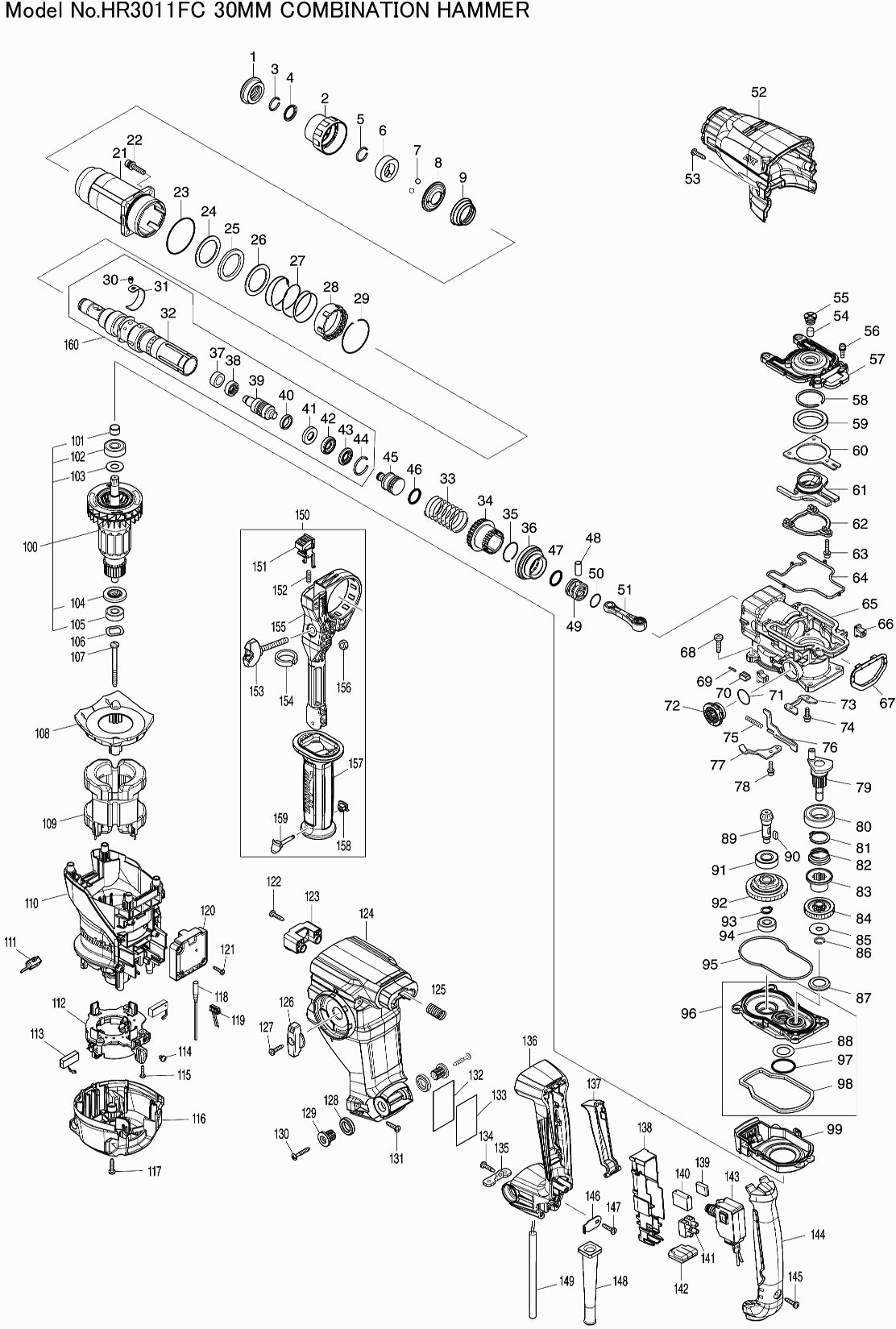

Zeichnungen der Makita HR3011FC
Teileliste der Makita HR3011FC
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Gummistaubkappe 35 | ||||
| 001 | 286288-8 | 1.20 | 1.43 | |
| Bohrfutterkappe HR3001/11C | ||||
| 002 | 459685-3 | 2.40 | 2.86 | |
| Unterlegscheibe 14 | ||||
| 003 | 233989-9 | 1.00 | 1.19 | |
| Niete 16mm | ||||
| 004 | 346834-0 | 1.21 | 1.44 | |
| Sicherungsring 15 | ||||
| 005 | 233992-0 | 1.00 | 1.19 | |
| Unterlegscheibe 17 HR3001/11 | ||||
| 006 | 327269-4 | 4.80 | 5.71 | |
| Stahlkugel 7.0 | ||||
| 007 | 216022-2 | 1.00 | 1.19 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 008 | 347553-1 | |||
| Druckfeder 21-34 HR3001/11 | ||||
| 009 | 232503-8 | 1.00 | 1.19 | |
| Zylindergehäuse HR3001/11C | ||||
| 021 | 140J35-0 | 14.30 | 17.02 | |
| Öldichtung 25 | ||||
| 021C10 | 213636-8 | 4.80 | 5.71 | |
| Inbusschraube M5x25mm HR3011FC | ||||
| 022 | 266793-1 | 1.00 | 1.19 | |
| O-Ring 46 | ||||
| 023 | 213620-3 | 1.20 | 1.43 | |
| Niete 31 | ||||
| 024 | 267354-0 | 1.00 | 1.19 | |
| Gummiring 31 HR3001/11C | ||||
| 025 | 422493-5 | 2.40 | 2.86 | |
| Niete 31 | ||||
| 026 | 267354-0 | 1.00 | 1.19 | |
| Druckfeder 37 HR3001/11 | ||||
| 027 | 232496-9 | 1.00 | 1.19 | |
| Sperrbuchse | ||||
| 028 | 419986-1 | 1.20 | 1.43 | |
| Unterlegscheibe 41 | ||||
| 029 | 233952-2 | 1.00 | 1.19 | |
| Kragenstift 4 HR3011FC | ||||
| 030 | 256598-7 | 1.20 | 1.43 | |
| Blattfeder HR3011FC | ||||
| 031 | 347501-0 | 1.00 | 1.19 | |
| Bohr-Meißelhalter HR3011FC | ||||
| 032 | 327277-5 | 30.80 | 36.65 | |
| Druckfeder 27 HR3001/11 | ||||
| 033 | 232497-7 | 1.00 | 1.19 | |
| Führungshülse HR3001/11 | ||||
| 034 | 327276-7 | 8.40 | 10.00 | |
| Sperrfeder 24 HR3001/11 | ||||
| 035 | 232501-2 | 1.00 | 1.19 | |
| Zahnrad 31 A HR3001/11 | ||||
| 036 | 226868-8 | 17.60 | 20.94 | |
| Bus 11 HR3011FC | ||||
| 037 | 327515-5 | 2.40 | 2.86 | |
| Unterlegscheibe 11 HR3011FC | ||||
| 038 | 327516-3 | 2.40 | 2.86 | |
| Schlagbolzen A HR3011FC | ||||
| 039 | 140S89-1 | 13.20 | 15.71 | |
| Dichtring 12 HR3011FC | ||||
| 040 | 213880-7 | 2.40 | 2.86 | |
| Unterlegscheibe 11 HR3011FC | ||||
| 041 | 327268-6 | 1.20 | 1.43 | |
| Stoßring 12 | ||||
| 042 | 424267-0 | 1.20 | 1.43 | |
| Unterlegscheibe 11 HR3011FC | ||||
| 043 | 327271-7 | 1.20 | 1.43 | |
| Scheibe 21 | ||||
| 044 | 231987-7 | 1.00 | 1.19 | |
| Schlagstück HR3001/11 | ||||
| 045 | 327266-0 | 3.60 | 4.28 | |
| O-Ring 16 HR3001/11 | ||||
| 046 | 213881-5 | 3.60 | 4.28 | |
| O-Ring 16 HR3001/11 | ||||
| 047 | 213881-5 | 3.60 | 4.28 | |
| Pin 7 HR3001/11 | ||||
| 048 | 268122-4 | 1.00 | 1.19 | |
| Kolben HR3001/11 | ||||
| 049 | 319807-6 | 4.80 | 5.71 | |
| O-Ring 16 | ||||
| 050 | 213226-7 | 1.20 | 1.43 | |
| Pleuel HR3001/11 | ||||
| 051 | 140J36-8 | 4.80 | 5.71 | |
| Zylinderkappe HR3011/12 | ||||
| 052 | 459167-5 | 7.20 | 8.57 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 053 | 265B67-9 | 1.00 | 1.19 | |
| Dämpfungsfilz | ||||
| 054 | 443153-6 | 1.00 | 1.19 | |
| Filterkappe HR3001/11 | ||||
| 055 | 459180-3 | 1.00 | 1.19 | |
| Sechskantschraube | ||||
| 056 | 922123-3 | 1.00 | 1.19 | |
| Kurbelgehäusedeckel HR3011/12 | ||||
| 057 | 319802-6 | 7.20 | 8.57 | |
| Sicherungsring | ||||
| 058 | 961140-8 | 1.20 | 1.43 | |
| Kugellager 6806ddw | ||||
| 059 | 211423-9 | 4.80 | 5.71 | |
| Lagersicherungsring B HR3001/11 | ||||
| 060 | 347500-2 | 1.20 | 1.43 | |
| Ausgleichsgewicht HR3001/11 | ||||
| 061 | 140J31-8 | 36.30 | 43.20 | |
| Ausgleichshalter HR3001/11 | ||||
| 062 | 310927-9 | 3.60 | 4.28 | |
| Innensechskantbolzen M4x20mm | ||||
| 063 | 266948-8 | 1.00 | 1.19 | |
| Dichtungsring B HR3001/11 | ||||
| 064 | 459182-9 | 1.20 | 1.43 | |
| Kurbelgehäuse cpl HR3001/11 | ||||
| 065 | 140J33-4 | 23.10 | 27.49 | |
| Montagebuchse | ||||
| 066 | 455165-7 | 1.00 | 1.19 | |
| Stoßkissen HR3001/11 | ||||
| 067 | 422492-7 | 1.20 | 1.43 | |
| Schraube 4x20 | ||||
| 068 | 266420-0 | 1.00 | 1.19 | |
| Druckfeder 2 HR3001/11 | ||||
| 069 | 232499-3 | 1.00 | 1.19 | |
| Druckplatte HR3001/11 | ||||
| 070 | 310929-5 | 1.00 | 1.19 | |
| O-Ring 18 | ||||
| 071 | 213262-3 | 1.20 | 1.43 | |
| Kupplungsplatte HR3001/11 | ||||
| 072 | 459175-6 | 2.40 | 2.86 | |
| Lagersicherungsscheibe A HR3001/11 | ||||
| 073 | 347497-5 | 1.20 | 1.43 | |
| Sechskantschraube | ||||
| 074 | 922123-3 | 1.00 | 1.19 | |
| Druckfeder 4 | ||||
| 075 | 234019-9 | 1.00 | 1.19 | |
| Verbindungsplatte | ||||
| 076 | 345814-3 | 1.00 | 1.19 | |
| Führungstafel HR3001/11 | ||||
| 077 | 347498-3 | 1.20 | 1.43 | |
| Sechskantschraube | ||||
| 078 | 922123-3 | 1.00 | 1.19 | |
| Kurbelwelle cpl HR3001/11 | ||||
| 079 | 140M22-7 | 10.80 | 12.85 | |
| Kugellager 6904 | ||||
| 080 | 211323-3 | 8.40 | 10.00 | |
| Sicherungsring S-20 | ||||
| 081 | 961060-6 | 1.00 | 1.19 | |
| Druckfeder 21-26 HR3001/11 | ||||
| 082 | 232498-5 | 1.00 | 1.19 | |
| Kupplung HR3001/11 | ||||
| 083 | 327273-3 | 3.60 | 4.28 | |
| Zahnrad 31 B HR3001/11 | ||||
| 084 | 226869-6 | 8.40 | 10.00 | |
| Niete 29 | ||||
| 085 | 267353-2 | 1.00 | 1.19 | |
| Sicherungsring | ||||
| 086 | 961034-7 | 1.00 | 1.19 | |
| Unterlegscheibe 16 | ||||
| 087 | 345818-5 | 1.00 | 1.19 | |
| 16 * Unterlegscheibe | ||||
| 088 | 253749-3 | 1.00 | 1.19 | |
| Zahnrad 8 HR3001/11 | ||||
| 089 | 226867-0 | 9.60 | 11.42 | |
| Federkeil 4 | ||||
| 090 | 254239-9 | 1.20 | 1.43 | |
| Kugellager 6001dw | ||||
| 091 | 211131-2 | 9.60 | 11.42 | |
| Drehmomentbegrenzer | ||||
| 092 | 125386-2 | 41.80 | 49.74 | |
| Sicherungsring S-10 | ||||
| 093 | 257408-1 | 1.20 | 1.43 | |
| Kugellager 608ddw | ||||
| 094 | 210005-4 | 4.80 | 5.71 | |
| Dichtungsring A HR3001/11 | ||||
| 095 | 459181-1 | 1.00 | 1.19 | |
| Getriebegehäuse HR3011/12 | ||||
| 096 | 136330-4 | 13.20 | 15.71 | |
| O-Ring 26 | ||||
| 097 | 213407-3 | 1.20 | 1.43 | |
| Schaumgummi HR3011FC | ||||
| 098 | 459183-7 | 1.00 | 1.19 | |
| Luftansaugung HR3001/12 | ||||
| 099 | 140J32-6 | 6.00 | 7.14 | |
| Anker HR3011/12 | ||||
| 100 | 515448-8 | 45.10 | 53.67 | |
| Hülse 10 | ||||
| 101 | 331775-3 | 1.20 | 1.43 | |
| Kugellager 6000llb | ||||
| 102 | 211061-7 | 8.40 | 10.00 | |
| Unterlegscheibe 10 | ||||
| 103 | 253171-4 | 1.00 | 1.19 | |
| Isolierring | ||||
| 104 | 681644-1 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 105 | 210005-4 | 4.80 | 5.71 | |
| Sicherungsring 15 DLS211Z A | ||||
| 106 | 267804-5 | 1.00 | 1.19 | |
| Gewindeschraube 5x60mm | ||||
| 107 | 266044-2 | 1.00 | 1.19 | |
| Zwischenplatte HR3001/11 | ||||
| 108 | 459172-2 | 1.20 | 1.43 | |
| Feld HR3001 | ||||
| 109 | 621899-6 | 26.40 | 31.42 | |
| Motorgehäuse HR3011/12 | ||||
| 110 | 459158-6 | 10.80 | 12.85 | |
| LED-Schaltkreis HR3001/11 | ||||
| 111 | 620C43-0 | 4.80 | 5.71 | |
| Kohlenbürstenhalter HR3001/11 | ||||
| 112 | 632N59-9 | 14.30 | 17.02 | |
| Kohlebürste CB-351 HR3011FC A | ||||
| 113 | 197244-2 | 7.20 | 8.57 | |
| Schraube 3.5X5 * | ||||
| 114 | 652044-2 | 1.00 | 1.19 | |
| Schraube M3x14 | ||||
| 115 | 266404-8 | 1.00 | 1.19 | |
| Rückabdeckung HR3011/12 | ||||
| 116 | 459169-1 | 6.00 | 7.14 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 117 | 265B67-9 | 1.00 | 1.19 | |
| Kabelbaum HR3011/12 | ||||
| 118 | 632P88-4 | 1.20 | 1.43 | |
| Kabelbaum HR3011/12 | ||||
| 119 | 632P89-2 | 2.40 | 2.86 | |
| Controller HR3011/12 | ||||
| 120 | 620C41-4 | 39.60 | 47.12 | |
| Schraube M3x14 | ||||
| 121 | 266404-8 | 1.00 | 1.19 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 122 | 265B67-9 | 1.00 | 1.19 | |
| Handgriffbuchse HR3001/11 | ||||
| 123 | 140M21-9 | 1.20 | 1.43 | |
| Gummistift 6 | ||||
| 123C10 | 263005-3 | 1.00 | 1.19 | |
| Handgriffbasis HR3011/12 | ||||
| 124 | 459161-7 | 7.20 | 8.57 | |
| Druckfeder 10 HR3001/11 | ||||
| 125 | 232500-4 | 1.00 | 1.19 | |
| Wechselschalter HR3001/11 | ||||
| 126 | 459174-8 | 1.20 | 1.43 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 127 | 265B67-9 | 1.00 | 1.19 | |
| Pufferring HR001G | ||||
| 128 | 459184-5 | 1.00 | 1.19 | |
| Schulterstift 5 HR3001/11 | ||||
| 129 | 459176-4 | 1.00 | 1.19 | |
| Selbstschneidende Schraube Pf 5x25 | ||||
| 130 | 266459-3 | 1.00 | 1.19 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 131 | 265B67-9 | 1.00 | 1.19 | |
| Namensschild HR3011FC | ||||
| 132 | 856V77-3 | 3.60 | 4.28 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 133 | 818U61-0 | |||
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 134 | 265B67-9 | 1.00 | 1.19 | |
| Sperrplatte HR3001/11 | ||||
| 135 | 347502-8 | 2.40 | 2.86 | |
| Handgriff HR3001/11 | ||||
| 136 | 459164-1 | 4.80 | 5.71 | |
| Schalterhebel HR3001/11 | ||||
| 137 | 459177-2 | 1.20 | 1.43 | |
| Schalterhalter HR3001/11 | ||||
| 138 | 459178-0 | 2.40 | 2.86 | |
| Anlaufwiderstand | ||||
| 139 | 646755-9 | 2.40 | 2.86 | |
| Kondensator 0,22uF | ||||
| 140 | 645190-8 | 2.40 | 2.86 | |
| Klemmstein | ||||
| 141 | 654531-7 | 2.10 | 2.50 | |
| Puffer HR3001/11 | ||||
| 142 | 424031-9 | 1.00 | 1.19 | |
| Schalter HR3001/11 | ||||
| 143 | 651385-3 | 22.00 | 26.18 | |
| Handgriffkappe HR3001/11 | ||||
| 144 | 459166-7 | 6.00 | 7.14 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 145 | 265B67-9 | 1.00 | 1.19 | |
| Zugentlastung | ||||
| 146 | 687169-3 | 1.00 | 1.19 | |
| SELBSTSCHNEIDENDE SCHRAUBE 4X18MM DGA520 A | ||||
| 147 | 265B67-9 | 1.00 | 1.19 | |
| Kabeltülle 10 | ||||
| 148 | 682573-1 | 2.40 | 2.86 | |
| Netzkabel 2x1.50 4.0mtr | ||||
| 149 | 695123-3 | 22.00 | 26.18 | |
| ZIJHANDGREEP COMBIHAMER | ||||
| 150 | 126882-3 | 12.00 | 14.28 | |
| Sperrknopf DHR281/283 | ||||
| 151 | 144959-2 | 1.20 | 1.43 | |
| Druckfeder 4 | ||||
| 152 | 233360-7 | 1.00 | 1.19 | |
| Flügelbolzen M6x50mm | ||||
| 153 | 265625-9 | 1.20 | 1.43 | |
| Schaumstoffgummi DHR281 | ||||
| 154 | 422258-5 | 1.00 | 1.19 | |
| ZIJHANDGREEP COMBIHAMER | ||||
| 155 | 126882-3 | 12.00 | 14.28 | |
| Sechskantmutter M6 | ||||
| 156 | 931302-2 | 1.00 | 1.19 | |
| ZIJHANDGREEP COMBIHAMER | ||||
| 157 | 126882-3 | 12.00 | 14.28 | |
| Abdeckkappe Handgruppe DHR281/283 | ||||
| 158 | 422255-1 | 1.20 | 1.43 | |
| Befestigungsstift h-gr DHR281/283 | ||||
| 159 | 161838-9 | 3.60 | 4.28 | |
| Bohrmeißel Halter HR3011/12 | ||||
| 160 | 136312-6 | 56.10 | 66.76 | |
