Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita LS004G'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

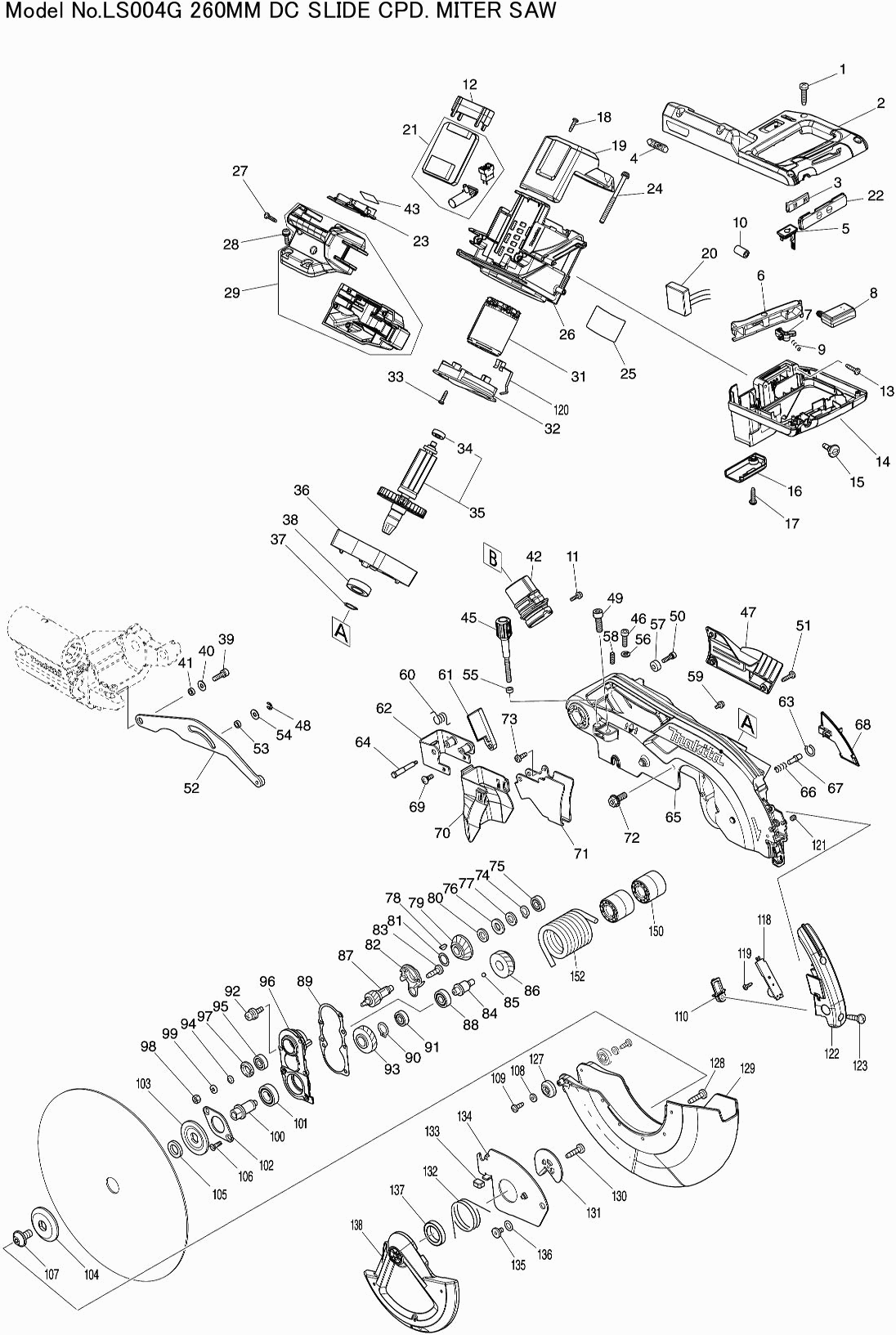

Zeichnungen der Makita LS004G
Teileliste der Makita LS004G
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Gewindebohrer 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.19 | |
| Griffabdeckung LS003/4G | ||||
| 002 | 183T58-5 | 12.10 | 14.40 | |
| Warnschild | ||||
| 002C10 | 810486-8 | 2.40 | 2.86 | |
| Schaltmodul Bub360 | ||||
| 003 | 631973-2 | 7.20 | 8.57 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 004 | 8032A7-2 | |||
| ABDECKKAPPE DSP601/DHR400 A | ||||
| 005 | 140G30-2 | 1.74 | 2.07 | |
| O-Ring 16 | ||||
| 005C10 | 213218-6 | 1.20 | 1.43 | |
| O-Ring 16 SP001G | ||||
| 005C11 | 213A05-9 | 1.00 | 1.19 | |
| Kap-Label DLS211 | ||||
| 005C20 | 818H48-4 | 2.40 | 2.86 | |
| Schaltergriff Dls111 | ||||
| 006 | 457935-0 | 3.60 | 4.28 | |
| Entsperrtaste | ||||
| 007 | 416356-5 | 2.40 | 2.86 | |
| Schalter C3Xa-1Pspm Dsp600 | ||||
| 008 | 651083-9 | 19.80 | 23.56 | |
| Druckfeder 4 | ||||
| 009 | 231026-3 | 1.00 | 1.19 | |
| Leitungsfilter | ||||
| 010 | 688163-8 | 1.20 | 1.43 | |
| Schraube 4x14 | ||||
| 011 | 911123-8 | 1.00 | 1.19 | |
| Abstandsbüchse LS003/4G | ||||
| 012 | 413590-8 | 1.20 | 1.43 | |
| Gewindebohrer 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.19 | |
| Griffabdeckung LS003/4G | ||||
| 014 | 183T58-5 | 12.10 | 14.40 | |
| Warnschild | ||||
| 014C10 | 810486-8 | 2.40 | 2.86 | |
| Kindersicherung | ||||
| 015 | 451037-4 | 1.20 | 1.43 | |
| Kabelschutzhalters | ||||
| 016 | 451000-7 | 1.00 | 1.19 | |
| Gewindebohrer 4x18 | ||||
| 017 | 265A48-7 | 1.00 | 1.19 | |
| Gewindebohrer 4x18 | ||||
| 018 | 265A48-7 | 1.00 | 1.19 | |
| Hintere Abdeckung Dls111 | ||||
| 019 | 457933-4 | 6.00 | 7.14 | |
| Stromkreis LS002G | ||||
| 020 | 620E08-4 | 16.50 | 19.64 | |
| Controller LS004G | ||||
| 021 | 620F17-9 | 107.80 | 128.28 | |
| Schaltplatte LS003/4G | ||||
| 022 | 141C22-0 | 2.40 | 2.86 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 022C10 | 8032A8-0 | |||
| Kontrolleinheit GA-40V Serie | ||||
| 023 | 632P65-6 | 8.40 | 10.00 | |
| Schraube M6x80mm | ||||
| 024 | 911948-0 | 1.00 | 1.19 | |
| Typenschild LS004G | ||||
| 025 | 811T43-5 | 1.00 | 1.19 | |
| Motorgehäuse Dls111 | ||||
| 026 | 457906-7 | 13.20 | 15.71 | |
| Gewindebohrer 4x18 | ||||
| 027 | 265A48-7 | 1.00 | 1.19 | |
| Schraube 5x25 | ||||
| 028 | 911243-8 | 1.00 | 1.19 | |
| Batteriegehäuse LS004G | ||||
| 029 | 183T51-9 | 7.20 | 8.57 | |
| Gummistift 6 | ||||
| 029C10 | 263005-3 | 1.00 | 1.19 | |
| Anker LS003/4G | ||||
| 031 | 629A76-0 | 41.80 | 49.74 | |
| Zwischenplatte LS003/4G | ||||
| 032 | 413E35-6 | 2.40 | 2.86 | |
| Gewindebohrer 4x18 | ||||
| 033 | 265A48-7 | 1.00 | 1.19 | |
| Kugellager 607llb | ||||
| 034 | 211021-9 | 4.80 | 5.71 | |
| Anker Dls111 | ||||
| 035 | 519454-5 | 45.10 | 53.67 | |
| Motorhalterung LS004G | ||||
| 036 | 312B60-5 | 11.00 | 13.09 | |
| Sicherungsring S-17 | ||||
| 037 | 961057-5 | 1.00 | 1.19 | |
| Kugellager 6003ddw | ||||
| 038 | 210301-0 | 6.00 | 7.14 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 039 | 922331-6 | |||
| Unterlegscheibe 6 | ||||
| 040 | 253804-1 | 1.00 | 1.19 | |
| Unterlegscheibe 16 | ||||
| 041 | 257163-5 | 1.20 | 1.43 | |
| Staubadapter DLS211 | ||||
| 042 | 459250-8 | 2.40 | 2.86 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 043 | 811T49-3 | |||
| Einstellschraube M6x40 | ||||
| 045 | 251554-2 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 046 | 922332-4 | |||
| Etikett "makita" | ||||
| 047 | 457667-9 | 2.40 | 2.86 | |
| Sprengring E-5 | ||||
| 048 | 961018-5 | 1.00 | 1.19 | |
| Innensechskantschraube M8x25 | ||||
| 049 | 251547-9 | 1.00 | 1.19 | |
| Inbusschraube 5x18 | ||||
| 050 | 922226-3 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 051 | 266034-5 | 1.00 | 1.19 | |
| Verbindungsplatte Ls1019L | ||||
| 052 | 144529-7 | 8.40 | 10.00 | |
| Unterlegscheibe 16 | ||||
| 053 | 257163-5 | 1.20 | 1.43 | |
| Unterlegscheibe 6 | ||||
| 054 | 253804-1 | 1.00 | 1.19 | |
| RING URETAAN5MM LS003G A | ||||
| 055 | 262190-9 | 1.39 | 1.65 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 056 | 253428-3 | |||
| Buchse 6 | ||||
| 057 | 257785-1 | 1.00 | 1.19 | |
| Einstellschraube M6x16 | ||||
| 058 | 266321-2 | 1.00 | 1.19 | |
| Schraube 4X10 | ||||
| 059 | 911114-9 | 1.00 | 1.19 | |
| Torsionsfeder 11 | ||||
| 060 | 232412-1 | 1.00 | 1.19 | |
| Staubführungsplatte | ||||
| 061 | 457764-1 | 1.20 | 1.43 | |
| Montagehalterung | ||||
| 062 | 161647-6 | 4.80 | 5.71 | |
| Sicherungsring 8 | ||||
| 063 | 231928-3 | 1.00 | 1.19 | |
| Met. Schraube M4 | ||||
| 064 | 251544-5 | 1.00 | 1.19 | |
| Sägeabdeckung LS004G | ||||
| 065 | 141C76-7 | 74.80 | 89.01 | |
| Gummistift 6 | ||||
| 065C10 | 263005-3 | 1.00 | 1.19 | |
| Druckfeder 7 | ||||
| 066 | 231240-1 | 1.00 | 1.19 | |
| Sperrbolzen 6 4110C | ||||
| 067 | 256633-1 | 1.20 | 1.43 | |
| Kabelschutzhalters | ||||
| 068 | 457659-8 | 1.20 | 1.43 | |
| Kreuzkopfschraube 4x11 | ||||
| 069 | 265028-7 | 1.20 | 1.43 | |
| Abschirmkappe | ||||
| 070 | 422155-5 | 2.40 | 2.86 | |
| Führungstafel | ||||
| 071 | 347215-1 | 2.40 | 2.86 | |
| Innensechskantschraube M8x20 | ||||
| 072 | 266283-4 | 1.20 | 1.43 | |
| Schraube 4x12 | ||||
| 073 | 265C54-4 | 1.00 | 1.19 | |
| Sicherungsring S-12 | ||||
| 074 | 961052-5 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 075 | 210005-4 | 4.80 | 5.71 | |
| Gummiring 12mm | ||||
| 076 | 261104-5 | 1.00 | 1.19 | |
| Unterlegscheibe 12 | ||||
| 077 | 253744-3 | 1.00 | 1.19 | |
| Federkeil 4 | ||||
| 078 | 254001-2 | 1.00 | 1.19 | |
| Zahnrad 32 | ||||
| 079 | 227550-2 | 6.00 | 7.14 | |
| Unterlegscheibe 12 | ||||
| 080 | 253744-3 | 1.00 | 1.19 | |
| Dünne Unterlegscheibe 14 | ||||
| 081 | 253313-0 | 1.00 | 1.19 | |
| Dichtung | ||||
| 082 | 451002-3 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 083 | 266026-4 | 1.00 | 1.19 | |
| Getriebewelle | ||||
| 084 | 325643-0 | 3.60 | 4.28 | |
| Kugel 4mm LS003G | ||||
| 085 | 216049-2 | 1.00 | 1.19 | |
| Getriebe 27 | ||||
| 086 | 227702-5 | 6.00 | 7.14 | |
| Zahnrad 14 | ||||
| 087 | 227701-7 | 6.00 | 7.14 | |
| Kugellager 6000zz | ||||
| 088 | 210067-2 | 1.20 | 1.43 | |
| Dichtung | ||||
| 089 | 442147-8 | 2.40 | 2.86 | |
| Sicherungsring S-15 | ||||
| 090 | 961055-9 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 091 | 210005-4 | 4.80 | 5.71 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 092 | 911223-4 | |||
| Zahnrad 28 | ||||
| 093 | 227703-3 | 6.00 | 7.14 | |
| Sicherungsscheibe 5 | ||||
| 094 | 267010-2 | 1.00 | 1.19 | |
| Kugellager 608ddw | ||||
| 095 | 210005-4 | 4.80 | 5.71 | |
| Lagergehäuse | ||||
| 096 | 158957-0 | 12.10 | 14.40 | |
| Gummistift 4 | ||||
| 096C10 | 263002-9 | 1.00 | 1.19 | |
| Lagersicherungsring 14-23 | ||||
| 097 | 285847-5 | 4.80 | 5.71 | |
| Sechskantmutter M5 | ||||
| 098 | 931202-6 | 1.00 | 1.19 | |
| Federring 5MM DLS211 | ||||
| 099 | 253427-5 | 1.00 | 1.19 | |
| Stoessel | ||||
| 100 | 325644-8 | 6.00 | 7.14 | |
| Kugellager 6002ddw | ||||
| 101 | 211236-8 | 9.60 | 11.42 | |
| Lagersicherung 51 | ||||
| 102 | 285732-2 | 1.20 | 1.43 | |
| Innere Flansch 53 | ||||
| 103 | 224431-1 | 3.60 | 4.28 | |
| Äußere Flansch 53 | ||||
| 104 | 224432-9 | 3.60 | 4.28 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 105 | 257262-3 | |||
| Senkschrauben 5x13 | ||||
| 106 | 265034-2 | 1.00 | 1.19 | |
| Innensechskantbolzen M10x20mm | ||||
| 107 | 266755-9 | 2.40 | 2.86 | |
| 4 Unterlegscheibe | ||||
| 108 | 941051-3 | 1.00 | 1.19 | |
| Schraube 4x12 | ||||
| 109 | 265C54-4 | 1.00 | 1.19 | |
| Linse für Laserlinie | ||||
| 110 | 418104-8 | 2.40 | 2.86 | |
| LED Schaltkreis LS003/4G | ||||
| 118 | 620F05-6 | 7.20 | 8.57 | |
| Schraube 3x10 | ||||
| 119 | 266421-8 | 1.00 | 1.19 | |
| Platte LS003/4G | ||||
| 120 | 347947-0 | 1.20 | 1.43 | |
| Sechskantbolzen 5x6 | ||||
| 121 | 266264-8 | 1.00 | 1.19 | |
| LED Deckel LS004G | ||||
| 122 | 141D32-3 | 3.60 | 4.28 | |
| Warnaufkleber LS002G | ||||
| 122C10 | 8024V4-4 | 2.40 | 2.86 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 123 | 266034-5 | 1.00 | 1.19 | |
| ROLLER 3157-22 | ||||
| 127 | 424193-3 | 1.00 | 1.19 | |
| Blechschraube 4x14 mm GA9070Y A | ||||
| 128 | 265B74-2 | 1.00 | 1.19 | |
| Blechschraube 4X14 Ga7020 A | ||||
| 128 | 266385-6 | 0.83 | 0.99 | |
| Schutzkappe B LS004G | ||||
| 129 | 413825-7 | 22.00 | 26.18 | |
| Blechschraube 4x14 mm GA9070Y A | ||||
| 130 | 265B74-2 | 1.00 | 1.19 | |
| Blechschraube 4X14 Ga7020 A | ||||
| 130 | 266385-6 | 0.83 | 0.99 | |
| Zentrierplatte | ||||
| 131 | 347213-5 | 2.40 | 2.86 | |
| Torsionsfeder 45 | ||||
| 132 | 231634-0 | 2.40 | 2.86 | |
| Puffer | ||||
| 133 | 424190-9 | 1.00 | 1.19 | |
| Mittlere Platte LS003/4G | ||||
| 134 | 347835-1 | 3.60 | 4.28 | |
| Sechskantschraube M6 | ||||
| 135 | 265985-9 | 2.40 | 2.86 | |
| Federring 10 | ||||
| 136 | 253932-2 | 1.00 | 1.19 | |
| Kugellager 6805ddw | ||||
| 137 | 210168-6 | 2.40 | 2.86 | |
| Schutz | ||||
| 138 | 458437-9 | 6.00 | 7.14 | |
| STOFAFZUIGADAPTERSET | ||||
| 139 | 127427-0 | 15.00 | 17.85 | |
| Schlauchverbinder A | ||||
| 141 | 413J67-3 | 4.80 | 5.71 | |
| Schlauch | ||||
| 142 | 245041-1 | 10.80 | 12.85 | |
| Huelse | ||||
| 143 | 457672-6 | 1.00 | 1.19 | |
| Stopper | ||||
| 144 | 457673-4 | 1.00 | 1.19 | |
| Schalterknopf A DCL281F | ||||
| 145 | 458939-5 | 1.00 | 1.19 | |
| Druckfeder 5 | ||||
| 146 | 232485-4 | 1.00 | 1.19 | |
| Staubadapter DLS211 | ||||
| 147 | 459249-3 | 6.00 | 7.14 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 149 | 266034-5 | 1.00 | 1.19 | |
| Buchse 17 | ||||
| 150 | 457665-3 | 1.20 | 1.43 | |
| Torsionsfeder 35 | ||||
| 152 | 233537-4 | 6.00 | 7.14 | |
| Schraube M6 | ||||
| 153 | 251267-5 | 1.00 | 1.19 | |
| Unterlegscheibe 20 | ||||
| 154 | 253948-7 | 1.00 | 1.19 | |
| Unterlegscheibe 8 x 14 x 1mm | ||||
| 155 | 253835-0 | 1.00 | 1.19 | |
| Verriegelungsarm | ||||
| 156 | 347221-6 | 2.40 | 2.86 | |
| Vorarmplatte | ||||
| 157 | 347222-4 | 1.00 | 1.19 | |
| Filzring 30 | ||||
| 158 | 262076-7 | 2.40 | 2.86 | |
| Stange 16 | ||||
| 159 | 326994-4 | 2.40 | 2.86 | |
| Knopf 22 | ||||
| 160 | 271437-0 | 1.00 | 1.19 | |
| Stoppring E-7 | ||||
| 161 | 961013-5 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 162 | 266034-5 | 1.00 | 1.19 | |
| Vorderarm cpl LS004G | ||||
| 163 | 141C83-0 | 75.90 | 90.32 | |
| Gummistift 6 | ||||
| 163C10 | 263005-3 | 1.00 | 1.19 | |
| Druckfeder 4 | ||||
| 164 | 231314-8 | 1.00 | 1.19 | |
| Stift 4 | ||||
| 165 | 256364-2 | 1.00 | 1.19 | |
| Druckfeder 10 | ||||
| 166 | 232384-0 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 167 | 326977-4 | 1.20 | 1.43 | |
| Abdeckhaube | ||||
| 168 | 457653-0 | 6.00 | 7.14 | |
| Halter cpl LS003/4G | ||||
| 169 | 141C11-5 | 9.60 | 11.42 | |
| Anzeigeetikett | ||||
| 169C10 | 812X89-8 | 2.40 | 2.86 | |
| Flachkopfschraube M5 | ||||
| 170 | 265008-3 | 1.20 | 1.43 | |
| Riemenscheibe 17-19.3 | ||||
| 171 | 222191-9 | 6.00 | 7.14 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 172 | 210167-8 | |||
| BORGRING 15 DLS211Z A | ||||
| 173 | 267804-5 | 1.00 | 1.19 | |
| Gelenkwelle (a) | ||||
| 174 | 326975-8 | 2.40 | 2.86 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 175 | 210167-8 | |||
| Schraube m8x12 | ||||
| 177 | 913416-9 | 1.00 | 1.19 | |
| Schlüsselklemme | ||||
| 178 | 416536-3 | 2.40 | 2.86 | |
| Gewindeschraube M4x12mm Ck | ||||
| 179 | 266026-4 | 1.00 | 1.19 | |
| Spannstift 4-14 | ||||
| 180 | 951107-4 | 1.00 | 1.19 | |
| Griff 50 B | ||||
| 181 | 273016-0 | 6.00 | 7.14 | |
| Bolzen | ||||
| 182 | 265919-2 | 3.60 | 4.28 | |
| Met. Schraube M6 | ||||
| 183 | 251545-3 | 1.00 | 1.19 | |
| Stopper Pal Ls1019L | ||||
| 184 | 144657-8 | 2.40 | 2.86 | |
| Anzeigeetikett | ||||
| 184C10 | 812X87-2 | 2.40 | 2.86 | |
| Unterlegscheibe 20 | ||||
| 185 | 253948-7 | 1.00 | 1.19 | |
| Unterlegscheibe 8 x 14 x 1mm | ||||
| 186 | 253835-0 | 1.00 | 1.19 | |
| Schraube M6 | ||||
| 187 | 251267-5 | 1.00 | 1.19 | |
| Stift 9-365 | ||||
| 188 | 326987-1 | 2.40 | 2.86 | |
| Sicherungsscheibe 5 | ||||
| 189 | 253194-2 | 1.00 | 1.19 | |
| Bus 5 | ||||
| 190 | 257426-9 | 1.00 | 1.19 | |
| Unterlegscheibe 8 | ||||
| 191 | 253165-9 | 1.00 | 1.19 | |
| Gehäuse 20 | ||||
| 192 | 457666-1 | 1.00 | 1.19 | |
| Sperrbolzen | ||||
| 193 | 326977-4 | 1.20 | 1.43 | |
| Riemenscheibe 17-87.8 | ||||
| 194 | 222192-7 | 6.00 | 7.14 | |
| Sechskantmutter M10-19 | ||||
| 195 | 326980-5 | 2.40 | 2.86 | |
| Antriebsriemen 15-756 | ||||
| 196 | 225101-5 | 19.80 | 23.56 | |
| Druckfeder 10 | ||||
| 197 | 232384-0 | 1.00 | 1.19 | |
| Unterlegscheibe 10 | ||||
| 198 | 253388-9 | 1.00 | 1.19 | |
| Sechskantmutter M10-17 | ||||
| 199 | 252244-0 | 2.40 | 2.86 | |
| Ring 10 | ||||
| 200 | 253024-7 | 1.00 | 1.19 | |
| Drucknadellager 1023 | ||||
| 202 | 216413-7 | 3.60 | 4.28 | |
| Ring 10 | ||||
| 203 | 253024-7 | 1.00 | 1.19 | |
| Drucknadellager 1023 | ||||
| 204 | 216413-7 | 3.60 | 4.28 | |
| Stoppring E-7 | ||||
| 205 | 961013-5 | 1.00 | 1.19 | |
| Knopf 22 | ||||
| 206 | 271437-0 | 1.00 | 1.19 | |
| Ring 10 | ||||
| 207 | 253024-7 | 1.00 | 1.19 | |
| Arm cpl LS004G | ||||
| 208 | 141C80-6 | 88.00 | 104.72 | |
| Anzeigeetikett | ||||
| 208C10 | 812X88-0 | 2.40 | 2.86 | |
| Innensechskantschraube M8x25 | ||||
| 209 | 251547-9 | 1.00 | 1.19 | |
| Anzeigeetikett R | ||||
| 210 | 457871-0 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 211 | 266026-4 | 1.00 | 1.19 | |
| Gewindeschneidschraube Ct 4x16 | ||||
| 212 | 266034-5 | 1.00 | 1.19 | |
| Druckknopf | ||||
| 213 | 415208-7 | 2.40 | 2.86 | |
| Druckfeder 12 | ||||
| 214 | 233031-6 | 1.00 | 1.19 | |
| Staubschienenhalter | ||||
| 215 | 457654-8 | 3.60 | 4.28 | |
| Anzeigeetikett L | ||||
| 216 | 457870-2 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 217 | 266026-4 | 1.00 | 1.19 | |
| Unterlegscheibe 94 | ||||
| 218 | 253389-7 | 1.00 | 1.19 | |
| Staubführung | ||||
| 219 | 422156-3 | 6.00 | 7.14 | |
| Stopper | ||||
| 220 | 319593-9 | 3.60 | 4.28 | |
| Torsionsfeder 14 | ||||
| 221 | 231646-3 | 1.00 | 1.19 | |
| Unterlegscheibe 12 | ||||
| 222 | 253744-3 | 1.00 | 1.19 | |
| Sicherungsring S-12 | ||||
| 223 | 961052-5 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 224 | 266026-4 | 1.00 | 1.19 | |
| Halter | ||||
| 225 | 457668-7 | 1.00 | 1.19 | |
| Stop R LS004G | ||||
| 226 | 141C82-2 | 22.00 | 26.18 | |
| Warnschild | ||||
| 226C10 | 810503-4 | 2.40 | 2.86 | |
| Anschlag L LS004G | ||||
| 227 | 141C81-4 | 22.00 | 26.18 | |
| Warnschild | ||||
| 227C10 | 810503-4 | 2.40 | 2.86 | |
| Innensechskantschraube M8X35 Mit Wr | ||||
| 228 | 922458-2 | 1.00 | 1.19 | |
| Flügelschraube M6X10mm | ||||
| 229 | 251887-5 | 1.20 | 1.43 | |
| Inbusschraube M10x12 | ||||
| 230 | 251561-5 | 1.00 | 1.19 | |
| Führungsplatte LS003/4G | ||||
| 231 | 312B37-0 | 40.70 | 48.43 | |
| Gewindeschraube M4x12mm Ck | ||||
| 232 | 266026-4 | 1.00 | 1.19 | |
| Einschnittplatte LS004G | ||||
| 233 | 413826-5 | 3.60 | 4.28 | |
| Sechskantschraube 8x40 | ||||
| 235 | 265442-7 | 1.20 | 1.43 | |
| Unterlegscheibe 8 | ||||
| 236 | 253852-0 | 1.20 | 1.43 | |
| Drucknadellager 1023 | ||||
| 237 | 216413-7 | 3.60 | 4.28 | |
| Innensechskantschraube M8x25 | ||||
| 240 | 251547-9 | 1.00 | 1.19 | |
| Innensechskantschraube M8x25 | ||||
| 241 | 251547-9 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 244 | 266026-4 | 1.00 | 1.19 | |
| Anzeigeetikett | ||||
| 245 | 457702-3 | 1.00 | 1.19 | |
| SPERRSTIFT 8 | ||||
| 246 | 326970-8 | 1.20 | 1.43 | |
| Druckfeder 6 | ||||
| 247 | 234122-6 | 1.20 | 1.43 | |
| Sperrhebel | ||||
| 249 | 457657-2 | 1.00 | 1.19 | |
| Unterlegscheibe 6 | ||||
| 250 | 253804-1 | 1.00 | 1.19 | |
| Sprengring E-5 | ||||
| 251 | 961018-5 | 1.00 | 1.19 | |
| Drehtisch LS004G | ||||
| 252 | 141E93-9 | 141.90 | 168.86 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 252C10 | 813L22-1 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 252C20 | 812X86-4 | |||
| Warnschild | ||||
| 252C30 | 812X85-6 | 2.40 | 2.86 | |
| Verlängerungsstab | ||||
| 254 | 326973-2 | 2.40 | 2.86 | |
| Kappe | ||||
| 255 | 286039-9 | 1.00 | 1.19 | |
| Zentrierbolzen | ||||
| 256 | 326976-6 | 2.40 | 2.86 | |
| Schraube 4X10 | ||||
| 257 | 911113-1 | 1.00 | 1.19 | |
| Druckfeder 6 | ||||
| 258 | 231325-3 | 1.00 | 1.19 | |
| Drehstopp | ||||
| 259 | 310803-7 | 1.20 | 1.43 | |
| Hebelplatte | ||||
| 260 | 347217-7 | 3.60 | 4.28 | |
| Stift 5 | ||||
| 261 | 256186-0 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 262 | 911231-5 | |||
| Anschlag | ||||
| 263 | 347219-3 | 1.20 | 1.43 | |
| Verriegelungsstange | ||||
| 264 | 326971-6 | 1.20 | 1.43 | |
| Sperrhebel | ||||
| 265 | 457656-4 | 2.40 | 2.86 | |
| Haltestift Kompl. C8fs (inkl.pos.nr.44), C8fse In | ||||
| 266 | 326969-3 | 2.40 | 2.86 | |
| Stift 3 | ||||
| 267 | 256158-5 | 1.20 | 1.43 | |
| Druckfeder 6 | ||||
| 268 | 233201-7 | 1.00 | 1.19 | |
| Steuerplatte | ||||
| 269 | 347237-1 | 1.00 | 1.19 | |
| Pinhalter | ||||
| 270 | 319592-1 | 3.60 | 4.28 | |
| Sechskantschraube 5X20 LF1000 A | ||||
| 271 | 265550-4 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 272 | 347216-9 | 2.40 | 2.86 | |
| Stab 6 | ||||
| 274 | 326972-4 | 1.20 | 1.43 | |
| Sprengring E-4 | ||||
| 275 | 961011-9 | 1.00 | 1.19 | |
| Unterlegscheibe 15 | ||||
| 276 | 257425-1 | 1.00 | 1.19 | |
| Sicherungsscheibe 5 | ||||
| 277 | 253194-2 | 1.00 | 1.19 | |
| Sechskantschraube 5X20 LF1000 A | ||||
| 278 | 265550-4 | 1.00 | 1.19 | |
| Schraube 4X10 | ||||
| 279 | 911113-1 | 1.00 | 1.19 | |
| Blockiergriff komplett | ||||
| 280 | 144656-0 | 1.00 | 1.19 | |
| Gummistift 6 | ||||
| 280C10 | 263005-3 | 1.00 | 1.19 | |
| Schraube 3x8 | ||||
| 281 | 911008-8 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 282 | 345272-3 | 1.20 | 1.43 | |
| Griff 50 A | ||||
| 283 | 273015-2 | 6.00 | 7.14 | |
| Gewindeschraube M4x12mm Ck | ||||
| 284 | 266026-4 | 1.00 | 1.19 | |
| Führungsplatte | ||||
| 285 | 457655-6 | 2.40 | 2.86 | |
| Skalenteilung LS003/4G | ||||
| 286 | 347837-7 | 10.80 | 12.85 | |
| Metallschraube M5 | ||||
| 287 | 251546-1 | 1.00 | 1.19 | |
| Sperrplatte | ||||
| 288 | 347218-5 | 3.60 | 4.28 | |
| Schraube M5x16mm | ||||
| 289 | 265786-5 | 1.00 | 1.19 | |
| Tisch LS003/4G | ||||
| 290 | 312B35-4 | 91.30 | 108.65 | |
| Fußkappe | ||||
| 291 | 421845-7 | 1.20 | 1.43 | |
| 4 Unterlegscheibe | ||||
| 292 | 267195-4 | 1.20 | 1.43 | |
| Gewindeschraube M4x12mm Ck | ||||
| 293 | 266026-4 | 1.00 | 1.19 | |
| Tabellenerweiterungsbasis DLS211 | ||||
| 294 | 319815-7 | 19.80 | 23.56 | |
| Sprengring E-9 | ||||
| 295 | 961015-1 | 1.00 | 1.19 | |
| Gewindeschraube M4x12mm Ck | ||||
| 296 | 266026-4 | 1.00 | 1.19 | |
