Makita PM4602SR Zeichnungen und Teile
Auf dem Typenschild sollte die Typenbezeichnung PM4602SR stehen. Je nach Typenbezeichnung kann es Unterschiede geben, die dazu führen können, dass Teile nicht passen. Bestellen Sie nur, wenn diese Nummer übereinstimmt.Zeichnungen der MAKITA PM4602SR

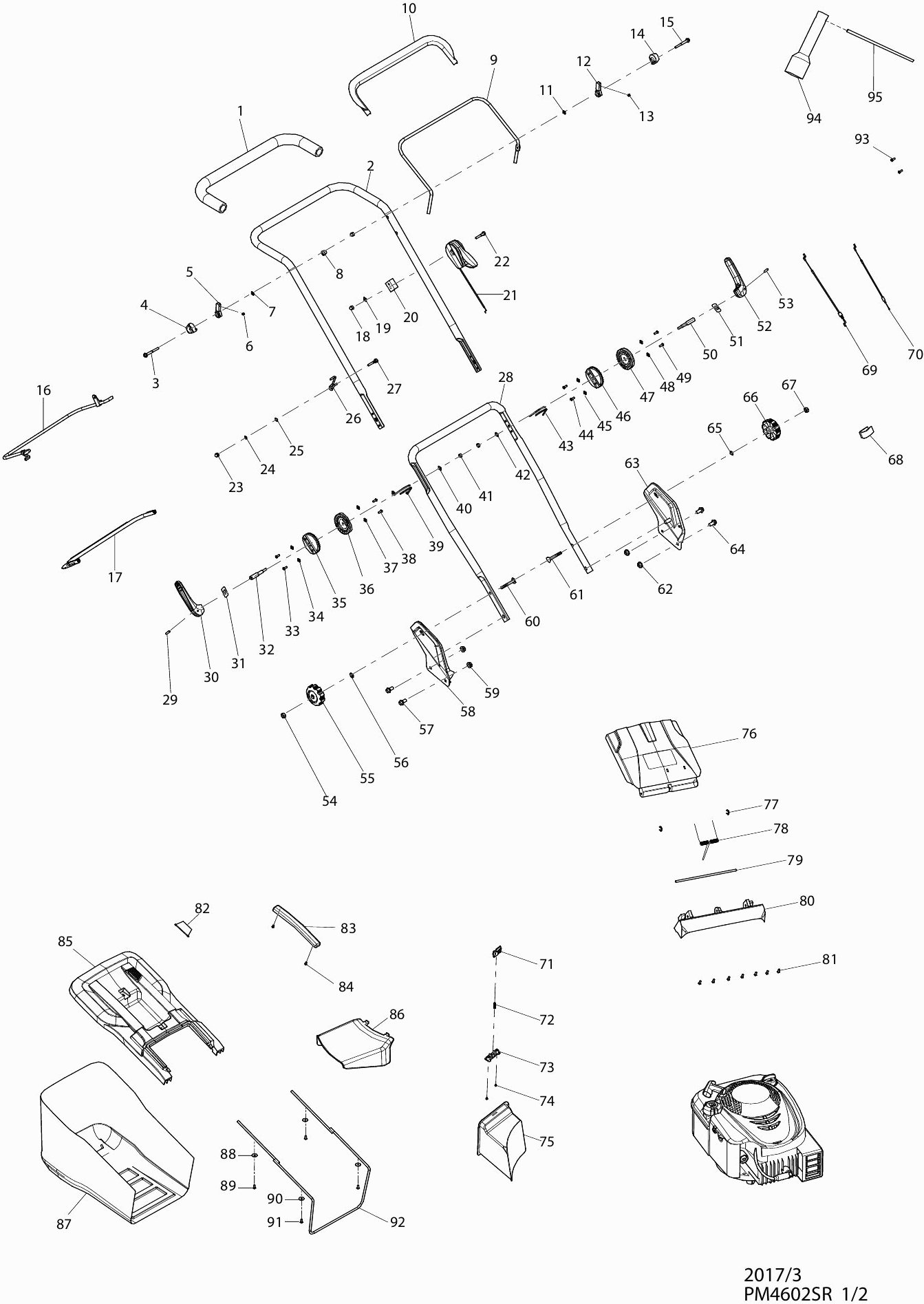

Teileliste der Makita PM4602SR
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer.
| Nicht bestellbar | ||||
| 001 | 671103001 | Nicht bestellbar | ||
| Griff | ||||
| 002 | 671001778 | Griff | € 29.28 | |
| Zeskantbout m8x35 | ||||
| 003 | 671006029 | Zeskantbout m8x35 | € 1.00 | |
| Vastzetstuk Plm4630 | ||||
| 004 | 671990001 | Vastzetstuk Plm4630 | € 1.74 | |
| koppelstuk gashendel | ||||
| 005 | 671989001 | koppelstuk gashendel | € 1.74 | |
| Schroef M4x8 | ||||
| 006 | 671002025 | Schroef M4x8 | € 1.00 | |
| Revet | ||||
| 007 | 671007070 | Revet | € 1.00 | |
| Mutter M6 | ||||
| 008 | DA00000575 | Mutter M6 | € 1.00 | |
| Duwboom boven | ||||
| 009 | 671018730 | Duwboom boven | € 12.34 | |
| Handel motorrem | ||||
| 010 | 671020130 | Handel motorrem | € 20.10 | |
| Revet | ||||
| 011 | 671007070 | Revet | € 1.00 | |
| koppelstuk gashendel | ||||
| 012 | 671989001 | koppelstuk gashendel | € 1.74 | |
| Schroef M4x8 | ||||
| 013 | 671002025 | Schroef M4x8 | € 1.00 | |
| Vastzetstuk Plm4630 | ||||
| 014 | 671990001 | Vastzetstuk Plm4630 | € 1.74 | |
| Zeskantbout m8x35 | ||||
| 015 | 671006029 | Zeskantbout m8x35 | € 1.00 | |
| Hendel "aandrijf" | ||||
| 016 | 671001874 | Hendel "aandrijf" | € 12.34 | |
| Griff | ||||
| 017 | 671687001 | Griff | € 1.23 | |
| Mutter M6 | ||||
| 018 | DA00000575 | Mutter M6 | € 1.00 | |
| Platte ring | ||||
| 019 | DA00000574 | Platte ring | € 1.00 | |
| Nicht bestellbar | ||||
| 020 | DA00000573 | Nicht bestellbar | ||
| Gashandel compleet | ||||
| 021 | 671106202 | Gashandel compleet | € 26.49 | |
| Bout M6x50mm | ||||
| 022 | 671006036 | Bout M6x50mm | € 1.00 | |
| Mutter M6 | ||||
| 023 | DA00000575 | Mutter M6 | € 1.00 | |
| Sicherungsring | ||||
| 024 | 671008003 | Sicherungsring | € 1.00 | |
| Platte ring | ||||
| 025 | DA00000574 | Platte ring | € 1.00 | |
| Kabelgeleider | ||||
| 026 | DA00000579 | Kabelgeleider | € 2.11 | |
| Bolzen | ||||
| 027 | DA00000577 | Bolzen | € 1.00 | |
| Onderhandgreepbeugel | ||||
| 028 | 671017070 | Onderhandgreepbeugel | € 46.98 | |
| Cilinderstift 5,3x20 | ||||
| 029 | 671090040 | Cilinderstift 5,3x20 | € 1.00 | |
| Koppelingshandel | ||||
| 030 | 671431001 | Koppelingshandel | € 5.30 | |
| Bevestigings plaatje | ||||
| 031 | 671001119 | Bevestigings plaatje | € 1.00 | |
| Bout M8x7mm | ||||
| 032 | 671006167 | Bout M8x7mm | € 1.45 | |
| Schroef M5x12 | ||||
| 033 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Nicht bestellbar | ||||
| 034 | DA00000198 | Nicht bestellbar | ||
| Stelwiel "top" | ||||
| 035 | DA00000861 | Stelwiel "top" | € 4.14 | |
| Stelwiel "onder" | ||||
| 036 | DA00000862 | Stelwiel "onder" | € 4.14 | |
| Nicht bestellbar | ||||
| 037 | DA00000198 | Nicht bestellbar | ||
| Schroef M5x12 | ||||
| 038 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Kabelgeleider | ||||
| 039 | 671002361 | Kabelgeleider | € 2.11 | |
| Revet 8 | ||||
| 040 | 671007007 | Revet 8 | € 1.00 | |
| Zeskant borgmoer M8 | ||||
| 041 | 671005008 | Zeskant borgmoer M8 | € 1.00 | |
| Revet 8 | ||||
| 042 | 671007007 | Revet 8 | € 1.00 | |
| Kabelgeleider | ||||
| 043 | 671002361 | Kabelgeleider | € 2.11 | |
| Schroef M5x12 | ||||
| 044 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Nicht bestellbar | ||||
| 045 | DA00000198 | Nicht bestellbar | ||
| Stelwiel "onder" | ||||
| 046 | DA00000862 | Stelwiel "onder" | € 4.14 | |
| Stelwiel "top" | ||||
| 047 | DA00000861 | Stelwiel "top" | € 4.14 | |
| Nicht bestellbar | ||||
| 048 | DA00000198 | Nicht bestellbar | ||
| Schroef M5x12 | ||||
| 049 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Bout M8x7mm | ||||
| 050 | 671006167 | Bout M8x7mm | € 1.45 | |
| Bevestigings plaatje | ||||
| 051 | 671001119 | Bevestigings plaatje | € 1.00 | |
| Koppelingshandel | ||||
| 052 | 671431001 | Koppelingshandel | € 5.30 | |
| Cilinderstift 5,3x20 | ||||
| 053 | 671090040 | Cilinderstift 5,3x20 | € 1.00 | |
| Mutter | ||||
| 054 | DA00000563 | Mutter | € 1.00 | |
| Knopf | ||||
| 055 | DA00000564 | Knopf | € 1.02 | |
| Revet 8 | ||||
| 056 | 671007007 | Revet 8 | € 1.00 | |
| Flange Bolt | ||||
| 057 | DA00000562 | Flange Bolt | € 1.00 | |
| Montagebeugel R | ||||
| 058 | DA00000868 | Montagebeugel R | € 16.31 | |
| Mutter | ||||
| 059 | DA00000537 | Mutter | € 1.00 | |
| Slotbout M8x35mm | ||||
| 060 | DA00000839 | Slotbout M8x35mm | € 1.02 | |
| Slotbout M8x35mm | ||||
| 061 | DA00000839 | Slotbout M8x35mm | € 1.02 | |
| Mutter | ||||
| 062 | DA00000537 | Mutter | € 1.00 | |
| Montagebeugel L | ||||
| 063 | DA00000867 | Montagebeugel L | € 10.96 | |
| Flange Bolt | ||||
| 064 | DA00000562 | Flange Bolt | € 1.00 | |
| Revet 8 | ||||
| 065 | 671007007 | Revet 8 | € 1.00 | |
| Knopf | ||||
| 066 | DA00000564 | Knopf | € 1.02 | |
| Mutter | ||||
| 067 | DA00000563 | Mutter | € 1.00 | |
| Gaskabelhouder | ||||
| 068 | 671611001 | Gaskabelhouder | € 1.02 | |
| Controle kabel | ||||
| 069 | 671001293 | Controle kabel | € 32.08 | |
| Controle kabel | ||||
| 070 | 671001292 | Controle kabel | € 32.08 | |
| Bevestigingsknop | ||||
| 071 | 671316004 | Bevestigingsknop | € 1.02 | |
| Feder | ||||
| 072 | 671011005 | Feder | € 1.74 | |
| Druckplatte | ||||
| 073 | 671317001 | Druckplatte | € 1.00 | |
| Parker | ||||
| 074 | DA00000603 | Parker | € 1.00 | |
| Achterkap | ||||
| 076 | 671933002 | Achterkap | € 12.34 | |
| Klem tbv beschermkap | ||||
| 077 | 671009017 | Klem tbv beschermkap | € 1.00 | |
| Nicht bestellbar | ||||
| 078 | 671011203 | Nicht bestellbar | ||
| Nicht bestellbar | ||||
| 079 | 671002365 | Nicht bestellbar | ||
| Abdeckhaube | ||||
| 080 | 671932002 | Abdeckhaube | € 16.31 | |
| Parker 4x12mm | ||||
| 081 | DA00000826 | Parker 4x12mm | € 1.00 | |
| Inhoudsmeter | ||||
| 082 | 671010780 | Inhoudsmeter | € 2.83 | |
| Grasvangzak beugel | ||||
| 083 | 671937001 | Grasvangzak beugel | € 3.27 | |
| Parker | ||||
| 084 | DA00000603 | Parker | € 1.00 | |
| Grasvangdeksel | ||||
| 085 | 671992001 | Grasvangdeksel | € 32.08 | |
| Zijkap | ||||
| 086 | 671930001 | Zijkap | € 13.94 | |
| Grasvangzak | ||||
| 087 | 671153402 | Grasvangzak | € 66.55 | |
| Revet 4mm | ||||
| 088 | DA00000025 | Revet 4mm | € 1.00 | |
| Parker | ||||
| 089 | DA00000603 | Parker | € 1.00 | |
| Revet 4mm | ||||
| 090 | DA00000025 | Revet 4mm | € 1.00 | |
| Parker | ||||
| 091 | DA00000603 | Parker | € 1.00 | |
| Grasvangzakbeugel | ||||
| 092 | DA00000843 | Grasvangzakbeugel | € 16.31 | |
| Schroef M5x12 | ||||
| 093 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Zij afdekkap | ||||
| 096 | 671929001 | Zij afdekkap | € 8.57 | |
| Schroef M5x12 | ||||
| 097 | DA00000840 | Schroef M5x12 | € 1.00 | |
| Sicherungsring | ||||
| 098 | 671080040 | Sicherungsring | € 1.00 | |
| Halteblech | ||||
| 099 | 671001571 | Halteblech | € 3.27 | |
| Nicht bestellbar | ||||
| 100 | 671011205 | Nicht bestellbar | ||
| Gelenkwelle (a) | ||||
| 101 | 671001019 | Gelenkwelle (a) | € 3.27 | |
| Parker | ||||
| 102 | DA00000603 | Parker | € 1.00 | |
| Wieldeksel | ||||
| 103 | DA00000606 | Wieldeksel | € 2.11 | |
| As tbv achterwiel | ||||
| 104 | 671002367 | As tbv achterwiel | € 66.55 | |
| Sicherungsring | ||||
| 105 | DA00000612 | Sicherungsring | € 1.00 | |
| Zij afdekkap | ||||
| 106 | 671085001 | Zij afdekkap | € 3.70 | |
| Nicht bestellbar | ||||
| 107 | 671002577 | Nicht bestellbar | ||
| Bolzen | ||||
| 108 | DA00000553 | Bolzen | € 1.00 | |
| Sicherungsring | ||||
| 109 | DA00000604 | Sicherungsring | € 1.00 | |
| Zahnrad antreiben R | ||||
| 110 | DA00001091 | Zahnrad antreiben R | € 7.55 | |
| Cilinderstift 5x21,5 | ||||
| 111 | 671090001 | Cilinderstift 5x21,5 | € 1.00 | |
| Sicherungsring | ||||
| 112 | DA00000604 | Sicherungsring | € 1.00 | |
| Kugellager | ||||
| 113 | DA00001029 | Kugellager | € 3.27 | |
| Lagerhuis | ||||
| 114 | 671002085 | Lagerhuis | € 5.30 | |
| Schroef M6x12 | ||||
| 115 | 671002019 | Schroef M6x12 | € 1.00 | |
| Montage ring | ||||
| 116 | DA00000542 | Montage ring | € 1.00 | |
| Flange nut | ||||
| 117 | DA00000543 | Flange nut | € 1.00 | |
| Getriebe | ||||
| 118 | 671502038 | Getriebe | € 86.52 | |
| Flange nut | ||||
| 119 | DA00000543 | Flange nut | € 1.00 | |
| Montage ring | ||||
| 120 | DA00000542 | Montage ring | € 1.00 | |
| Schroef M6x12 | ||||
| 121 | 671002019 | Schroef M6x12 | € 1.00 | |
| Lagerhuis | ||||
| 122 | DA00000610 | Lagerhuis | € 4.14 | |
| Kugellager | ||||
| 123 | DA00001029 | Kugellager | € 3.27 | |
| Sicherungsring | ||||
| 124 | DA00000604 | Sicherungsring | € 1.00 | |
| Cilinderstift 5x21,5 | ||||
| 125 | 671090001 | Cilinderstift 5x21,5 | € 1.00 | |
| Tandwiel l | ||||
| 126 | DA00001090 | Tandwiel l | € 4.65 | |
| Sicherungsring | ||||
| 127 | DA00000604 | Sicherungsring | € 1.00 | |
| Maaidek | ||||
| 128 | 671001821 | Maaidek | € 206.31 | |
| Nicht bestellbar | ||||
| 129 | 671010310 | Nicht bestellbar | ||
| Schutz | ||||
| 130 | 671928001 | Schutz | € 3.27 | |
| Verbindingsstang tbv h-verst | ||||
| 131 | 671002364 | Verbindingsstang tbv h-verst | € 12.34 | |
| Mutter | ||||
| 132 | DA00000549 | Mutter | € 1.00 | |
| Wielafdekkap 8" | ||||
| 133 | 671030150 | Wielafdekkap 8" | € 4.14 | |
| Mutter | ||||
| 134 | DA00000537 | Mutter | € 1.00 | |
| Kugellager | ||||
| 135 | DA00000538 | Kugellager | € 3.27 | |
| Hinterrad | ||||
| 136 | 671020300 | Hinterrad | € 32.08 | |
| Kugellager | ||||
| 137 | DA00000538 | Kugellager | € 3.27 | |
| Tandwielring 8 | ||||
| 138 | DA00000602 | Tandwielring 8 | € 5.95 | |
| Parker | ||||
| 139 | DA00000603 | Parker | € 1.00 | |
| Wieldeksel | ||||
| 140 | DA00000606 | Wieldeksel | € 2.11 | |
| As tbv achterwiel | ||||
| 141 | 671002367 | As tbv achterwiel | € 66.55 | |
| Sicherungsring | ||||
| 142 | DA00000612 | Sicherungsring | € 1.00 | |
| Mutter | ||||
| 143 | DA00000549 | Mutter | € 1.00 | |
| Hebel | ||||
| 144 | DA00000834 | Hebel | € 7.55 | |
| Hoogteverstelhandel | ||||
| 145 | 671102602 | Hoogteverstelhandel | € 7.55 | |
| Nicht bestellbar | ||||
| 146 | 671002041 | Nicht bestellbar | ||
| Wieldeksel | ||||
| 147 | DA00000606 | Wieldeksel | € 2.11 | |
| Parker | ||||
| 148 | DA00000603 | Parker | € 1.00 | |
| Tandwielring 8 | ||||
| 149 | DA00000602 | Tandwielring 8 | € 5.95 | |
| Kugellager | ||||
| 150 | DA00000538 | Kugellager | € 3.27 | |
| Hinterrad | ||||
| 151 | 671020300 | Hinterrad | € 32.08 | |
| Kugellager | ||||
| 152 | DA00000538 | Kugellager | € 3.27 | |
| Mutter | ||||
| 153 | DA00000537 | Mutter | € 1.00 | |
| Wielafdekkap 8" | ||||
| 154 | 671030150 | Wielafdekkap 8" | € 4.14 | |
| V-snaar 710mm | ||||
| 155 | 671001273 | V-snaar 710mm | € 8.57 | |
| Wielafdekkap 7" | ||||
| 156 | 671003014 | Wielafdekkap 7" | € 4.14 | |
| Mutter | ||||
| 157 | DA00000537 | Mutter | € 1.00 | |
| Kugellager | ||||
| 158 | DA00000538 | Kugellager | € 3.27 | |
| Wiel 7" | ||||
| 159 | 671020150 | Wiel 7" | € 14.45 | |
| Kugellager | ||||
| 160 | DA00000538 | Kugellager | € 3.27 | |
| Nicht bestellbar | ||||
| 161 | 671011230 | Nicht bestellbar | ||
| As 333mm "voor" | ||||
| 162 | 671002362 | As 333mm "voor" | € 57.90 | |
| Kugellager | ||||
| 163 | DA00000538 | Kugellager | € 3.27 | |
| Wiel 7" | ||||
| 164 | 671020150 | Wiel 7" | € 14.45 | |
| Kugellager | ||||
| 165 | DA00000538 | Kugellager | € 3.27 | |
| Mutter | ||||
| 166 | DA00000537 | Mutter | € 1.00 | |
| Wielafdekkap 7" | ||||
| 167 | 671003014 | Wielafdekkap 7" | € 4.14 | |
| Abdeckhaube | ||||
| 168 | 671925001 | Abdeckhaube | € 5.95 | |
| Kappe | ||||
| 169 | 671003041 | Kappe | € 26.49 | |
| Parker 4x12mm | ||||
| 170 | DA00000826 | Parker 4x12mm | € 1.00 | |
| Parker 4x12mm | ||||
| 171 | DA00000826 | Parker 4x12mm | € 1.00 | |
| Mutter | ||||
| 172 | DA00000549 | Mutter | € 1.00 | |
| Lagerbock | ||||
| 173 | 671445001 | Lagerbock | € 1.45 | |
| Steun t.b.v. kap | ||||
| 174 | 671927001 | Steun t.b.v. kap | € 12.34 | |
| Parker 4x12mm | ||||
| 175 | DA00000826 | Parker 4x12mm | € 1.00 | |
| Bolzen | ||||
| 176 | 671006119 | Bolzen | € 1.00 | |
| Afschermkap V-snaar | ||||
| 177 | 671996001 | Afschermkap V-snaar | € 12.34 | |
| Revet 8 | ||||
| 178 | 671007007 | Revet 8 | € 1.00 | |
| Zeskant borgmoer M8 | ||||
| 179 | 671005008 | Zeskant borgmoer M8 | € 1.00 | |
| Schroef M5x16 | ||||
| 180 | 671001037 | Schroef M5x16 | € 1.00 | |
| Spie | ||||
| 181 | DA00000535 | Spie | € 1.00 | |
| Vulbus 22,2x10,5x7mm | ||||
| 182 | 671002093 | Vulbus 22,2x10,5x7mm | € 1.23 | |
| Messerhalter | ||||
| 183 | DA00000857 | Messerhalter | € 12.34 | |
| Cirkelmes 460x55x4mm | ||||
| 184 | 671014610 | Cirkelmes 460x55x4mm | € 21.90 | |
| Revet | ||||
| 185 | 671010730 | Revet | € 2.11 | |
| Mesbout | ||||
| 186 | DA00000528 | Mesbout | € 1.74 | |
| Antriebsrad | ||||
| 187 | 671004038 | Antriebsrad | € 9.66 | |
| Schraube | ||||
| 188 | DA00000598 | Schraube | € 1.00 | |
| Mutter | ||||
| 189 | DA00000537 | Mutter | € 1.00 | |
| Federscheibe | ||||
| 190 | DA00000832 | Federscheibe | € 1.00 | |
| Revet 8 | ||||
| 191 | 671007007 | Revet 8 | € 1.00 | |
| Bout "spec" | ||||
| 192 | DA00000617 | Bout "spec" | € 1.23 | |
| Bolzen | ||||
| 193 | DA00000586 | Bolzen | € 1.00 | |
| Bout "spec" | ||||
| 194 | DA00000617 | Bout "spec" | € 1.23 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
