Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita UV3600'. Von hier aus können Sie alle gewünschten Teile direkt bestellen.Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert 5 bis 10 Arbeitstage. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

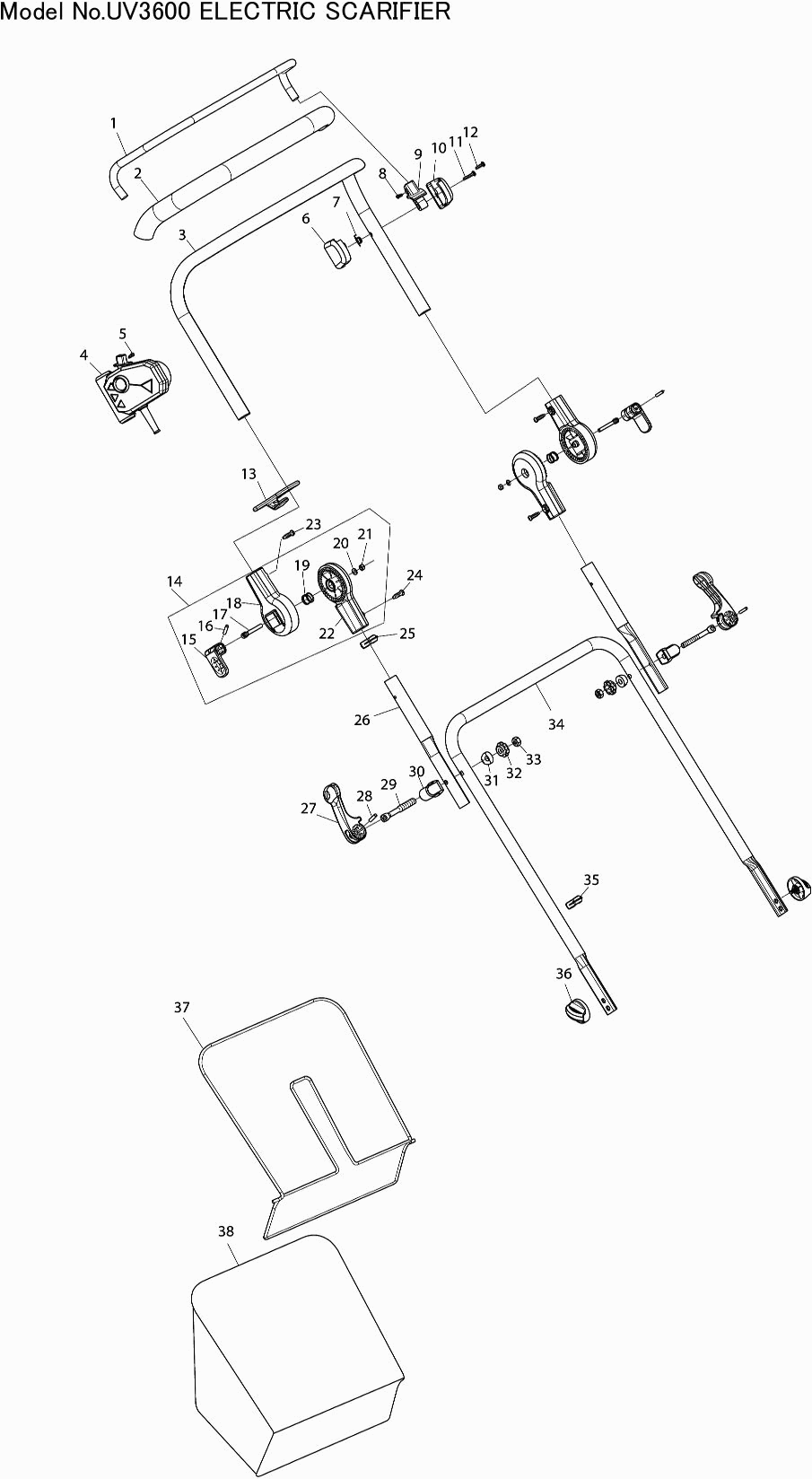

Zeichnungen der Makita UV3600
Teileliste der Makita UV3600
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Schalthebel | ||||
| 001 | 652023784 | 4.80 | 5.71 | |
| Parker 4x18mm | ||||
| 001 | 652023791 | 1.00 | 1.19 | |
| Softgrip Ev3618 | ||||
| 002 | 652023789 | 4.80 | 5.71 | |
| Parker 4X25Mm Ev3618 | ||||
| 002 | 652023792 | 1.00 | 1.19 | |
| Druckstange Oberseite | ||||
| 003 | 652023790 | 13.20 | 15.71 | |
| Stütze für linken Hebel | ||||
| 003 | 652023793 | 2.40 | 2.86 | |
| Schalterbaugruppe | ||||
| 004 | 652024722 | 16.50 | 19.64 | |
| Stecker für linken Hebel | ||||
| 004 | 652023794 | 7.20 | 8.57 | |
| Parker 4x18mm UV3600 | ||||
| 004C10 | YA00000676 | 1.00 | 1.19 | |
| Zugentlaster Ev3618 | ||||
| 004C20 | 652023982 | 1.00 | 1.19 | |
| Parker 4X12Mm Ev3213 | ||||
| 004C30 | 652026443 | 1.00 | 1.19 | |
| Parker Schraube 3,5X10Mm Ev3618 | ||||
| 005 | 652024721 | 1.00 | 1.19 | |
| Schalthebel | ||||
| 006 | 652023784 | 4.80 | 5.71 | |
| Unterstützung für rechten Griff | ||||
| 006 | 652023795 | 2.40 | 2.86 | |
| Druckstange Oberseite | ||||
| 007 | 652023790 | 13.20 | 15.71 | |
| Torsionsfeder 18.3 ELM3320 | ||||
| 007 | YA00000737 | 1.20 | 1.43 | |
| Unterstützung für rechten Griff | ||||
| 008 | 652023795 | 2.40 | 2.86 | |
| Parker Schraube 3,5X10Mm Ev3618 | ||||
| 008 | 652024721 | 1.00 | 1.19 | |
| Stecker für linken Hebel | ||||
| 009 | 652023794 | 7.20 | 8.57 | |
| Softgrip Ev3618 | ||||
| 009 | 652023789 | 4.80 | 5.71 | |
| Verbindungskabel 2x1 | ||||
| 010 | 652023787 | 4.80 | 5.71 | |
| Stütze für linken Hebel | ||||
| 010 | 652023793 | 2.40 | 2.86 | |
| Parker 4X25Mm Ev3618 | ||||
| 011 | 652023792 | 1.00 | 1.19 | |
| Sicherungsmutter M5 Ev3618 | ||||
| 011 | 652023804 | 1.00 | 1.19 | |
| 5mm Unterlegscheibe | ||||
| 012 | 652023803 | 1.00 | 1.19 | |
| Parker 4x18mm UV3600 | ||||
| 012 | YA00000676 | 1.00 | 1.19 | |
| Kabelhalter ELM3320 | ||||
| 013 | 652023811 | 2.40 | 2.86 | |
| Einstellhebel UV3600 | ||||
| 014 | YA00000703 | 30.80 | 36.65 | |
| Parker 4,8X20mm Ev3618 | ||||
| 014 | 652023796 | 1.00 | 1.19 | |
| Stellrad | ||||
| 015 | 652024723 | 2.40 | 2.86 | |
| Druckfeder | ||||
| 015 | 652023798 | 1.00 | 1.19 | |
| Schalterbaugruppe | ||||
| 016 | 652024722 | 16.50 | 19.64 | |
| Verriegelungsstift Ev3618 | ||||
| 016 | 652023800 | 1.20 | 1.43 | |
| Verbindungsklotz für Schubstange | ||||
| 017 | 652023797 | 4.80 | 5.71 | |
| Gelenkbolzen | ||||
| 017 | 652023799 | 2.40 | 2.86 | |
| Verbindungsklotz für Schubstange | ||||
| 018 | 652023797 | 4.80 | 5.71 | |
| Gelenkbolzen | ||||
| 018 | 652023799 | 2.40 | 2.86 | |
| Verriegelungsstift Ev3618 | ||||
| 019 | 652023800 | 1.20 | 1.43 | |
| Druckfeder | ||||
| 019 | 652023798 | 1.00 | 1.19 | |
| Stellrad | ||||
| 020 | 652024723 | 2.40 | 2.86 | |
| 5mm Unterlegscheibe | ||||
| 020 | 652023803 | 1.00 | 1.19 | |
| Verbindungsklotz für Schubstange | ||||
| 021 | 652023802 | 8.40 | 10.00 | |
| Sicherungsmutter M5 Ev3618 | ||||
| 021 | 652023804 | 1.00 | 1.19 | |
| Verbindungsklotz für Schubstange | ||||
| 022 | 652023802 | 8.40 | 10.00 | |
| Kabelclip | ||||
| 022 | 652023810 | 1.20 | 1.43 | |
| Schiebestange Mittelteil | ||||
| 023 | 652023805 | 9.60 | 11.42 | |
| Parker 4,8X20mm Ev3618 | ||||
| 023 | 652023796 | 1.00 | 1.19 | |
| Grasfangsackhalter | ||||
| 024 | 652024724 | 11.00 | 13.09 | |
| Parker 4,8X20mm Ev3618 | ||||
| 024 | 652023796 | 1.00 | 1.19 | |
| Kabelclip | ||||
| 025 | 652023810 | 1.20 | 1.43 | |
| Schiebestange Mittelteil | ||||
| 026 | 652023805 | 9.60 | 11.42 | |
| Regal | ||||
| 026 | 652024725 | 3.60 | 4.28 | |
| Auswurfsdeckel | ||||
| 027 | 652023815 | 10.80 | 12.85 | |
| Regal | ||||
| 027 | 652024725 | 3.60 | 4.28 | |
| Sicherungsstift 6x20mm | ||||
| 028 | 652024727 | 1.00 | 1.19 | |
| Schnellverschlussschraube | ||||
| 029 | 652024728 | 2.40 | 2.86 | |
| Gelenkbolzen | ||||
| 029 | 652024726 | 2.40 | 2.86 | |
| Klemmhülse | ||||
| 030 | 652024729 | 2.40 | 2.86 | |
| Rückschlagfeder | ||||
| 030 | 652023820 | 1.20 | 1.43 | |
| Niete | ||||
| 031 | 652024730 | 1.20 | 1.43 | |
| Sicherungsstift 6x20mm | ||||
| 031 | 652024727 | 1.00 | 1.19 | |
| Schnellverschlussschraube | ||||
| 032 | 652024728 | 2.40 | 2.86 | |
| Schnellverschlussknopf | ||||
| 032 | 652024731 | 1.20 | 1.43 | |
| Klemmhülse | ||||
| 033 | 652024729 | 2.40 | 2.86 | |
| MUTTER M8 | ||||
| 033 | 652024732 | 1.20 | 1.43 | |
| Schiebestange Teil | ||||
| 034 | 652024733 | 12.10 | 14.40 | |
| Niete | ||||
| 034 | 652024730 | 1.20 | 1.43 | |
| Schnellverschlussknopf | ||||
| 035 | 652024731 | 1.20 | 1.43 | |
| Kabelclip | ||||
| 035 | 652023810 | 1.20 | 1.43 | |
| Sperrtaste | ||||
| 036 | 652024078 | 3.60 | 4.28 | |
| MUTTER M8 | ||||
| 036 | 652024732 | 1.20 | 1.43 | |
| Schiebestange Teil | ||||
| 037 | 652024733 | 12.10 | 14.40 | |
| Grasfangsackhalter | ||||
| 037 | 652024724 | 11.00 | 13.09 | |
| Zugentlaster Ev3618 | ||||
| 038 | 652023982 | 1.00 | 1.19 | |
| Deck | ||||
| 039 | 652025253 | 77.00 | 91.63 | |
| Parker 4X14Mm Ev3618 | ||||
| 039 | 652023766 | 1.00 | 1.19 | |
| Mutter Ev3618 | ||||
| 040 | 652023814 | 2.40 | 2.86 | |
| Parker 4X14Mm Ev3618 | ||||
| 040 | 652023766 | 1.00 | 1.19 | |
| Sperrtaste | ||||
| 041 | 652024078 | 3.60 | 4.28 | |
| Parker 4x18mm UV3600 | ||||
| 041 | YA00000676 | 1.00 | 1.19 | |
| Hinterrad | ||||
| 042 | 652023835 | 14.30 | 17.02 | |
| Parker 4X25Mm Ev3618 | ||||
| 042 | 652023792 | 1.00 | 1.19 | |
| Hinterachse | ||||
| 043 | 652024735 | 16.50 | 19.64 | |
| Handgriff Ev3618 | ||||
| 043 | 652023903 | 6.00 | 7.14 | |
| Sicherungsring Ev3618 | ||||
| 044 | 652023831 | 6.00 | 7.14 | |
| Parker 4X14Mm Ev3618 | ||||
| 044 | 652023766 | 1.00 | 1.19 | |
| Motorhaube Ev3618 | ||||
| 045 | 652023829 | 8.40 | 10.00 | |
| Radkappe "Hinteres Rad" | ||||
| 045 | 652023904 | 4.80 | 5.71 | |
| Seitendeckel | ||||
| 046 | 652024736 | 8.40 | 10.00 | |
| Parker 4X14Mm Ev3618 | ||||
| 046 | 652023766 | 1.00 | 1.19 | |
| Unterdeckel | ||||
| 047 | 652023850 | 6.00 | 7.14 | |
| Parker 4X14Mm Ev3618 | ||||
| 047 | 652023766 | 1.00 | 1.19 | |
| Verstärkungsplatte | ||||
| 048 | 652023906 | 1.20 | 1.43 | |
| Parker 4x10mm UV3600 | ||||
| 048 | YA00000631 | 1.00 | 1.19 | |
| Gleitbuchse | ||||
| 049 | 652024737 | 1.20 | 1.43 | |
| Parker 4x10mm UV3600 | ||||
| 049 | YA00000631 | 1.00 | 1.19 | |
| Parker 4X14Mm Ev3618 | ||||
| 050 | 652023766 | 1.00 | 1.19 | |
| Kohlebürstensatz UV3600 | ||||
| 051 | YA00001195 | 8.27 | 9.84 | |
| Parker Schraube 4X6Mm Ev3618 * | ||||
| 051 | 652024720 | 1.00 | 1.19 | |
| Motor | ||||
| 052 | 652023856 | 139.70 | 166.24 | |
| Gewicht 2 | ||||
| 052 | 652024739 | 8.40 | 10.00 | |
| V-Riemen 14x300mm | ||||
| 052C10 | 652023876 | 8.40 | 10.00 | |
| V-Riemen 15x300mm | ||||
| 052C20 | 652025580 | 9.60 | 11.42 | |
| Gewicht 1 | ||||
| 053 | 652024740 | 8.40 | 10.00 | |
| Kopplungsdraht 85mm | ||||
| 053 | 652024743 | 2.40 | 2.86 | |
| Kopplungsdraht 220mm | ||||
| 054 | 652024744 | 2.40 | 2.86 | |
| Klemmscheibe HKC 55 | ||||
| 054 | 652023854 | 1.20 | 1.43 | |
| Knopf | ||||
| 055 | 652023836 | 3.60 | 4.28 | |
| Schroef,M4x12 | ||||
| 055 | YA00000630 | 1.00 | 1.19 | |
| Auswurfsdeckel | ||||
| 056 | 652023815 | 10.80 | 12.85 | |
| Knopf | ||||
| 056 | 652023837 | 3.60 | 4.28 | |
| Rückschlagfeder | ||||
| 057 | 652023820 | 1.20 | 1.43 | |
| Mit Schraube M5X12Mm Ev3618 | ||||
| 057 | 652023840 | 1.00 | 1.19 | |
| Griff | ||||
| 058 | 652024741 | 2.40 | 2.86 | |
| Gelenkbolzen | ||||
| 058 | 652024726 | 2.40 | 2.86 | |
| Mutter Ev3618 | ||||
| 059 | 652023814 | 2.40 | 2.86 | |
| Feder | ||||
| 059 | 652023841 | 1.20 | 1.43 | |
| Deck | ||||
| 060 | 652025253 | 77.00 | 91.63 | |
| Einschubbundmutter M8 | ||||
| 060 | 652023843 | 1.00 | 1.19 | |
| Nadellager | ||||
| 061 | 652023842 | 8.40 | 10.00 | |
| Zugentlaster Ev3618 | ||||
| 061 | 652023982 | 1.00 | 1.19 | |
| Lagerbuchse | ||||
| 062 | 652023844 | 2.40 | 2.86 | |
| Parker 4X14Mm Ev3618 | ||||
| 062 | 652023766 | 1.00 | 1.19 | |
| Kondensator 0,22uF | ||||
| 063 | 652023827 | 3.60 | 4.28 | |
| ASBUS | ||||
| 063 | 652023845 | 2.40 | 2.86 | |
| Mutternschraube M8 Ev3618 | ||||
| 064 | 652023846 | 1.20 | 1.43 | |
| Parker 3X22Mm Ev3618 | ||||
| 064 | 652023825 | 1.00 | 1.19 | |
| Rad | ||||
| 065 | 652023847 | 30.80 | 36.65 | |
| Klemmstein | ||||
| 065 | 654575-7 | 3.60 | 4.28 | |
| Ringmagnet | ||||
| 066 | 652023828 | 2.40 | 2.86 | |
| Parker St3X12Mm Ev3618 | ||||
| 066 | 652026436 | 1.00 | 1.19 | |
| Radkappe "Hinteres Rad" | ||||
| 067 | 652023904 | 4.80 | 5.71 | |
| Parker St3X12Mm Ev3618 | ||||
| 067 | 652024742 | 1.00 | 1.19 | |
| Radabdeckung | ||||
| 068 | 652023905 | 6.00 | 7.14 | |
| Sicherungsring Ev3618 | ||||
| 068 | 652023831 | 6.00 | 7.14 | |
| Hinterrad | ||||
| 069 | 652023835 | 14.30 | 17.02 | |
| Kopplungsdraht 85mm | ||||
| 069 | 652024743 | 2.40 | 2.86 | |
| Hinterachse | ||||
| 070 | 652024735 | 16.50 | 19.64 | |
| Kopplungsdraht 220mm | ||||
| 070 | 652024744 | 2.40 | 2.86 | |
| Sicherungsring Ev3618 | ||||
| 071 | 652023831 | 6.00 | 7.14 | |
| Mutterbolzen M6X45mm Ev3618 | ||||
| 071 | 652023935 | 1.20 | 1.43 | |
| Federring 6mm Ev3618 | ||||
| 072 | 652023936 | 1.00 | 1.19 | |
| Parker St3X12Mm Ev3618 | ||||
| 072 | 652024742 | 1.00 | 1.19 | |
| Seitendeckel | ||||
| 073 | 652024736 | 8.40 | 10.00 | |
| Niete 6mm Ev3618 | ||||
| 073 | 652023937 | 1.00 | 1.19 | |
| Parker 4X20mm Ev3618 | ||||
| 074 | 652023939 | 1.00 | 1.19 | |
| Blockierschraube | ||||
| 074 | YA00000655 | 1.00 | 1.19 | |
| Lagerschale | ||||
| 075 | 652023940 | 2.40 | 2.86 | |
| Verstärkungsplatte | ||||
| 075 | 652023906 | 1.20 | 1.43 | |
| Radlager | ||||
| 076 | 652024745 | 2.40 | 2.86 | |
| Gleitbuchse | ||||
| 076 | 652024737 | 1.20 | 1.43 | |
| Lagerbuchse | ||||
| 077 | 652023848 | 2.40 | 2.86 | |
| Schraube 3x8mm | ||||
| 077 | 652023661 | 1.00 | 1.19 | |
| MESSENBALK EV3618 | ||||
| 078 | 652024746 | 23.00 | 27.37 | |
| Gewicht 1 | ||||
| 078 | 652024740 | 8.40 | 10.00 | |
| Vorderachse | ||||
| 079 | 652024747 | 14.30 | 17.02 | |
| Motor | ||||
| 080 | 652023856 | 139.70 | 166.24 | |
| Gewicht 2 | ||||
| 080 | 652024739 | 8.40 | 10.00 | |
| V-Riemen 15x300mm | ||||
| 080A | 652025580 | 9.60 | 11.42 | |
| V-Riemen 14x300mm | ||||
| 080B | 652023876 | 8.40 | 10.00 | |
| Kohlebürstensatz | ||||
| 080C | 652024748 | 3.60 | 4.28 | |
| Kondensator 0,22uF | ||||
| 081 | 652023827 | 3.60 | 4.28 | |
| Klemmscheibe HKC 55 | ||||
| 081 | 652023854 | 1.20 | 1.43 | |
| Ringmagnet | ||||
| 082 | 652023828 | 2.40 | 2.86 | |
| Parker 4X25Mm Ev3618 | ||||
| 082 | 652023792 | 1.00 | 1.19 | |
| Klemmstein | ||||
| 083 | 654575-7 | 3.60 | 4.28 | |
| Lagerschale | ||||
| 083 | 652023940 | 2.40 | 2.86 | |
| Parker 4X20mm Ev3618 | ||||
| 084 | 652023939 | 1.00 | 1.19 | |
| Parker 3X22Mm Ev3618 | ||||
| 084 | 652023825 | 1.00 | 1.19 | |
| Motorhaube Ev3618 | ||||
| 085 | 652023829 | 8.40 | 10.00 | |
| Niete 6mm Ev3618 | ||||
| 085 | 652023937 | 1.00 | 1.19 | |
| Handgriff Ev3618 | ||||
| 086 | 652023903 | 6.00 | 7.14 | |
| Federring 6mm Ev3618 | ||||
| 086 | 652023936 | 1.00 | 1.19 | |
| Mutterbolzen M6X45mm Ev3618 | ||||
| 087 | 652023935 | 1.20 | 1.43 | |
| Parker 4X14Mm Ev3618 | ||||
| 087 | 652023766 | 1.00 | 1.19 | |
| Mutternschraube M8 Ev3618 | ||||
| 088 | 652023846 | 1.20 | 1.43 | |
| ASBUS | ||||
| 089 | 652023845 | 2.40 | 2.86 | |
| Lagerbuchse | ||||
| 090 | 652023844 | 2.40 | 2.86 | |
| Einschubbundmutter M8 | ||||
| 091 | 652023843 | 1.00 | 1.19 | |
| Sicherungsmutter M5 Ev3618 | ||||
| 092 | 652023804 | 1.00 | 1.19 | |
| Feder | ||||
| 093 | 652023841 | 1.20 | 1.43 | |
| Griff | ||||
| 094 | 652024741 | 2.40 | 2.86 | |
| Knopf | ||||
| 095 | 652023837 | 3.60 | 4.28 | |
| Knopf | ||||
| 096 | 652023836 | 3.60 | 4.28 | |
| Mit Schraube M5X12Mm Ev3618 | ||||
| 097 | 652023840 | 1.00 | 1.19 | |
| Mit Schraube M5X12Mm Ev3618 | ||||
| 098 | 652023840 | 1.00 | 1.19 | |
| Sicherungsmutter M5 Ev3618 | ||||
| 099 | 652023804 | 1.00 | 1.19 | |
| Nadellager | ||||
| 100 | 652023842 | 8.40 | 10.00 | |
| Radabdeckung | ||||
| 101 | 652023905 | 6.00 | 7.14 | |
| Sicherungsring Ev3618 | ||||
| 102 | 652023831 | 6.00 | 7.14 | |
| Radlager | ||||
| 103 | 652024745 | 2.40 | 2.86 | |
| Rad | ||||
| 104 | 652023847 | 30.80 | 36.65 | |
| Radlager | ||||
| 105 | 652024745 | 2.40 | 2.86 | |
| Lagerbuchse | ||||
| 106 | 652023848 | 2.40 | 2.86 | |
| Vorderachse | ||||
| 107 | 652024747 | 14.30 | 17.02 | |
| Unterdeckel | ||||
| 108 | 652023850 | 6.00 | 7.14 | |
| Parker 3x12mm UV3600 | ||||
| 109 | 652023851 | 1.00 | 1.19 | |
| MESSENBALK EV3618 | ||||
| 110 | 652024746 | 23.00 | 27.37 | |
