Makita VC2211M Zeichnungen und Teile
Genaue Typennummer:
VC2211M
VC2211M

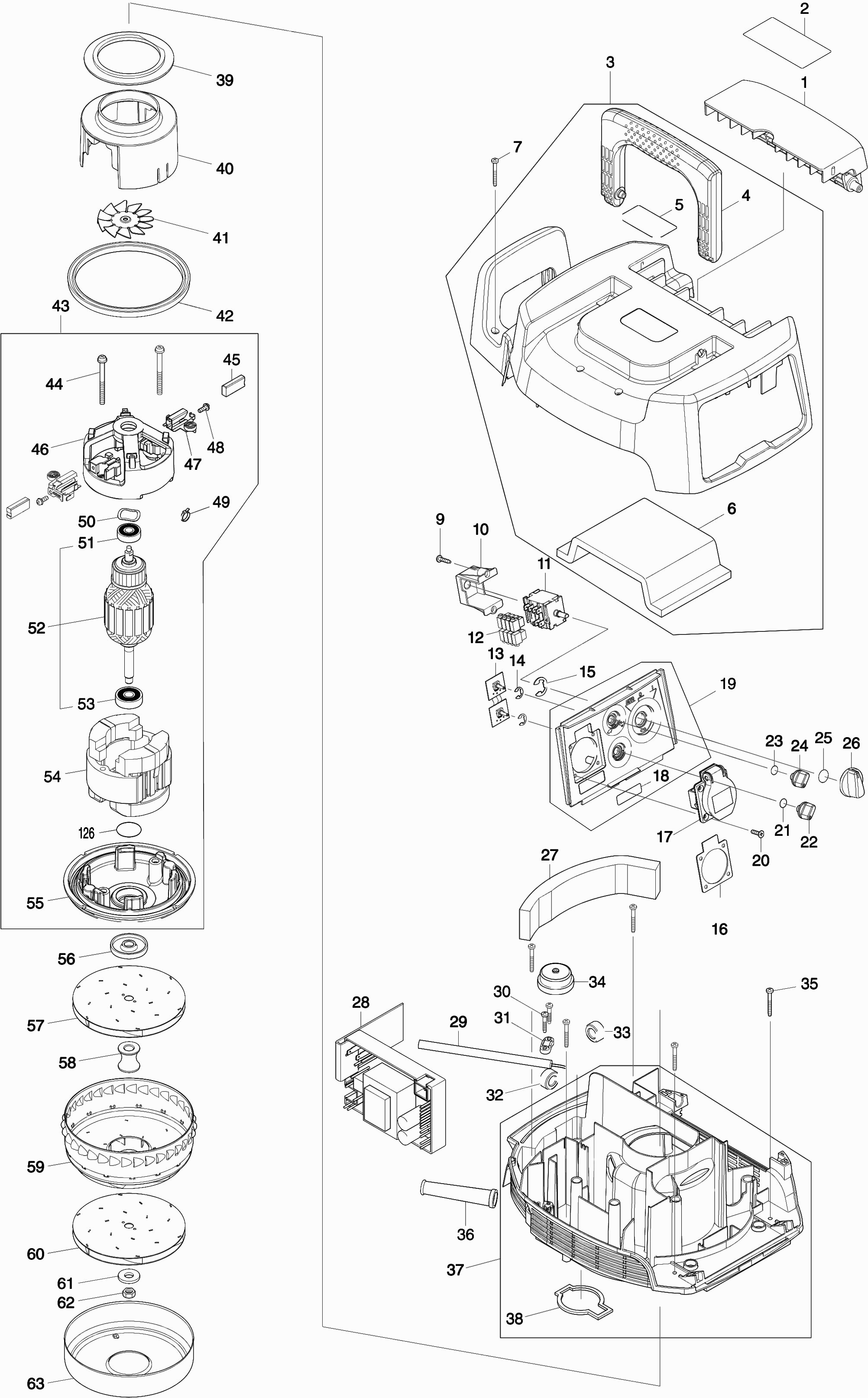

Zeichnungen der MAKITA VC2211M
Teileliste der MAKITA VC2211M
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Abdeckung | ||||
| 001 | 452451-7 | Abdeckung | € 3.55 | |
| Label "waarsch" | ||||
| 002 | 800W80-2 | Label "waarsch" | € 2.71 | |
| Bovenkap | ||||
| 003 | 141915-3 | Bovenkap | € 48.49 | |
| Griff | ||||
| 004 | 451340-3 | Griff | € 6.40 | |
| Warnschild | ||||
| 005 | 891977-8 | Warnschild | € 2.71 | |
| Puffer | ||||
| 006 | 423456-4 | Puffer | € 9.26 | |
| Schroef 4x35 | ||||
| 007 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Tapschroef 4x18 | ||||
| 009 | 265995-6 | Tapschroef 4x18 | € 0.96 | |
| Schakelaar houder | ||||
| 010 | 451343-7 | Schakelaar houder | € 0.96 | |
| Schalter | ||||
| 011 | 650659-9 | Schalter | € 15.64 | |
| Nicht mehr lieferbar | ||||
| 012 | 686023-8 | Nicht mehr lieferbar | ||
| Toerenregelcircuit | ||||
| 013 | 620185-2 | Toerenregelcircuit | € 17.42 | |
| Stopring E-7 | ||||
| 014 | 961013-5 | Stopring E-7 | € 0.96 | |
| Borgring E12 | ||||
| 015 | 961062-2 | Borgring E12 | € 0.96 | |
| Sponsrubber tbv schakelaar | ||||
| 016 | 685740-7 | Sponsrubber tbv schakelaar | € 0.96 | |
| Nicht mehr lieferbar | ||||
| 017 | 655123-5 | Nicht mehr lieferbar | ||
| Label "waarsch" | ||||
| 018 | 800W82-8 | Label "waarsch" | € 2.71 | |
| Schaltblech | ||||
| 019 | 143294-5 | Schaltblech | € 33.43 | |
| Tapschroef 4x16 | ||||
| 020 | 266630-9 | Tapschroef 4x16 | € 0.96 | |
| O-ring 9 | ||||
| 021 | 213054-0 | O-ring 9 | € 0.96 | |
| Schakelknop | ||||
| 022 | 451344-5 | Schakelknop | € 0.96 | |
| O-ring 9 | ||||
| 023 | 213054-0 | O-ring 9 | € 0.96 | |
| Schakelknop | ||||
| 024 | 451344-5 | Schakelknop | € 0.96 | |
| O-ring 14 | ||||
| 025 | 213176-6 | O-ring 14 | € 0.96 | |
| Schakelknop | ||||
| 026 | 451342-9 | Schakelknop | € 0.96 | |
| Filter | ||||
| 027 | 423450-6 | Filter | € 3.13 | |
| Controller | ||||
| 028 | 620467-2 | Controller | € 287.10 | |
| Netsnoer 3x1.5x5mtr Ra | ||||
| 029 | 695350-2 | Netsnoer 3x1.5x5mtr Ra | € 25.39 | |
| Tapschroef 4x25 | ||||
| 030 | 265999-8 | Tapschroef 4x25 | € 0.96 | |
| Klemstrip | ||||
| 031 | 687149-9 | Klemstrip | € 0.96 | |
| Lijn filter | ||||
| 032 | 688131-1 | Lijn filter | € 0.96 | |
| Lijn filter | ||||
| 033 | 688131-1 | Lijn filter | € 0.96 | |
| Buzzer circuit | ||||
| 034 | 620186-0 | Buzzer circuit | € 13.36 | |
| Schroef 4x35 | ||||
| 035 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Kabeltule | ||||
| 036 | 682575-7 | Kabeltule | € 0.96 | |
| Verdeler | ||||
| 037 | 141917-9 | Verdeler | € 33.43 | |
| Dichtung | ||||
| 038 | 423462-9 | Dichtung | € 0.96 | |
| Dichtring | ||||
| 039 | 423279-0 | Dichtring | € 2.02 | |
| Motordeckel | ||||
| 040 | 451338-0 | Motordeckel | € 2.02 | |
| Waaier 62 | ||||
| 041 | 241512-6 | Waaier 62 | € 1.39 | |
| Kunststof ring 12 | ||||
| 042 | 424228-0 | Kunststof ring 12 | € 3.13 | |
| Motor cpl | ||||
| 043 | 125876-5 | Motor cpl | € 88.04 | |
| Schroef M5x60 | ||||
| 044 | 911283-6 | Schroef M5x60 | € 0.96 | |
| Koolborstel set Cb-173 | ||||
| 045 | 195483-8 | Koolborstel set Cb-173 | € 8.21 | |
| Koolborstel/lagerhouder | ||||
| 046 | 452106-4 | Koolborstel/lagerhouder | € 7.24 | |
| Kohlekasten Zsb | ||||
| 047 | 643610-6 | Kohlekasten Zsb | € 2.02 | |
| Schroef 4x12 | ||||
| 048 | 911116-5 | Schroef 4x12 | € 0.96 | |
| Klemband | ||||
| 049 | 687010-0 | Klemband | € 0.96 | |
| Veerring 18 | ||||
| 050 | 253946-1 | Veerring 18 | € 0.96 | |
| Kogellager 629ddw | ||||
| 051 | 211092-6 | Kogellager 629ddw | € 4.45 | |
| Anker kompl. | ||||
| 052 | 517849-6 | Anker kompl. | € 36.11 | |
| Kogellager 6200dw | ||||
| 053 | 211087-9 | Kogellager 6200dw | € 7.24 | |
| Feld | ||||
| 054 | 526204-1 | Feld | € 28.07 | |
| ZÜndkerze | ||||
| 054A | 654304-8 | ZÜndkerze | € 1.18 | |
| Nicht mehr lieferbar | ||||
| 055 | 454480-6 | Nicht mehr lieferbar | ||
| Flens Vc2510l | ||||
| 056 | 316795-8 | Flens Vc2510l | € 2.02 | |
| Waaier 125 | ||||
| 057 | 241910-4 | Waaier 125 | € 2.71 | |
| Afstandhouder Vc2510l | ||||
| 058 | 325747-8 | Afstandhouder Vc2510l | € 1.67 | |
| Retour vin | ||||
| 059 | 346114-4 | Retour vin | € 4.45 | |
| Waaier 125 | ||||
| 060 | 241910-4 | Waaier 125 | € 2.71 | |
| Sluitring 10 | ||||
| 061 | 316799-0 | Sluitring 10 | € 0.96 | |
| Zeskant moer M8 | ||||
| 062 | 931403-6 | Zeskant moer M8 | € 0.96 | |
| Waaier bescherming | ||||
| 063 | 346115-2 | Waaier bescherming | € 2.37 | |
| Stuetzring | ||||
| 064 | 424229-8 | Stuetzring | € 2.71 | |
| Dämpfungsring | ||||
| 065 | 423451-4 | Dämpfungsring | € 5.08 | |
| Ontluchtingspijp | ||||
| 066 | 684900-8 | Ontluchtingspijp | € 1.18 | |
| Klammer | ||||
| 067 | 421468-1 | Klammer | € 0.96 | |
| Beilegring | ||||
| 068 | 141916-1 | Beilegring | € 55.51 | |
| Klepadichting | ||||
| 069 | 423455-6 | Klepadichting | € 0.96 | |
| Naamplaat Vc2211m | ||||
| 070 | 851C51-2 | Naamplaat Vc2211m | € 2.71 | |
| Schroef 4x35 | ||||
| 071 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Motor Dc | ||||
| 072 | 629981-5 | Motor Dc | € 7.24 | |
| Getriebegehaeuse | ||||
| 073 | 454207-4 | Getriebegehaeuse | € 3.55 | |
| Schroef 3x6 | ||||
| 074 | 911003-8 | Schroef 3x6 | € 0.96 | |
| Sluitring 12 | ||||
| 075 | 267067-3 | Sluitring 12 | € 0.96 | |
| Tandwiel 15 | ||||
| 076 | 226283-6 | Tandwiel 15 | € 0.96 | |
| Tandwiel 9 | ||||
| 077 | 153228-0 | Tandwiel 9 | € 10.51 | |
| Tandwiel 15 | ||||
| 078 | 226284-4 | Tandwiel 15 | € 2.02 | |
| Intern tandwiel 42 | ||||
| 079 | 226285-2 | Intern tandwiel 42 | € 15.64 | |
| Kogellager 6805llb | ||||
| 081 | 211375-4 | Kogellager 6805llb | € 21.11 | |
| Sluitring 34mm | ||||
| 082 | 267464-3 | Sluitring 34mm | € 0.96 | |
| Gelenkwelle (a) | ||||
| 083 | 135554-9 | Gelenkwelle (a) | € 5.71 | |
| Rubberring | ||||
| 084 | 424543-2 | Rubberring | € 15.64 | |
| Pakkingring | ||||
| 085 | 424544-0 | Pakkingring | € 2.02 | |
| Borgring S-20 | ||||
| 086 | 961060-6 | Borgring S-20 | € 0.96 | |
| Sluitring 20 | ||||
| 087 | 267041-1 | Sluitring 20 | € 0.96 | |
| O-ring 20 | ||||
| 088 | 213304-3 | O-ring 20 | € 0.96 | |
| Kamm | ||||
| 089 | 454208-2 | Kamm | € 2.37 | |
| Ventil | ||||
| 090 | 141919-5 | Ventil | € 2.71 | |
| Ventil | ||||
| 091 | 141918-7 | Ventil | € 2.71 | |
| Draadboom | ||||
| 092 | 632A68-0 | Draadboom | € 1.67 | |
| Binnenschild | ||||
| 093 | 454204-0 | Binnenschild | € 41.85 | |
| Schroef 4x35 | ||||
| 094 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Schutzschild | ||||
| 095 | 454209-0 | Schutzschild | € 11.83 | |
| Schroef 4x35 | ||||
| 096 | 266351-3 | Schroef 4x35 | € 0.96 | |
| Drukveer 32mm | ||||
| 097 | 234273-5 | Drukveer 32mm | € 0.96 | |
| Blokkeerplaat | ||||
| 098 | 454215-5 | Blokkeerplaat | € 3.55 | |
| Blokkeerhandel | ||||
| 099 | 454214-7 | Blokkeerhandel | € 3.55 | |
| Scharnierpen 4mm | ||||
| 100 | 268292-9 | Scharnierpen 4mm | € 0.96 | |
| Tapschroef 4x28 | ||||
| 101 | 266257-5 | Tapschroef 4x28 | € 0.96 | |
| Houderplaat | ||||
| 102 | 417587-9 | Houderplaat | € 6.40 | |
| Aansluitmof | ||||
| 103 | 451455-6 | Aansluitmof | € 1.18 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 104 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.96 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 105 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.96 | |
| Haken | ||||
| 106 | 168537-4 | Haken | € 10.51 | |
| Draaghaak | ||||
| 107 | 451545-5 | Draaghaak | € 1.18 | |
| Container | ||||
| 108 | 188828-7 | Container | € 112.29 | |
| Gummiring (1) | ||||
| 109 | 424346-4 | Gummiring (1) | € 3.97 | |
| Schroef 4x12 | ||||
| 110 | 911116-5 | Schroef 4x12 | € 0.96 | |
| Houderplaat | ||||
| 111 | 451546-3 | Houderplaat | € 3.55 | |
| O-ring 56 | ||||
| 112 | 213655-4 | O-ring 56 | € 1.67 | |
| Slangaansluitadapter Vc2510L | ||||
| 113 | 451454-8 | Slangaansluitadapter Vc2510L | € 5.08 | |
| Schroef 4x6 | ||||
| 114 | 911103-4 | Schroef 4x6 | € 0.96 | |
| Erdleitung | ||||
| 115 | 649150-2 | Erdleitung | € 2.71 | |
| Stoot ring | ||||
| 116 | 424270-1 | Stoot ring | € 10.51 | |
| Wielafdekkap | ||||
| 117 | 451643-5 | Wielafdekkap | € 0.97 | |
| Borgring S-20 | ||||
| 118 | 961060-6 | Borgring S-20 | € 0.96 | |
| Sluitring 20 | ||||
| 119 | 267299-2 | Sluitring 20 | € 0.96 | |
| Rad | ||||
| 120 | 451642-7 | Rad | € 25.39 | |
| Verbindungsrohr | ||||
| 121 | 331888-0 | Verbindungsrohr | € 3.55 | |
| Wiel 75mm | ||||
| 122 | 168547-1 | Wiel 75mm | € 8.21 | |
| Harmonicafilter | ||||
| 123 | 141875-9 | Harmonicafilter | € 22.97 | |
| Damper | ||||
| 124 | 423452-2 | Damper | € 5.08 | |
| Voorfilter | ||||
| 125 | 196253-8 | Voorfilter | € 17.75 | |
| O-ring 30 | ||||
| 126 | 213406-5 | O-ring 30 | € 1.18 | |
